8. Note on Qu-SB
 Please refer to the Qu-SB Getting Started Guide AP10287 for an operational
overview of the mixer. The guide can be downloaded from the Allen & Heath
website.
 The following chapters reference the Qu-16, Qu-24, Qu-32 and Qu-Pac
Touchscreens. However the functions listed are also available on Qu-SB and can be
controlled via the Qu-Pad iPad app, often with a similar menu structure. Refer to the
embedded Qu-Pad Help for information on using the app.
9. Processing and Mix Functions
9.1 Channel Naming

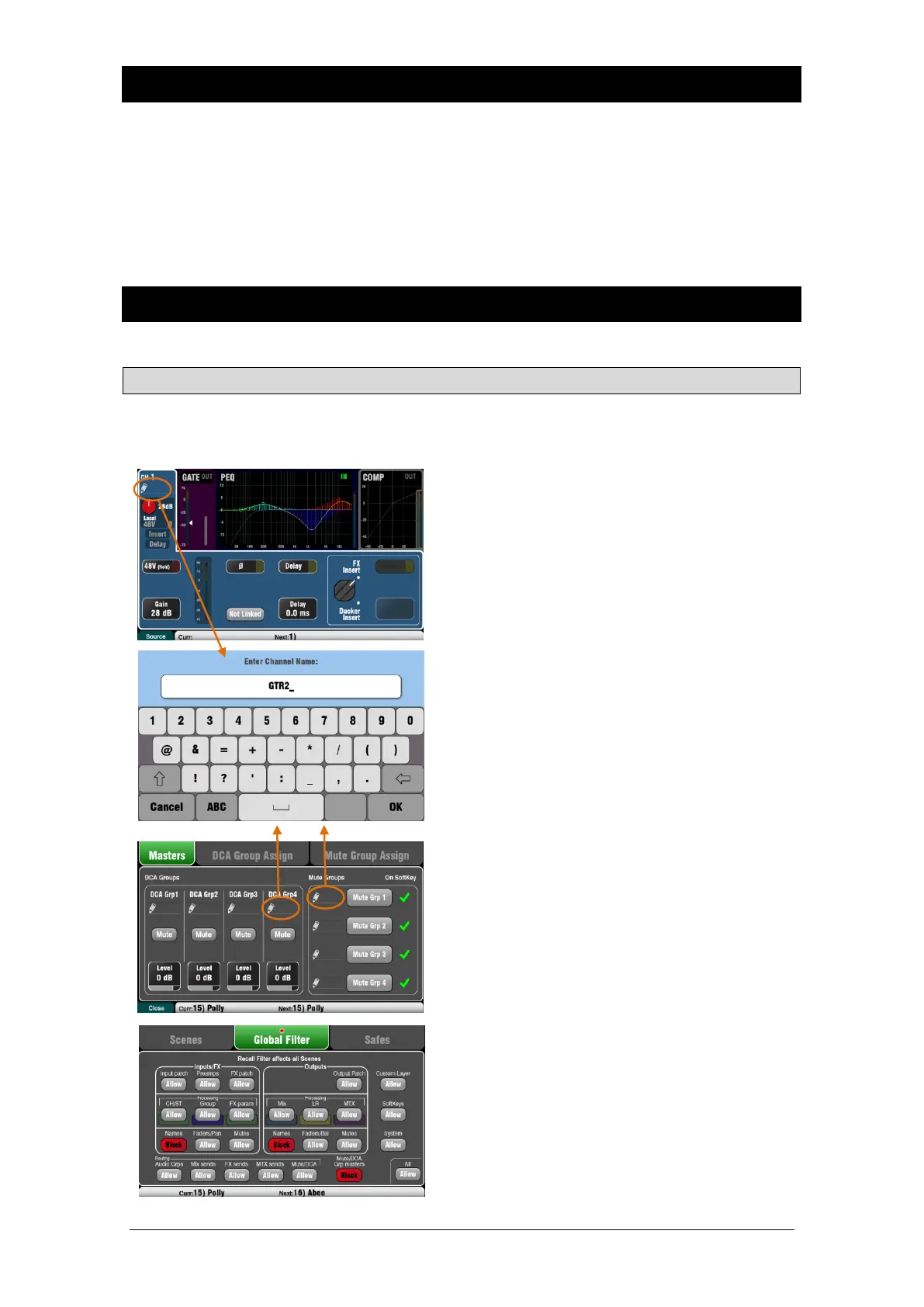

Qu channels, FX, mixes and groups can be named using the screen keypad by touching the pencil icon.
The following can be named: Mono input channels, Stereo input channels, FX Returns, FX Sends, Mix,
LR, Groups, Matrix, Mute Groups, DCA Groups.
Channel names
The name is displayed at the top left of the
Processing and Routing screens. The name can be
edited from the Processing screen.
The pencil icon appears when the name is blank. All
names are cleared when the Qu mixer is reset or the
‘Reset Mix Settings’ scene is recalled.
Touch the name box to open the screen keypad and
edit the name.
Names can have up to 6 characters.
Touch the Shift button to type in an uppercase
character. Touch the button twice for Caps Lock.
Mute and DCA Group names
Open the Routing screen Fn key Mute/DCA page to
view the Mute and DCA Group masters. Their names
are displayed.
Touch a name box to open the screen keypad and edit
the name.
Names in Qu-Pad, Qu-Control and Qu-
You apps
Names stored in the Qu mixer are displayed in the Qu-
Pad, Qu-Control and Qu-You apps. These can also be
edited within the Qu-Pad app.
Names and Scene memories
Names are stored as part of the Qu mixer Scene
memories.
You can block or allow names in Scene recall using
the Global and per scene Filters. Three filter items
affect names:
 Input/FX Names – CH, ST, Groups and FX Returns
 Output Names – FX Sends, Mix, LR, Matrix
 Mute/DCA Grp Masters – Mute and DCA names
