ALLEN & HEATH Qu-32 Reference Guide

Qu Mixer Reference Guide 87 AP9372 iss.9

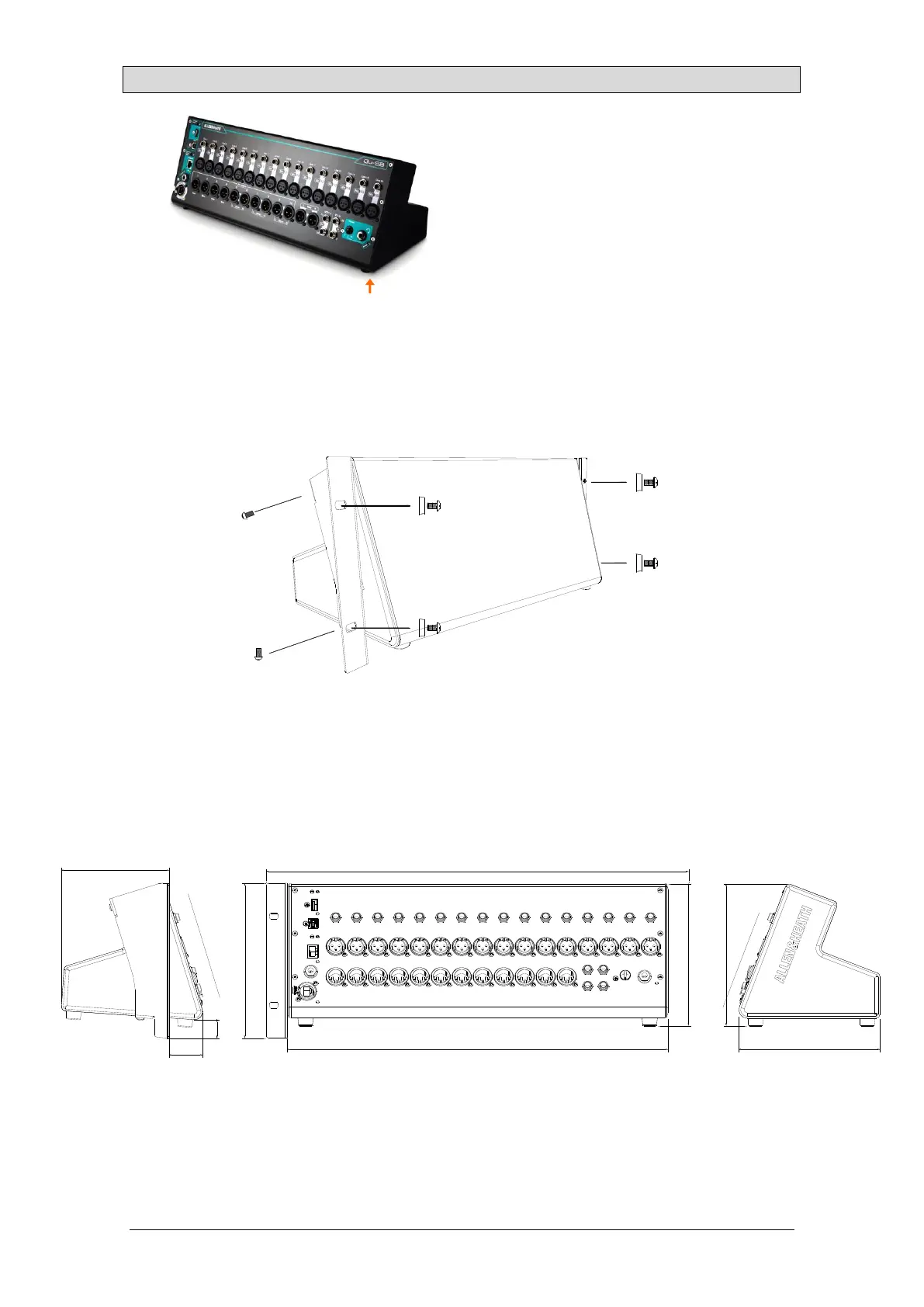

16.3 Installing Qu-SB
Free Standing - For operating while on a
desk, shelf or other flat surface.
Make sure the 4 rubber feet are fitted.
Allow space at the sides and rear for ventilation.
The mixer can be transported in a purpose
designed padded bag or flight case.
Rack Cased - For operating while fitted into a
4U space in a standard 19” equipment rack or
flight case.
The optional kit QU-SB-RK19 is required to
convert from free standing to rack operation. To
fit the rack ears:
 Allow adequate air flow around the ventilation slots at the rear and through the inside section of the
case. Do not block the sides.
Dimensions - Shown in millimetres (inches)
Rubber feet
Fit the rack ears
(AA10262) to the mixer
using the 2x M4x8
(AB0332) screws per
side. Use a Torx T20
driver.
The rubber feet do not need to be
removed. If you do wish to remove them
then unscrew using a Torx T20 driver.
Secure Qu-SB into the rack
using the 2x M6x16 screws
(AB10301) and washers
(AB0345).
161 (6.34") Free Standing
Angle
17 degrees
Rack Mounted
177
(17.32") Free Standing
(7.13")
(6.97") 4U Rack Space
436
162
483
(19") Rack Mounted
162
(6.38")
Angle
21 degrees
38
123
21

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
