ALLEN & HEATH Qu-32 Reference Guide

Qu Mixer Reference Guide 37 AP9372 iss.9

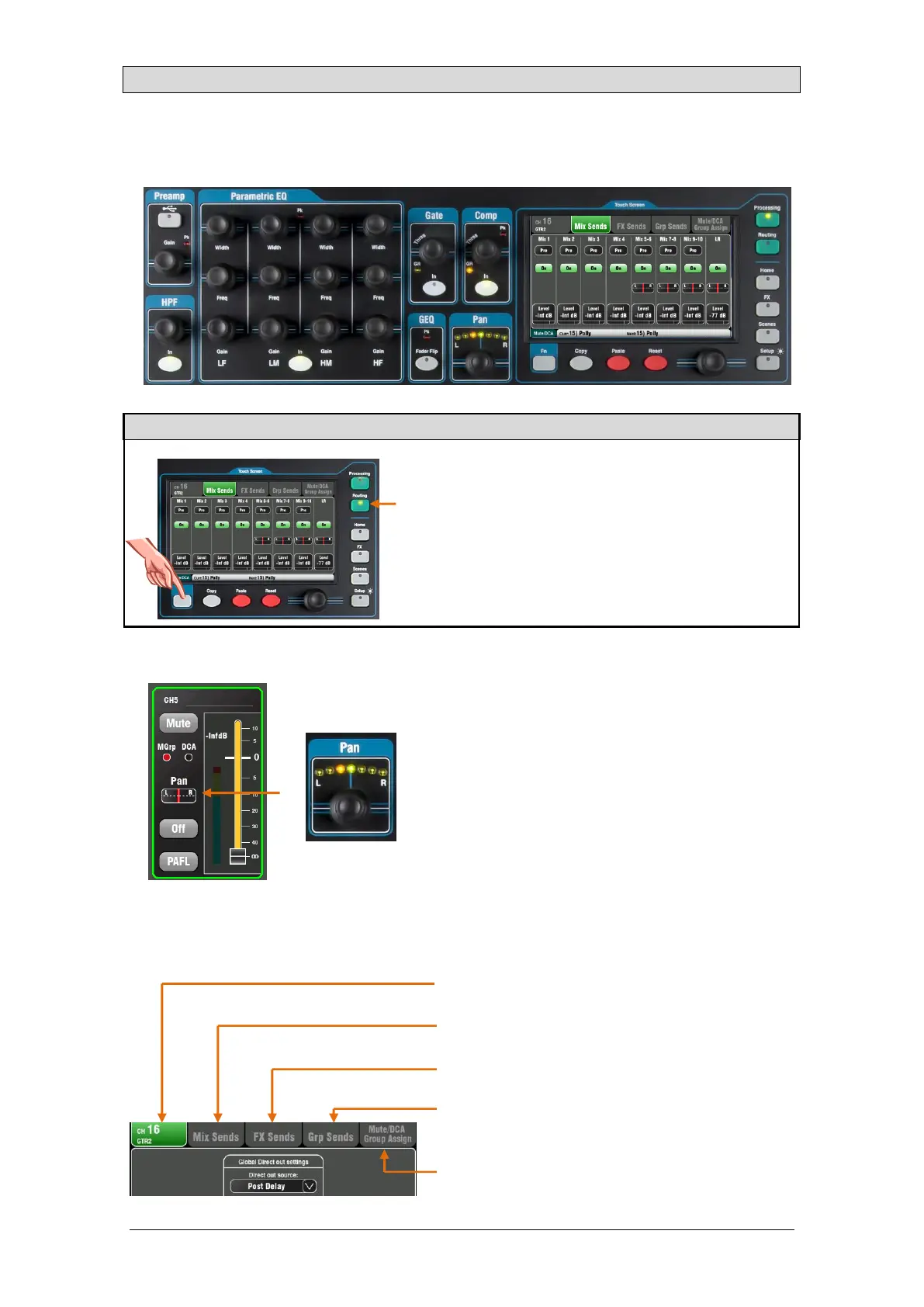

9.7 Channel Routing
The Touch Screen presents tabs to access a CH or ST channel routing assignments and send levels
when its fader strip Sel key is selected and the Touch Screen Routing screen is active. The SuperStrip
Pan control provides quick access to the related mix pan setting for the channel. The Fn key is used to
access the Mute and DCA Group masters while in any Routing screen.
9.8 Working with the Routing screens
 Press a fader strip Sel key.
 Press the Touch Screen Routing key.
 Touch the tabs at the top of the screen.
 Touch screen buttons and use the rotary.
 Press the Fn key to access the Mute and DCA Groups.
Pan
The rotary Pan control becomes active when an input
channel Sel key is active. Its function depends on
currently selected Master Strip mix:
LR = Channel main pan
FX send = Disabled
Group (not Qu-16) = Channel main pan
Mono Mix1-4 = Disabled
Stereo Mix5-10 = Channel send pan
Pan becomes a Width control when linked for two
input channels – Panning one to the left automatically
pans the other by the same amount to the right.
Channel Routing screens
Tabs available on the CH and ST routing screens:
Main tab – Global Direct Output settings. These affect
all channels.
Mix Sends – Assignments, pre/post, levels and pan to
the mono Mixes 1-4 and stereo Mixes 5-6, 7-8, 9-10.
FX Sends – Assignments, pre/post and levels to the
FX mixes (Qu-16 has 2, the other models have 4).
Grp Sends – Assignments to the stereo Groups if they
are in Group Mode, or assignments, levels and pan if
they are in Mix Mode (not on Qu-16).
Mute/DCA Group Assign – Assignments to the Mute
and DCA groups.
Qu-Pac
Qu-16, Qu-24, Qu-32

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
