ALLEN & HEATH Qu-32 Reference Guide

Qu Mixer Reference Guide 72 AP9372 iss.9

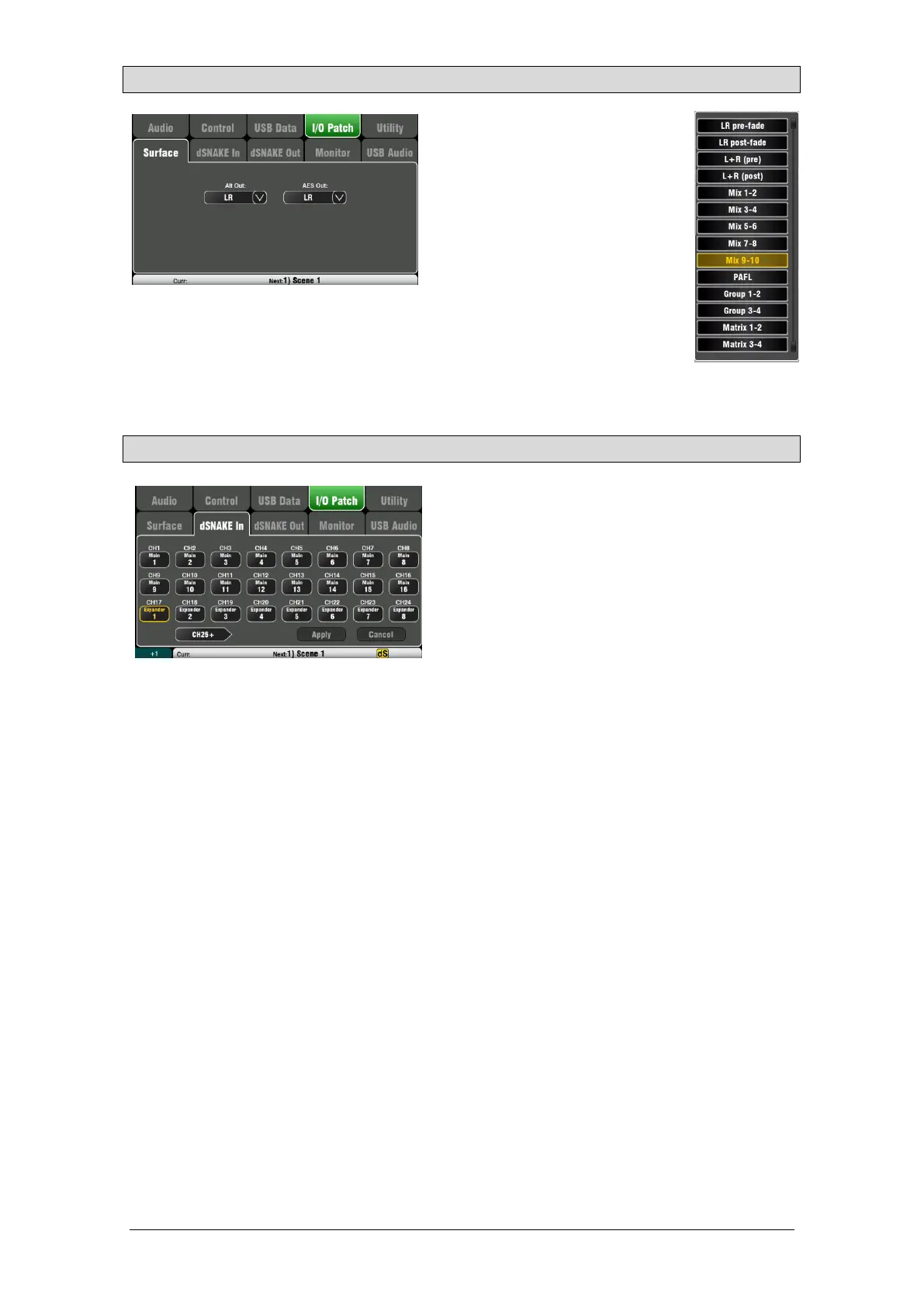

11.14 I/O Patch Setup – Surface
Use this screen to patch signals to
the rear panel Alt Out and AES
outputs. Touch a box to open up the
list of available options. Changes are
applied instantly. You can also touch
outside the list to exit.
Alt Out – Choose the source for the
rear panel stereo Alt Out jacks.
AES Out – Choose the source for
the rear panel AES digital output.
The reset default for both is LR post-
fade.
Group and Matrix outputs are not
available on the Qu-16.
The Alt Out and AES Out are not provided on Qu-SB.
11.15 I/O Patch – dSNAKE In
Use this screen to patch AudioRack input sockets to
the Qu input channels. You can connect up to two
AudioRacks via the dSNAKE Cat5 digital snake.
The button code indicates dSNAKE device:
N/C = No AudioRack is connected
Main = First AudioRack
Expander = Second AudioRack (expander)
Touch a Channel box and turn the screen rotary to
scroll through the dSNAKE socket numbers. These
relate to the AudioRacks currently connected, or to the
dSNAKE channels if no AudioRack is found.
Any AudioRack socket can be patched to any channel.
A socket can be patched to more than one channel. A
channel can only have one socket patched to it.
Touch Apply to confirm changes.
The reset default for the Qu-16, Qu-24 and Qu-32
models is one-to-one mapping of sockets to channels.
The reset default for Qu-SB and Qu-Pac is:
CH1-16 = Local 1-16,
CH17-32 = dSNAKE 1-16
This is because Qu-Pac and Qu-SB can be used as a
stage rack with their 16 local inputs as the source to
CH1-16. One AudioRack connected to the dSNAKE
port could feed CH17-32 to provide the full 32
channels.
Input patching is stored in Scene memories.

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
