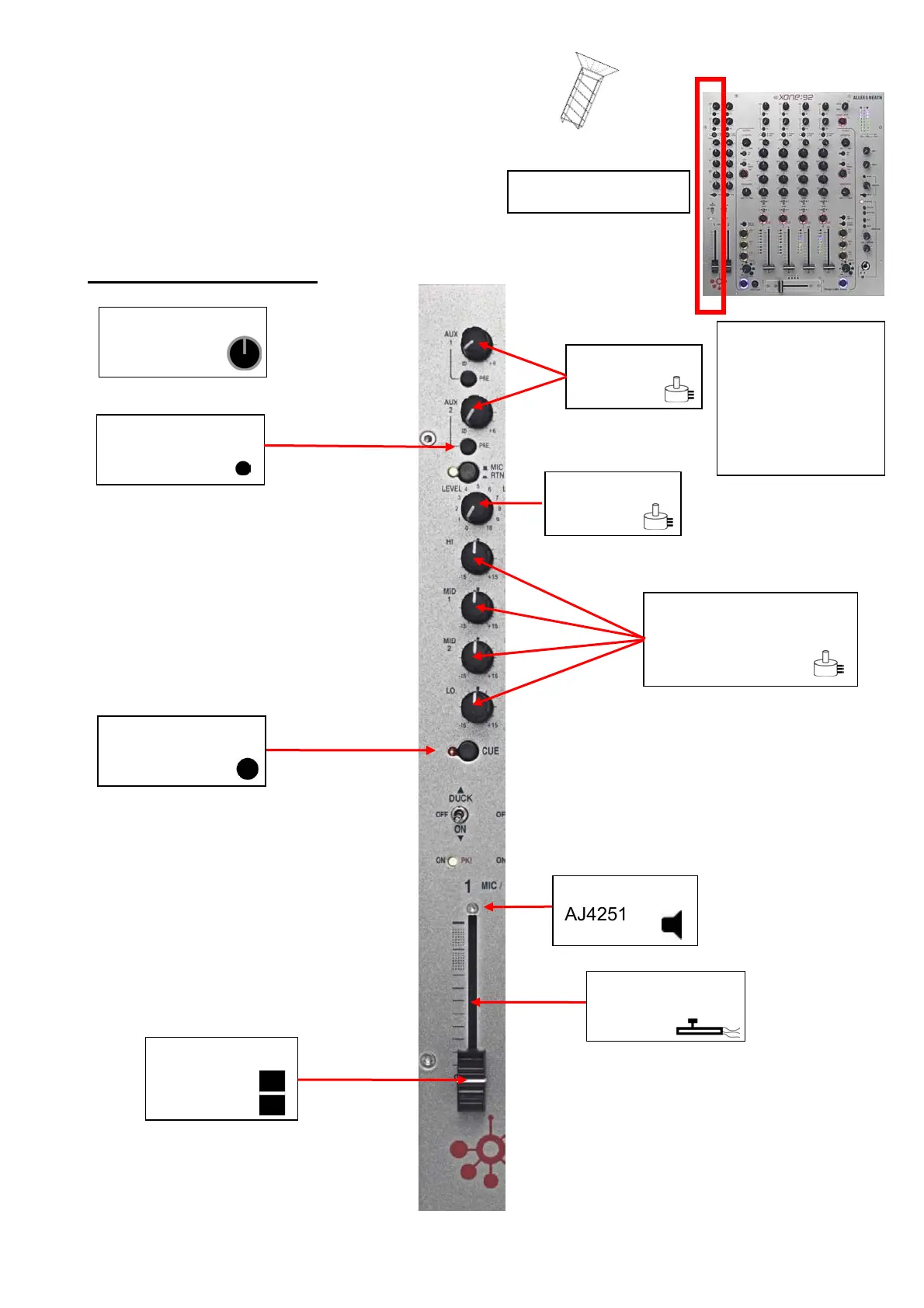

ALLEN&HEATH Xone:92 parts identification inc storm grey Issue 3 Page 2 of 9
Screw AB3818 top panel to chassis SILVER.
Screw AB3329 top panel to chassis STORM GREY.
Screw AB3819 fader & x-fader SILVER.
Screw AB0070 fader & x-fader STORM GREY.
POTS FADERS & KNOBS:
MIC/RTN channel
Knob small black
AJ5386
Large switch cap
AJ4251
Small switch cap
AJ5388
MIC/RTN fader
knob
AJ4310
Aux pot
AI8007
Level pot
AI8007
EQ
HI, MID1, MID2, LO
AI8006
Fader screw
AJ4251
MIC/RTN fader
002-684
Front panel
Silver AA5319
Storm grey
AA7581
AB3329
