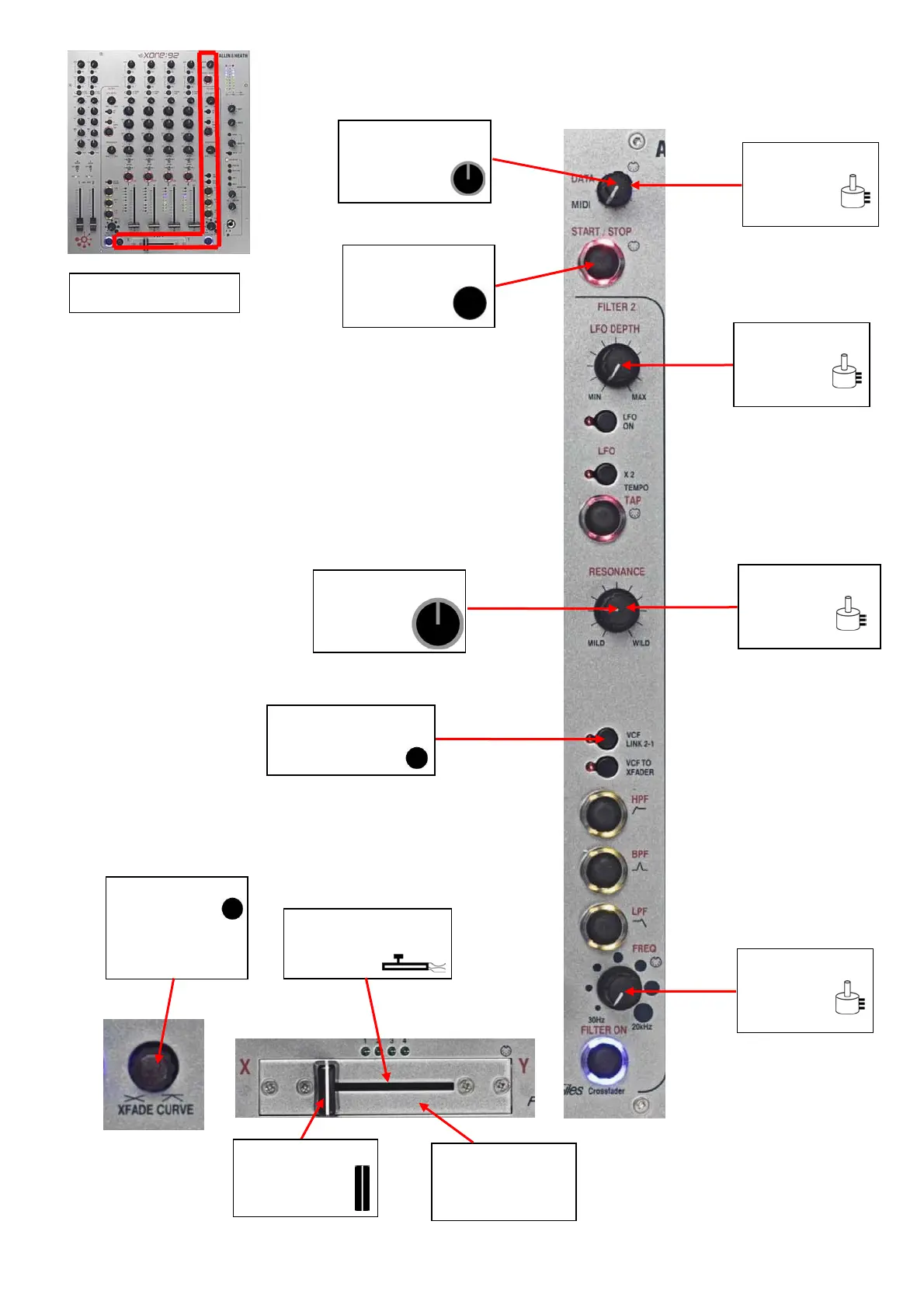

ALLEN&HEATH Xone:92 parts identification inc storm grey Issue 3 Page 3 of 9
X-fader & filters
Black knob
small
AI5386
DATA, MIDI
pot
AI8004
Black button
AI5325
Black knob
large
AI5387
Large switch cap
AJ4251
LFO DEPTH
pot
AI8003
RESONANCE
pot
AI8007
FREQ pot
AI8003
Xone x-fader
knob
AJ4251
Xfade curve
very small
black knob
AJ5558
X-fader
002-719
Fader plate
storm grey
AA7492
