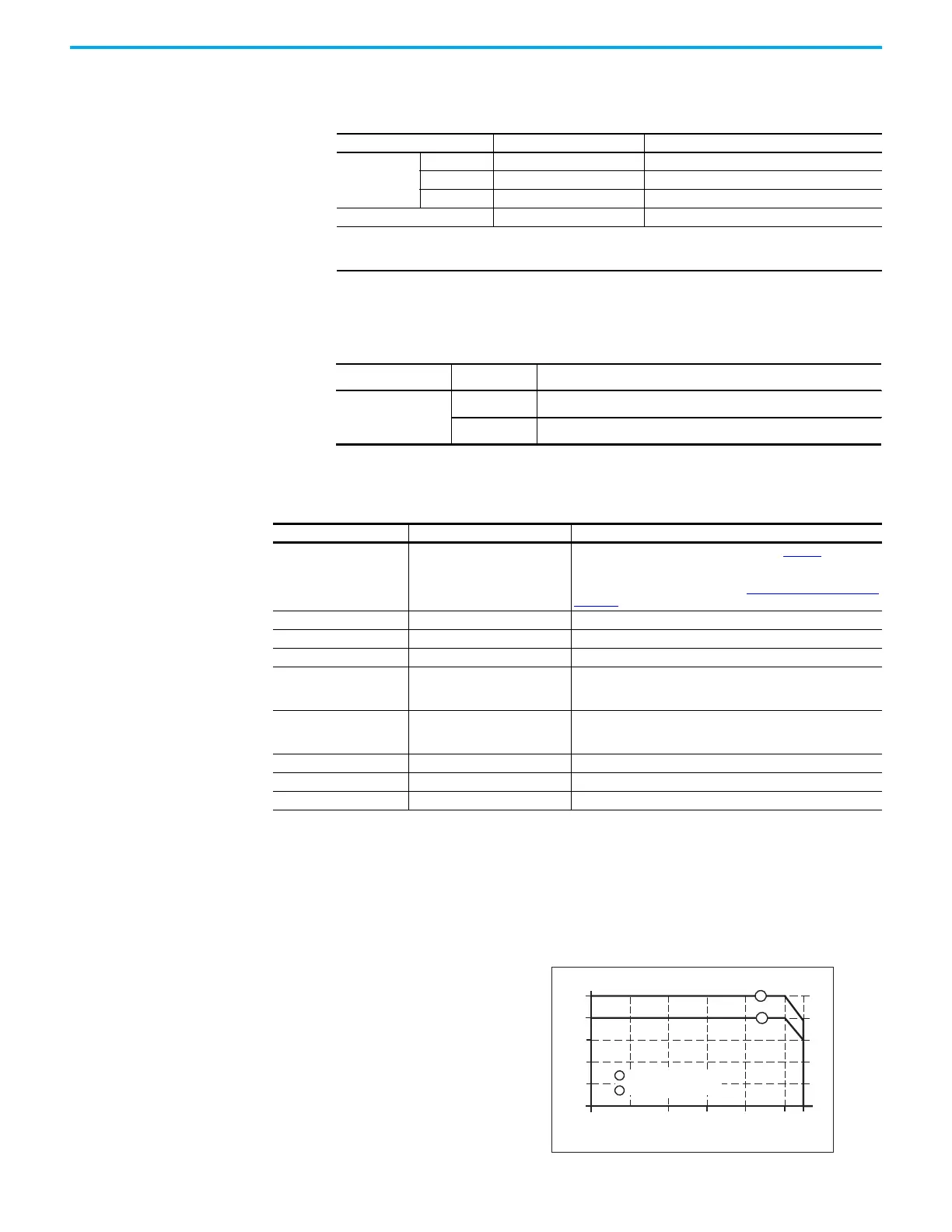

24 Rockwell Automation Publication 1606-RM008A-EN-P - November 2021
DC-UPS - 24V, 20 A, 480 W Reference Manual
EMC emission information is provided in the following table. According
generic standards: EN 61000-6-3 and EN 61000-6-4.
Switching frequency information is provided in the following table. The DC-
UPS has four converters included, three operate with the same switching
frequency.
Environment
Attributes Standards Notes
Conducted
emission
Input lines IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 limits for DC power ports acc. EN 61000-6-3 fulfilled
O
utput lines
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 limits for DC power ports acc. EN 61000-6-3 fulfilled
B
attery lines
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Not relevant due to short wire length
Radiated emission EN 55011, EN 55032 Class B
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Attribute Values Notes
Switching Frequency
100 kHz Buck-booster converter and battery charger
45…80 kHz Auxiliary converter, switching frequency is input voltage dependent
Attributes Values Notes
Operational temperature
(1)
-40…+70 °C (-40…+158 °F)
Reduce continuous output current according See Figure 18
.
The operational temperature range can be reduced by the battery
specification. The DC-UPS includes some safety features, which reduce
the temperature range for charging. See Batteries and Battery Charging
on page 13
Storage temperature -40…+70 °C (-40…+158 °F) For storage and transportation
Output derating 2.5%/°C Between 60…70 °C (140…158 °F)
Humidity 5…95% r.H. IEC 60068-2-30. Do not energize while condensation is present.
Vibration sinusoidal
(2)
2…17.8 Hz: ±1.6 mm (0.063 in.)
17.8…500 Hz: 2 g
2 hours / axis
IEC 60068-2-6
Shock
(3)
30 g 6 ms, 20 g 11 ms
3 bumps
/
direction
18 bumps in total
IEC 60068-2-27
Altitude Up to 6000 m (20,000 ft) Approvals apply only up to 2000 m
Overvoltage category II IEC 62103, EN 50178, EN 60950, UL 840
Degree of pollution 2 IEC 62103, EN 50178, not conductive
(1) Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 2 cm below the unit.
(2) Higher levels are allowed when using a wall mounting bracket (catalog number 1606-XLC).
(3) Shock and vibration are tested in combination with DIN rails according to EN 60715, with a height of 15 mm (0.59 in.) and a thickness of 1.3
mm (0.05 in.). These tests are performed with the power supply in standard mounting orientation.
Figure 18 - Continuous Output Current vs. Ambient
Temperature
0
-40 0 40
60
5
10
15
20
25A
Ambient Temperature
70°C
a
b
Power Supply Mode
Battery Mode
a
b
20-20
Allowable Continuous Output Current
