Allen-Bradley DC-UPS User Manual

Rockwell Automation Publication 1606-RM008A-EN-P - November 2021 29
DC-UPS - 24V, 20 A, 480 W Reference Manual
Accessories
(a)
Wall-Mounting Bracket - 1606-XLA-S44
This bracket is used to mount the DC-UPS onto a flat surface without using a
DIN rail.
Side-Mounting Bracket -1606-XLC
This bracket is used to mount the device sideways with or without using a DIN
rail. The two aluminum brackets and the black plastic slider of the unit have to
be detached, so that the steel brackets can be mounted. For sideway DIN rail
mounting, the removed aluminum brackets and the black plastic slider must
be mounted on the steel bracket.
(a) Power supply that is shown is for illustration purposes only.

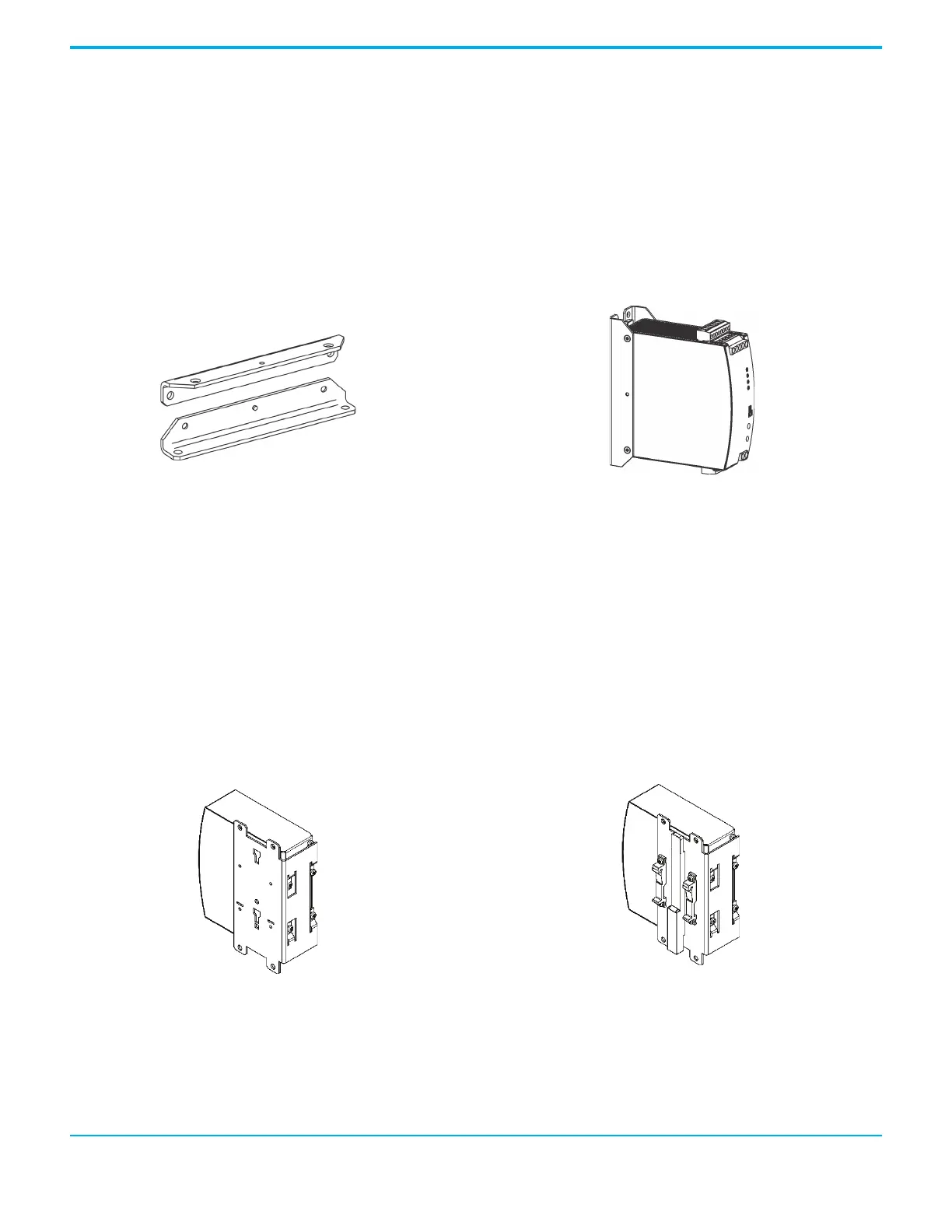

Figure 22 - Wall Mounting Bracket Figure 23 - Wall Mounting with DIN Rail Brackets
Figure 24 - Side Mounting Bracket Figure 25 - Side Mounting with DIN Rail Brackets
