Produce and Consume a Tag
Rockwell Automation Publication 1756-PM011J-EN-P - February 2018 29

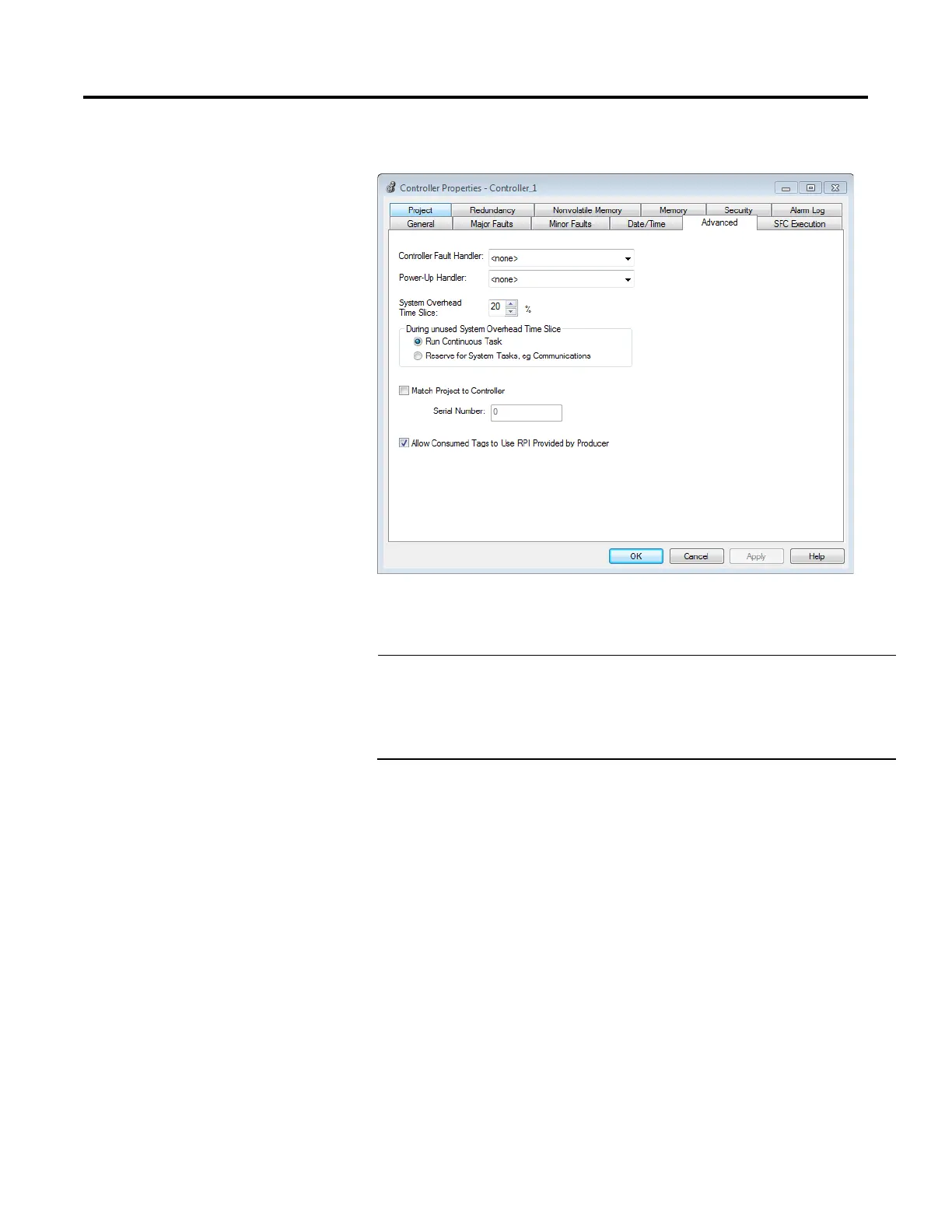

2. Click the Advanced tab.
3. Select the Allow Consumed Tags to Use RPI Provided by Producer
check box to allow for the RPI negotiation.
Important:
The check box is only available when the controller is offline. If the
check box is not checked, the consuming controller does not
accept the RPI provided by the producer if the consuming
controller requests an RPI that is out of the producer’s configured
RPI range. As a result, an out-of-range RPI request results in a
failed connection.
4. Click OK.
When a consuming controller accepts a default RPI by a producing
controller, you can verify the acceptance and the RPI value on the
Consumed Tag Connection dialog box.
Before you begin:
• The controller must be online and the consumed tag is connected with
the producer providing the RPI.
To verify consumed tag acceptance and RPI value:
1. In the Controller Organizer, right-click the Controller Tags folder
and click Edit Tags.
tag acceptance
