5-18 Installing and Replacing Components

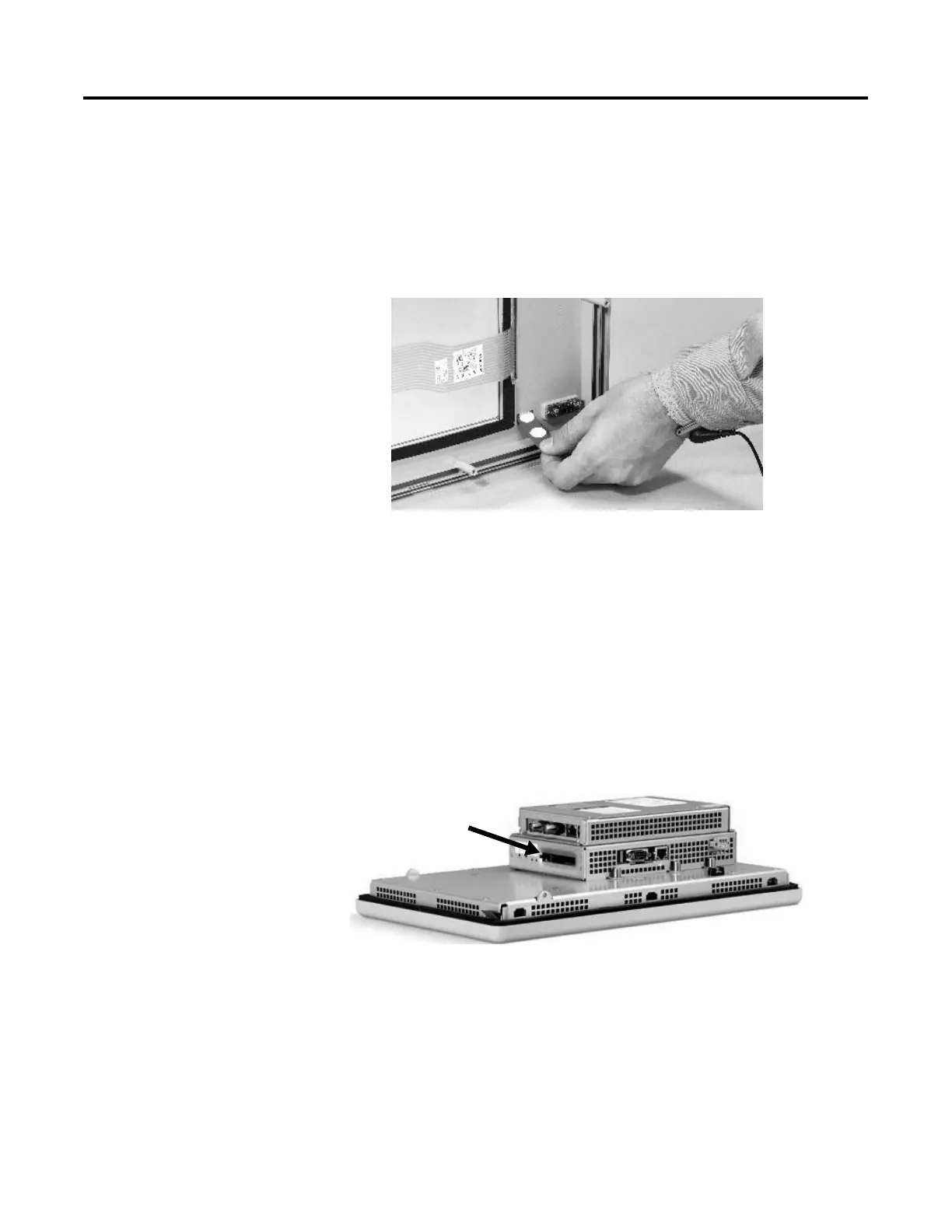

To replace the K1-K22 function key legends:
1. Remove power from the terminal.
2. Remove the Display Module bezel as described on page 5-11.
3. Pull the legend inserts out from the slots on the lower part of the
bezel.
4. Insert and slide the new legend strips into the same slots until
only the end tab is visible.
5. Replace the Display Module bezel as described page 5-12.
Using an External Compact
Flash Card
The PanelView Plus terminal has a Compact Flash Card slot which
supports Type I/II Compact Flash cards. The cards (2711P-RCx) are
available in different memory sizes.
The card slot is located on the side of the Logic Module.
Compact Flash Card Slot
