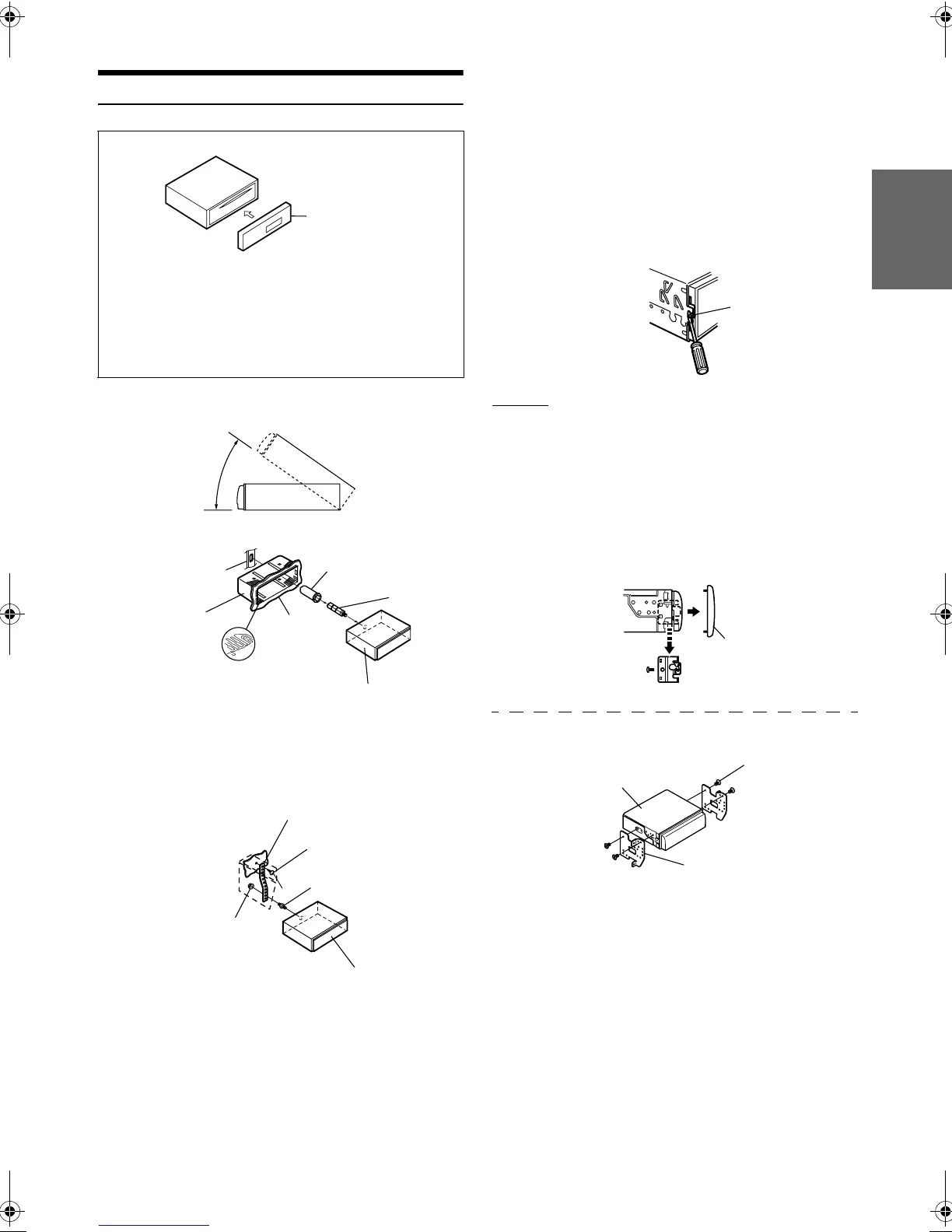

Installation
• The main unit must be mounted within 35 degrees of the horizontal
plane, back to front.
Removal
1. Remove the detachable front panel.
2. Use a small screwdriver (or similar tool) to push the
locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.
3. Pull the unit out, keeping it unlocked as you do so.
<JAPANESE CAR>
Caution
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
1
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
Remove the mounting sleeve from the main unit (see
“Removal” on page 25). Slide the mounting sleeve
into the dashboard and fix it with the metal shackles.
2
When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the CDE-9873RB/
CDE-9871R/CDE-9871RR and put the Rubber Cap on
the hex bolt. If your vehicle does not have the
Mounting Support, reinforce the head unit with the
metal mounting strap (not supplied). Connect all
other leads of the CDE-9873RB/CDE-9871R/
CDE-9871RR according to details described in the
CONNECTIONS section.
Detachable
Front Panel
Less than 35°
Bracket
Hex Bolt
(Included)
This unit
Pressure Plates*
Rubber Cap
(Included)
Mounting Sleeve
(Included)
Dashboard
∗
Metal Mounting Strap
Screw
Bolt Stud
This unit
Hex Nut (M5)
• For the screw *, provide a proper screw to the chassis installing
location.
3
Slide the CDE-9873RB/CDE-9871R/CDE-9871RR into
the dashboard. When the unit is in place, make sure
the locking pins are fully seated in the down
position. This can be done by pressing firmly in on
the unit while pushing the locking pin down with a
small screwdriver. This ensures that the unit is
properly locked and will not accidentally come out
from the dashboard. Install the detachable front
panel.
Lock Pin
Front Frame
Screws (M5 × 8)
(Included)
This unit
Mounting Bracket
