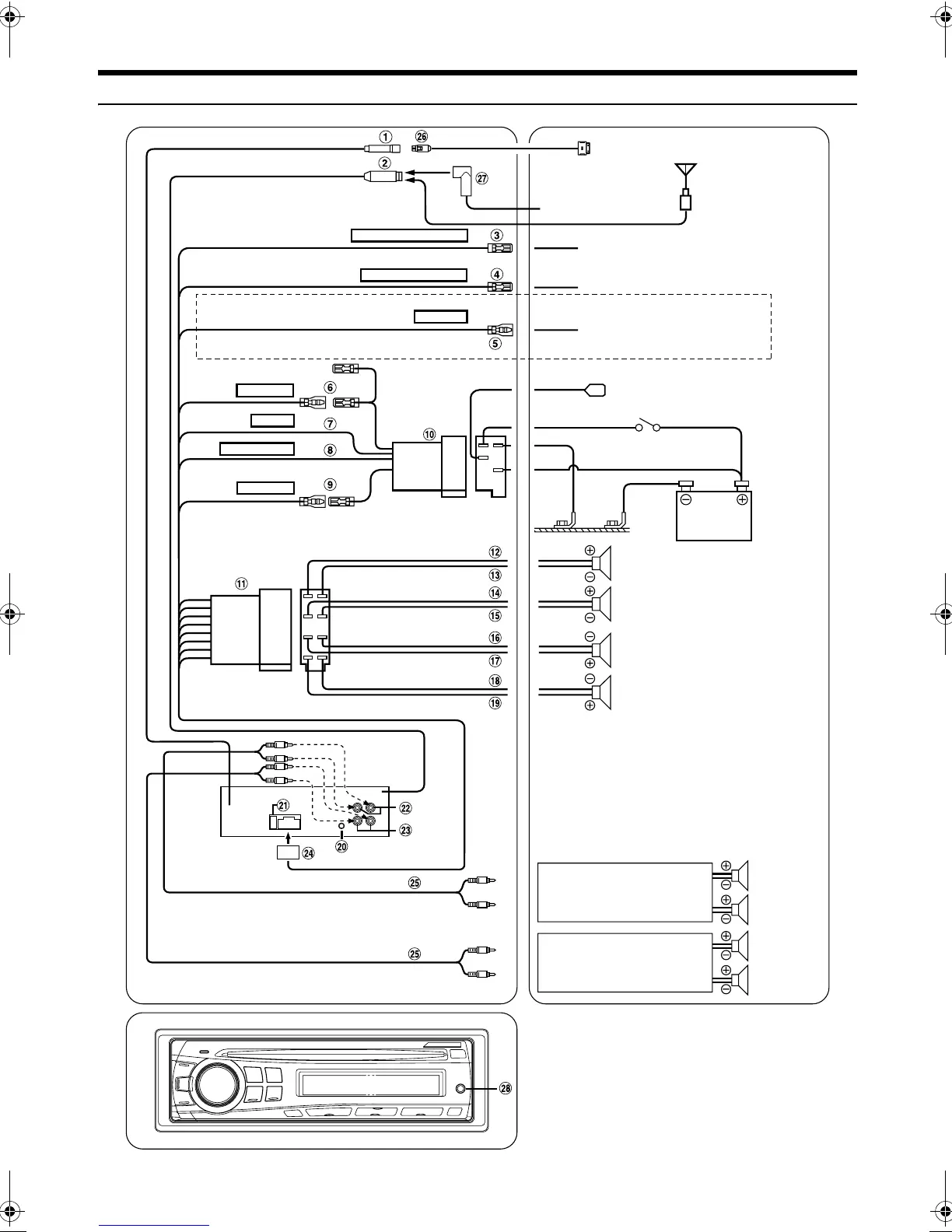

Connections
Antenna
(Pink/Black) AUDIO INTERRUPT IN
(Blue/White) REMOTE TURN-ON
(Orange) DIMMER
(Red) IGNITION
(Black) GND
(Blue) POWER ANT
BATTERY
(Green)
(Green/Black)
(Grey/Black)
(White/Black)
(Grey)
(Violet/Black)
(Violet)
JASO Antenna Plug
ISO Antenna Plug
To vehicle phone
To amplifier or equalizer
To the instrument cluster
illumination lead
To power antenna
Ignition Key
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Amplifier
Front Left
(White)
(Yellow)
To iPod
Speakers
CDE-9873RB only
Amplifier
Front Right
Rear or
Subwoofers
CDE-9873RB only
