GND wire on the AXlink/PWR connector when using a separate 12 VDC power supply. Do not
connect the PWR wire to the AXlink connector’s PWR (+) opening.
Relay connections
Connect up to eight independent external relay devices to the 16-pin RELAYS connector. Use A for
common and B for output. Each relay is isolated and normally open. A metal connector strip is also
provided to common multiple relays.
IR/SERIAL/DATA connections
Connect up to six IR, IR/Serial, and/or DATA (transmit only, 0 - 5 VDC levels only) devices to the
12-pin IR/SERIAL/DATA connector shown in FIG. 8. You can connect a CC-IRC Infrared Emitter,
external serial device with a 2-pin captive-wire. You can also connect a data 0 - 5 VDC device.
Input/Output connections
Connect up to six Input/Output (I/O) devices to the INPUT/OUTPUT 8-pin connector, as shown in
INPUT/OUTPUT 8-pin (male) connector section on page 7. A contact closure between GND and
an I/O port is detected as a PUSH. When used for a voltage input, the I/O port detects a low (0 - 1.5
VDC) as a PUSH, and a high signal (3.5 - 5 VDC) as a RELEASE. When used for an output, each
I/O port acts as a switch to GND and is rated at 200 mA @ 12 VDC.
 +12V - 12 VDC power output for PCS Power Current Sensors, VSS2 Video Sync
Sensors, or similar I/O-type equipment
 I/O 1 - 6 - Six I/O ports
 GND - Common ground shared with I/O ports 1 - 6

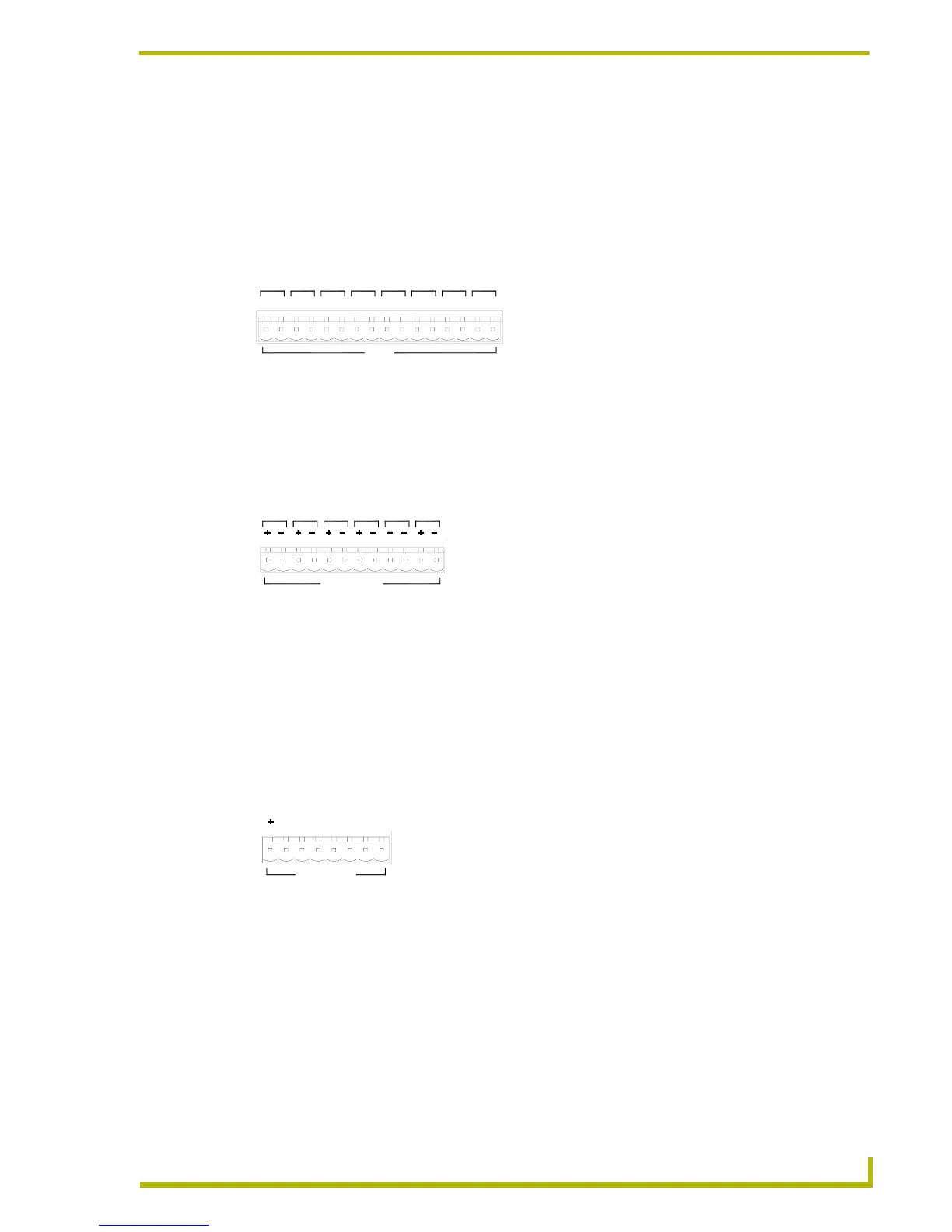

FIG. 7 RELAY 16-pin connector
FIG. 8 IR/SERIAL/DATA 12-pin connector
FIG. 9 INPUT/OUTPUT 8-pin (male) connector
6
A
B
8
A
7
BB
RELAYS
B
A
B
5
A
4
AA
B
3
A
2
BB
1
A
6
IR / SERIAL / DATA
5 4 3 2 1
I / O 5
INPUT / OUTPUT
12V
I / O 6 I / O 4 I / O 3 I / O 2
GND
I / O 1
