Modero G5 Touch Panels - Installation & Hardware Reference Manual
14
| TOC
MD-1002 (Wall Mount-Landscape)

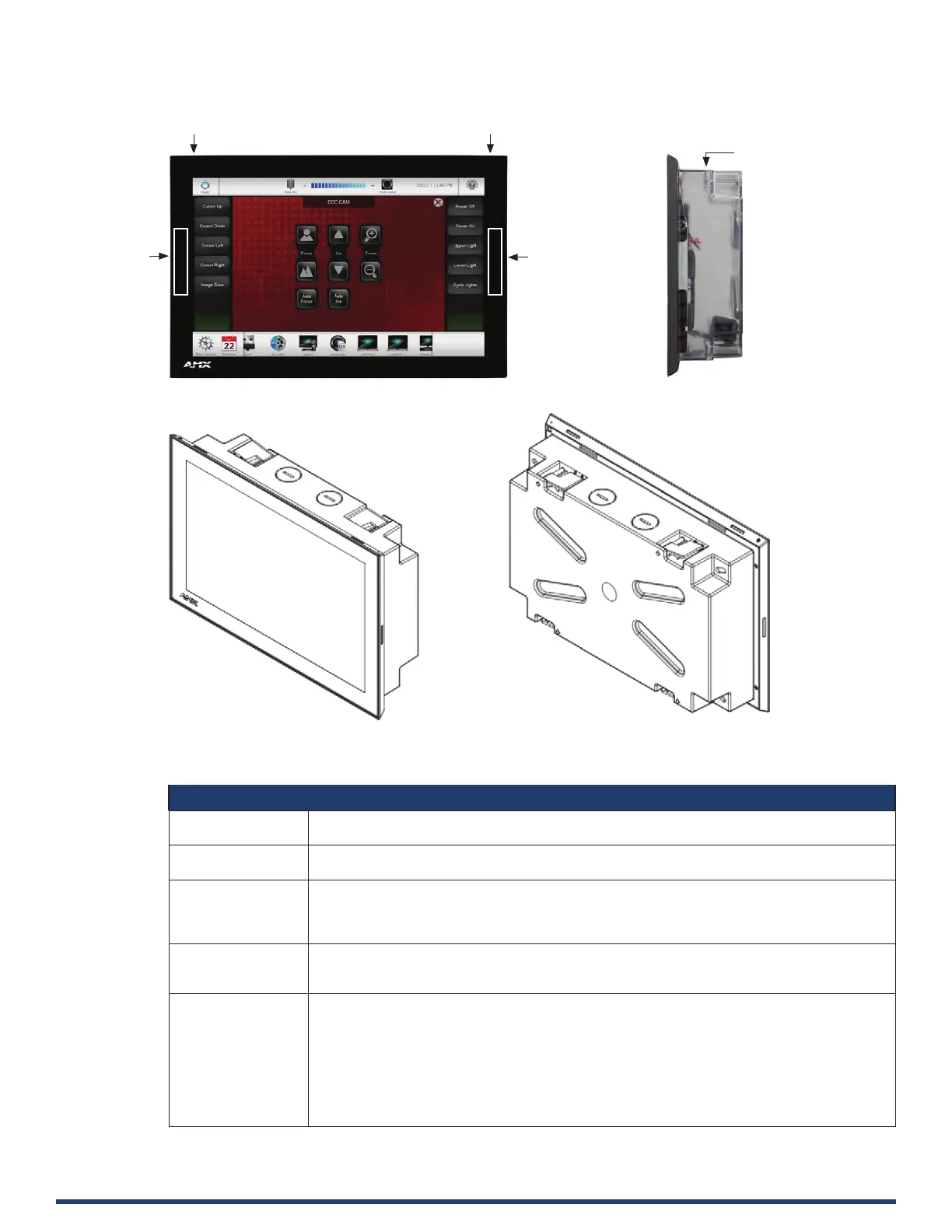

FIG. 7 MD-1002
FIG. 8 MD-1002 front and rear isometric views
MD-1002 Specications
MD-1002 Specications
Dimensions with
backbox (HWD)
6 13/16” x 10 1/16” x 2” (174mm x 255mm x 51mm)
Note: See FIG. 9 on page 16 for details.
Weight • 1.95 lbs (.885 Kg), with Backbox
• 1.5 lbs (.680 Kg), without Backbox
Power Consumption • Full-On: 14.5 W
• Standby: 5.8 W
• Shutdown: 1 W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power
Supply Required
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AT-TC, PoE Injector, 802.3AT Compliant (FG423-84)
• NXA-ENET8-POE+, Gigabit PoE Ethernet Switch (FG2178-64)
Certications • FCC Part 15 Class B
• AUS/NZ
• EN 55032:2012/AC:2013 Class B
• CISPR32:2015
• IEC/EN-60950
• KN32 Class B
• CAN-ICES-3(B)/NMB-3(B)
• UL 60950-1
• RoHS/WEEE compliant
Microphone
Sleep Button
Left LED
Right LED
Backbox
(side view)
