Modero G5 Touch Panels - Installation & Hardware Reference Manual
25
| TOC
Installing Wall-Mount (MD) Panels
Overview
Modero wall mount touch panels can be installed via several mounting options.
• Use the included clear plastic Backbox to attach the panel to most standard wall materials, or in tandem with the
MSA-RMK-xx Rack Mount kit.
• Other optional AMX mounting solutions include the MSA-MMK-xx Multi Mount Kit, the MSA-AMK-xx Any Mount Kit, and the
CB-MXSA-xx Rough-In Box. Refer to the Quick Start Guide included with each mounting kit for instructions.
A Note About Wall and Rack Installation
Some products are installed in areas of diering temperature and cooling methodologies. These include products installed in
walls, racks, cabinets, etc. Those areas may have dierent temperatures and/or cooling approaches that must be taken into
consideration to maintain the product within the specied operating temperature.

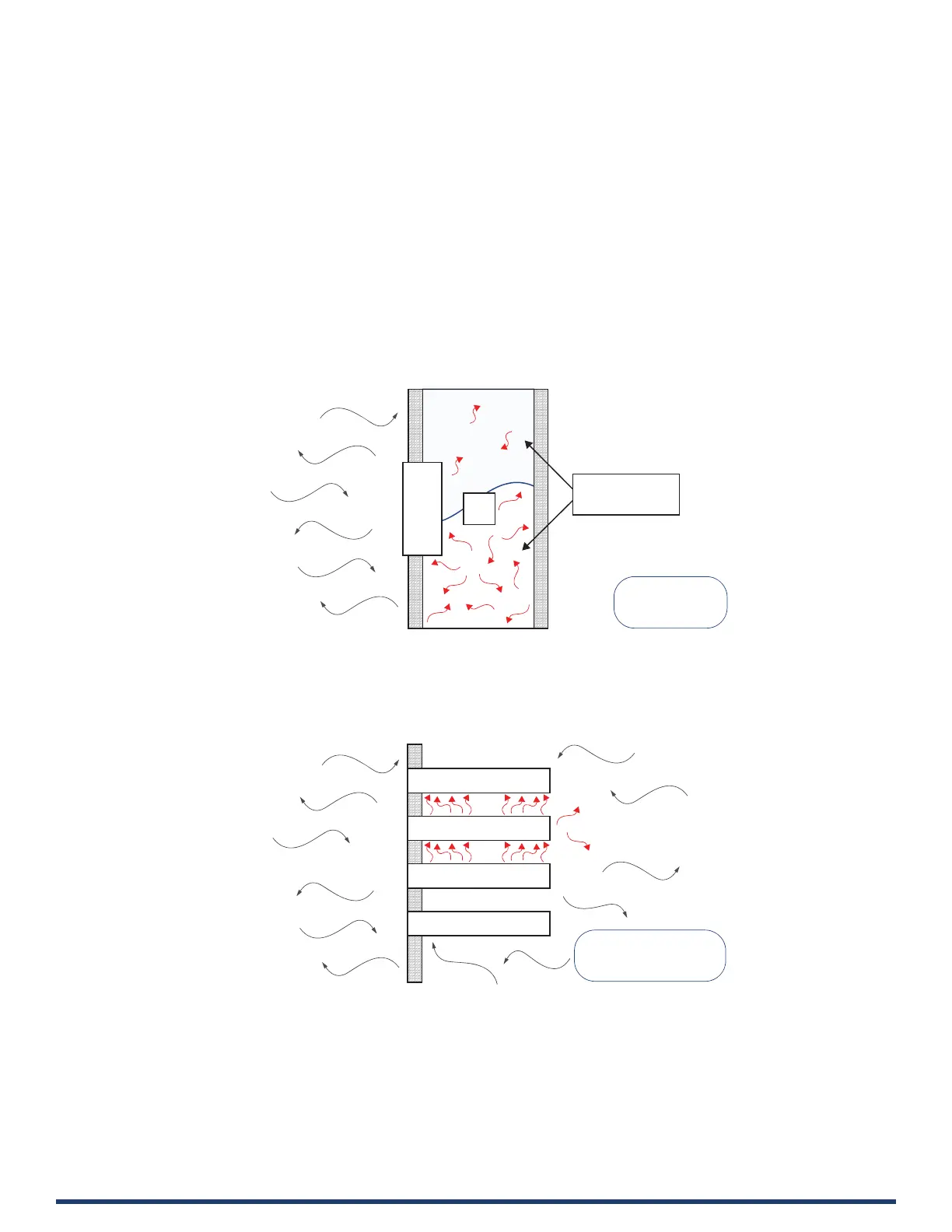

FIG. 18 shows an AMX device installed in a wall with a lled volume (such as with insulation or concrete), as well as with a closed
volume (such as between studs in an otherwise nished wall). The diagram shows how heat generated by the device or other
devices may have no way to escape, and may build up to levels that may aect device operation.
FIG. 18 Heat convection in lled or closed volume, limited or no convection
In FIG. 19, the diagram displays an AMX device in a typical rack mounting, with full air circulation around the front and back
of the device. In this case, the main concern is with heat building up between components, possibly to levels that may aect
device operation.
FIG. 19 Heat convection in rack-mounted devices
T1
AMX DEVICE
T3
T4
T2
AC M TED DEVICE
T1 T2 T3 T4 T M
T1 T2 T3 T4 T M
AMX DEVICE
IED C ED
V ME IMIED
C VECI
M
M
