MXD/T-1000 10.1" Modero® X Series Touch Panels
3. On the leftmost amber button, select between Rand (images display at random) and A-Z (images display
in alphabetical order based on the name of the file).
4. The four grey buttons allow scrolling through saved images and the rate of display:
The Previous Image Saved button returns the display to the first image uploaded by Page View.
The Stop button stops Page View and returns to the default panel page.
The Pause/Resume button allows the display to stop on one particular image. Press it again to
resume the display procession.
The Next Image Saved button returns the display to the last image uploaded by Page View. If the
panel has not accessed all of the images available on a USB drive, Page View will display the last
one uploaded to date.
5. On the rightmost red button, select the number of seconds a selected image will be displayed in Picture
View. This may be selected between 5, 10, 15, 30, and 60 seconds.
6. The counter beneath the buttons displays the number of images currently uploaded by the MXT-1000
versus the number detected on the USB drive.
Preview Mode and Normal Mode
Picture View has two modes: Preview Mode and Normal Mode. Preview Mode allows the user to configure
Picture View. Once a USB drive containing images is inserted into the panel, the images will begin to display.
Touching any place on the display will result in the configuration popup to slide from the bottom of the
display.
Picture View goes into its Normal Mode when the MXT-1000 goes into idle timeout while connected to a USB
drive. Normal Mode displays images until the touchscreen is touched, or some other wakeup event is detected.
When the device goes back into timeout, Normal Mode will return to displaying images until the USB drive is
removed from the device.

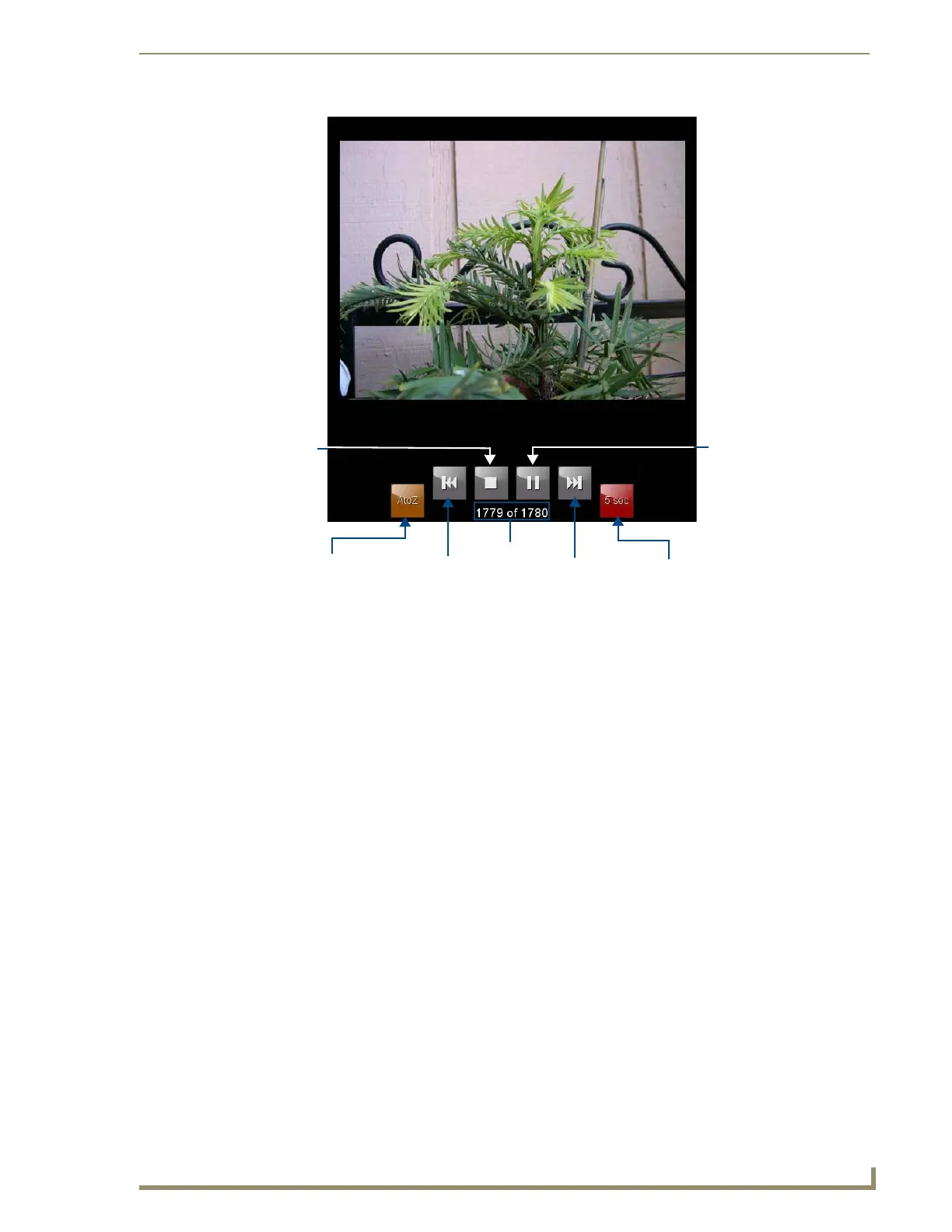

FIG. 8 Picture View configuration popup menu
Previous image
saved
Stop
Pause/
Next image
saved
Counter
Resume
Random/
A-Z
Timer
