Installation
15
MXD/T-1000 10.1" Modero® X Series Touch Panels
Installing the MXD-1000 into a wall
The MXD-1000 comes with a clear plastic backbox (designed to attach the panel to most standard wall
materials. This backbox has four locking tabs (two on top and two on bottom) to help lock the backbox to the
wall. These locking tabs are only extended AFTER the backbox is inserted into the wall. (FIG. 13 and
FIG. 14).
When installing the backbox, make sure that the assembly is in the correct position
and in the correct place. Once the locking tabs are extended and locked into place,
removing the backbox may be difficult without having access to the back of the wall
or causing damage to the wall.
For typical mounting surfaces, such as drywall, use the locking tabs as the primary
method for securing the back box to the surface. For thin walls or solid surfaces, use
mounting screws (not included).

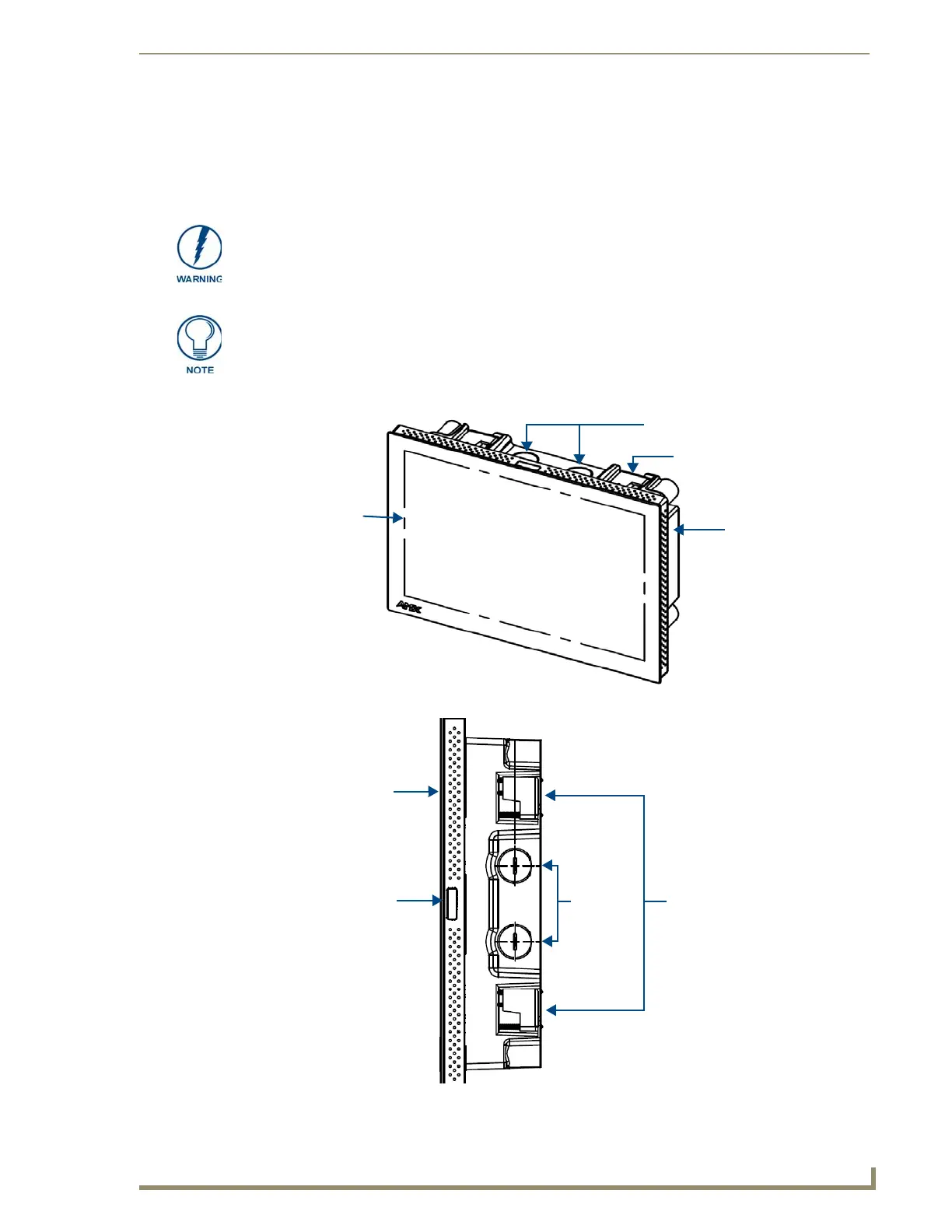

FIG. 13 Side view of MXD-1000 (Landscape)
FIG. 14 Side view of MXD-1000 (Portrait)
MXD-1000
(front)
Back box
Back box knockouts
Locking tab
Back box
knockouts
Locking tabs
MXD-1000
(front)
Sleep
Button
