Installation
14
MXD/T-1000 10.1" Modero® X Series Touch Panels
To disconnect and reconnect the MXT-1000’s Ethernet cable to allow use of a hole smaller than 1.00” in
diameter:
1. On a soft surface, turn the MXT-1000 face-down to access the bottom of the device.
2. Remove the clamp holding the Ethernet cable (FIG. 11) until the Ethernet cable moves freely.
3. Remove the Ethernet cable connector and pull the cable out of the clamp.
4. Pass the Ethernet cable (ECA5968-05) through the hole, with the RJ45 connector on the other side of the
installation surface from the device.
5. Press the Ethernet cable back into the clamp. Do NOT tighten the clamp at this time.
6. Using a nonconductive item such as a wooden stick, reinsert the Ethernet cable connector into the device.
Use the stick to ensure that the connector is properly seated.
7. Tighten the clamp to secure the Ethernet cable. Make sure the clamp is around the bundled black cable,
not the individual wires
8. Connect the RJ45 connector to its incoming Ethernet cable and apply power.
MXD-1000 Installation
The MXD-1000 may be installed directly into a solid surface environment, using either solid surface screws or
the included locking tabs for different mounting options. Once installed, the MXD-1000 is contained within a
clear outer housing known as the back box (FIG. 12). This back box is removed when installing the device into
a wall or into a Rough-In Box.

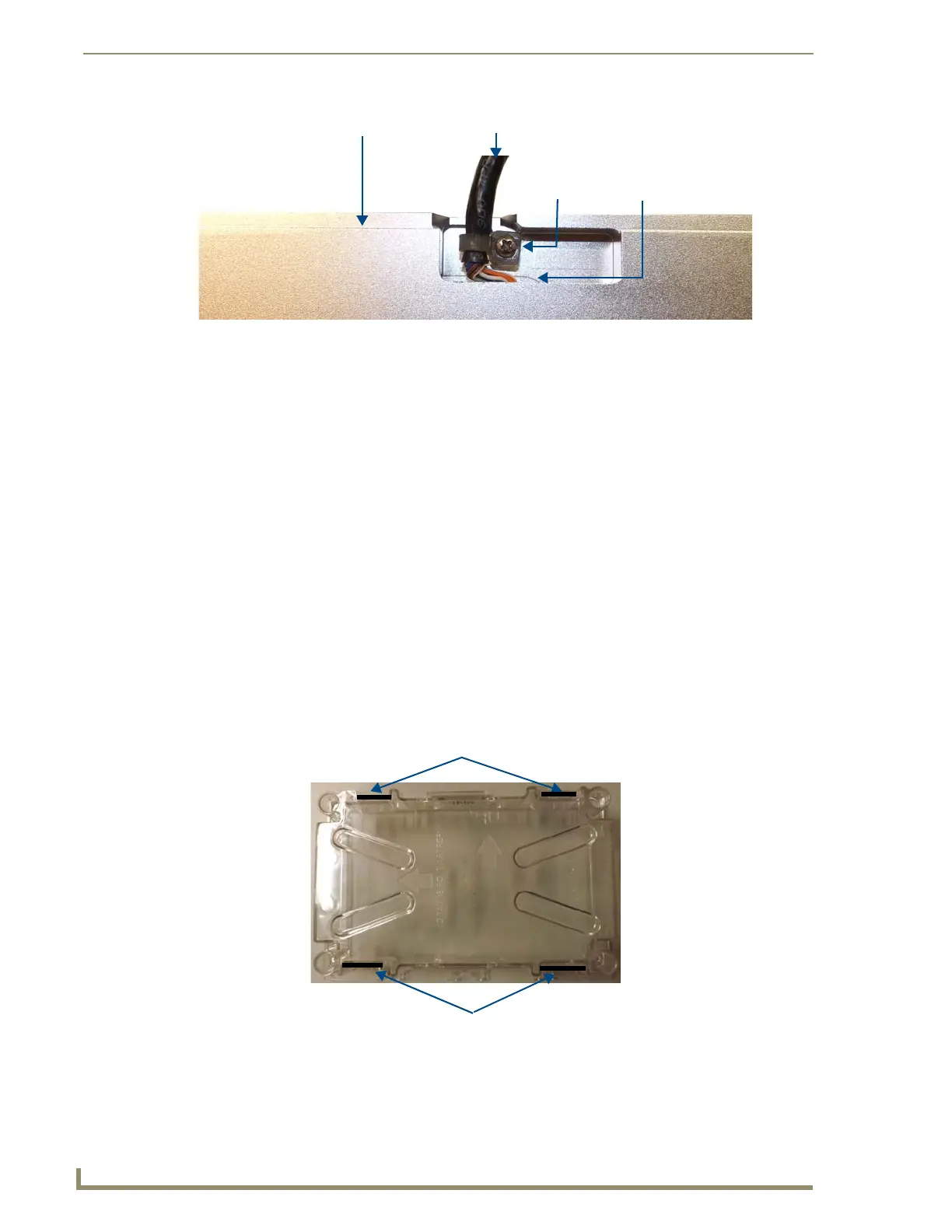

FIG. 11 Bottom of the MXT-1000
FIG. 12 MXD-1000 Back Box
Ethernet Cable
Connector
Clamp
MXT-1000
To Next Page
