use and maintenance Gulliver 50
49
2%-/6).'4(%&2/.4
(!.$,%"!2#/6%2
Carefully read page 37 (MAINTE-
NANCE).
◆
Position the vehicle on the stand.
◆

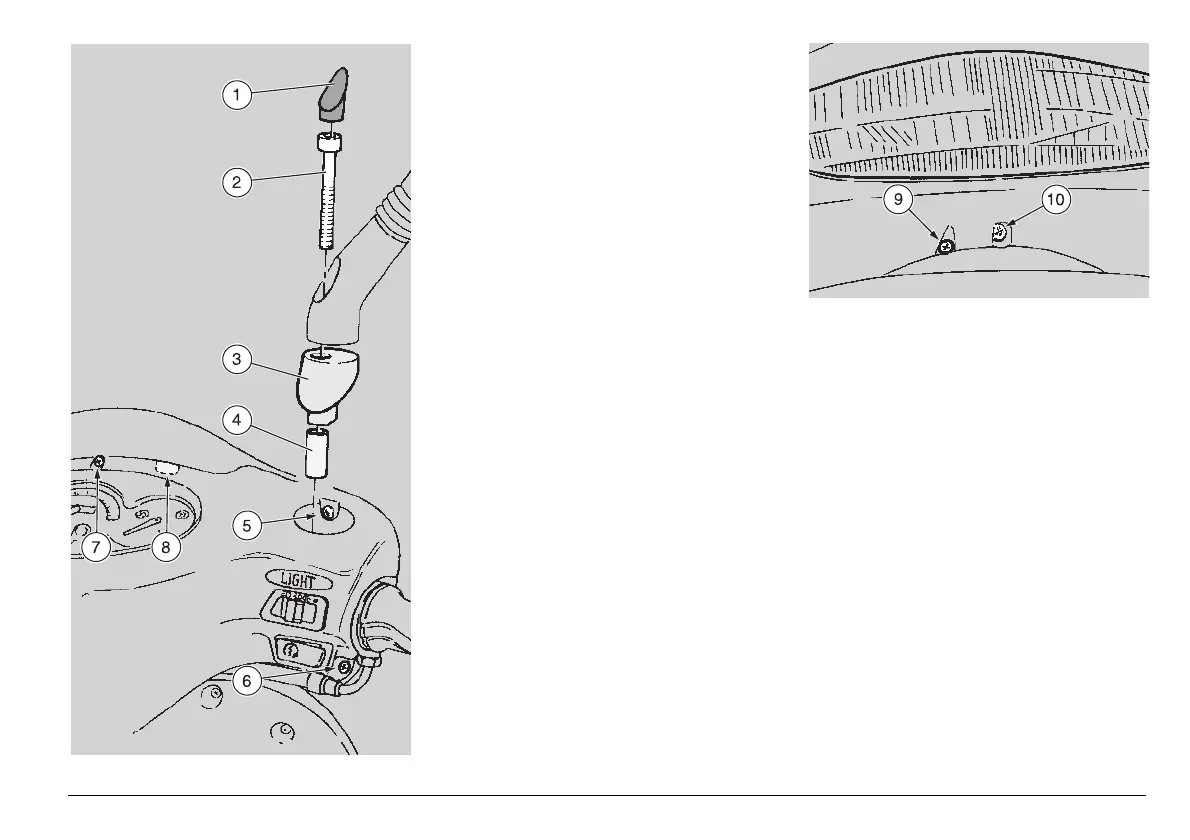

Remove the small cover (1).
◆
Unscrew the screw (2).
◆
Remove the mirror, being careful not to
lose the support (3), the spacer (4) and
the screw (2).
◆
Unscrew and remove the screw (5).
◆
Unscrew and remove the side screw (6).
◆
Repeat the operations described above
also on the opposite side of the vehicle.
◆
Unscrew and remove the central screw
(7) over the dashboard and the front
screw (9) under the headlight.
Do not unscrew the front screw
that adjusts the headlight beam
(10).
◆
Press with your fingers near the two
cogs (8).
◆
Grasp the front handlebar cover and re-
move it.
