INSTALLATION INSTALLATION

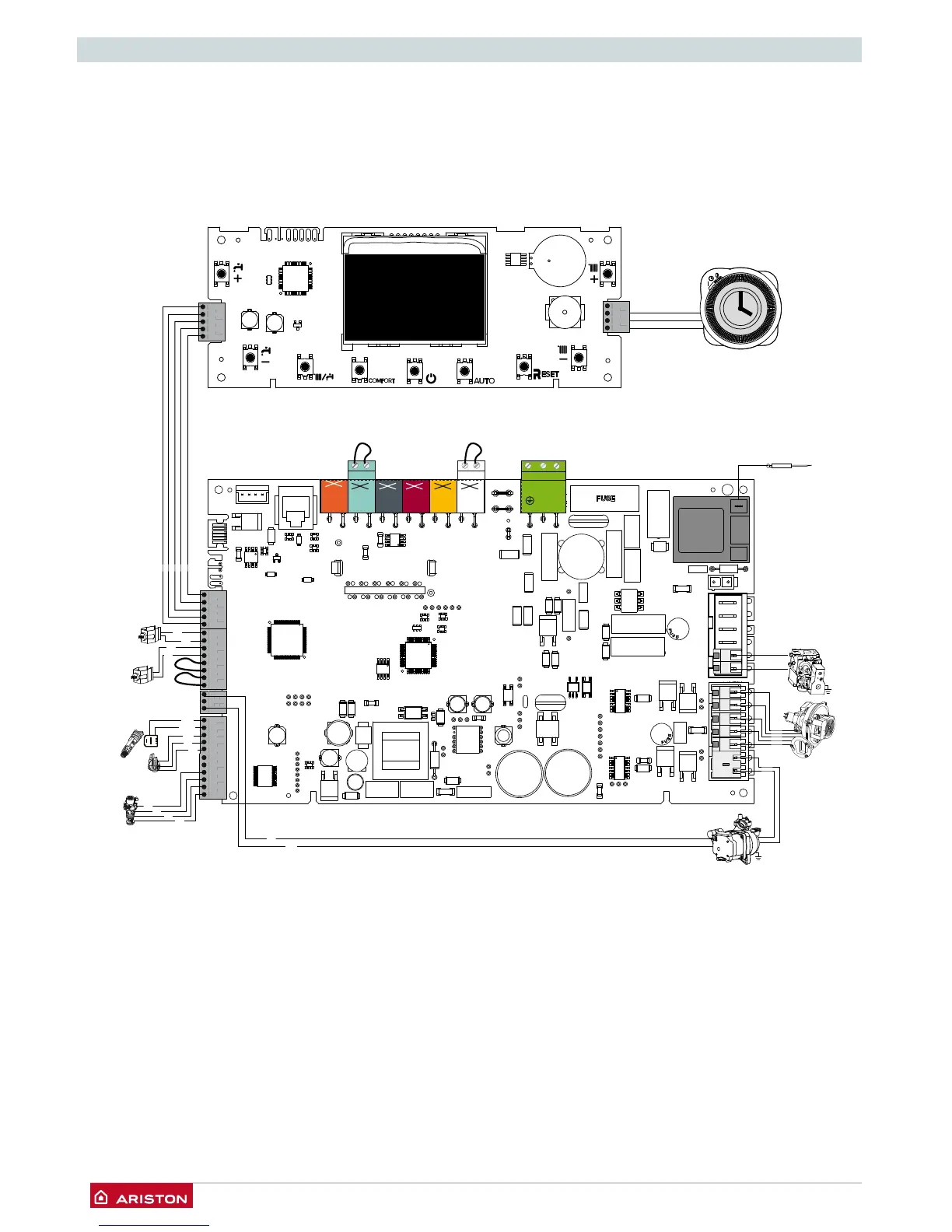

Electrical diagram
For increased safety, ask a qualied technician to perform a
thorough check of the electrical system.
The manufacturer is not responsible for any damage caused by
the lack of a suitable earthing system or by the malfunctioning
of the electricity mains supply.
CLAS ONE
CLAS NET ONE
N L
NL
BUS
T B
FLOOR
TA2
230 V
SE TNK SOL TA1
230 V
230 V 230 V 230 V 230 V
Bk
Bk
Gry
Bk
Bl
Br
Bk
Bl
Rd
Wh
Br
Bl
Rd
Bl
Bl
Rd
Br
Bk
D.H.W.
flow switch
Switch ON/OFF
Diverter valve
C.H. return
temperature
probe
C.H. flow
temperature
probe
Detection/Ignition
electrode
GAS VALVE
Modulating
fan
Modulating circulation
pump
