2X-A Series Operation Manual 15
Status indications
This section includes a summary of the control panel status indications.
Standby
Standby is indicated as follows:
• The Supply LED is steady
• If a sounder delay has been enabled the Sounder Delay LED is steady
• If a fire routing delay has been enabled the Fire Routing Delay LED is steady
• If a fire protection delay has been enabled the Fire Protection Delay LED is
steady
Note: Depending on your fire system configuration the buzzer may sound
intermittently to indicate an enabled delay condition.
Fire alarm
In accordance with European standards, fire alarm status is indicated on the
control panel LCD by zone (and not by device).
When an alarm is reported in more than one zone, the LCD displays two zone
messages: the first for the first zone to report an alarm and the second for the
most recent zone to report an alarm, as shown below.

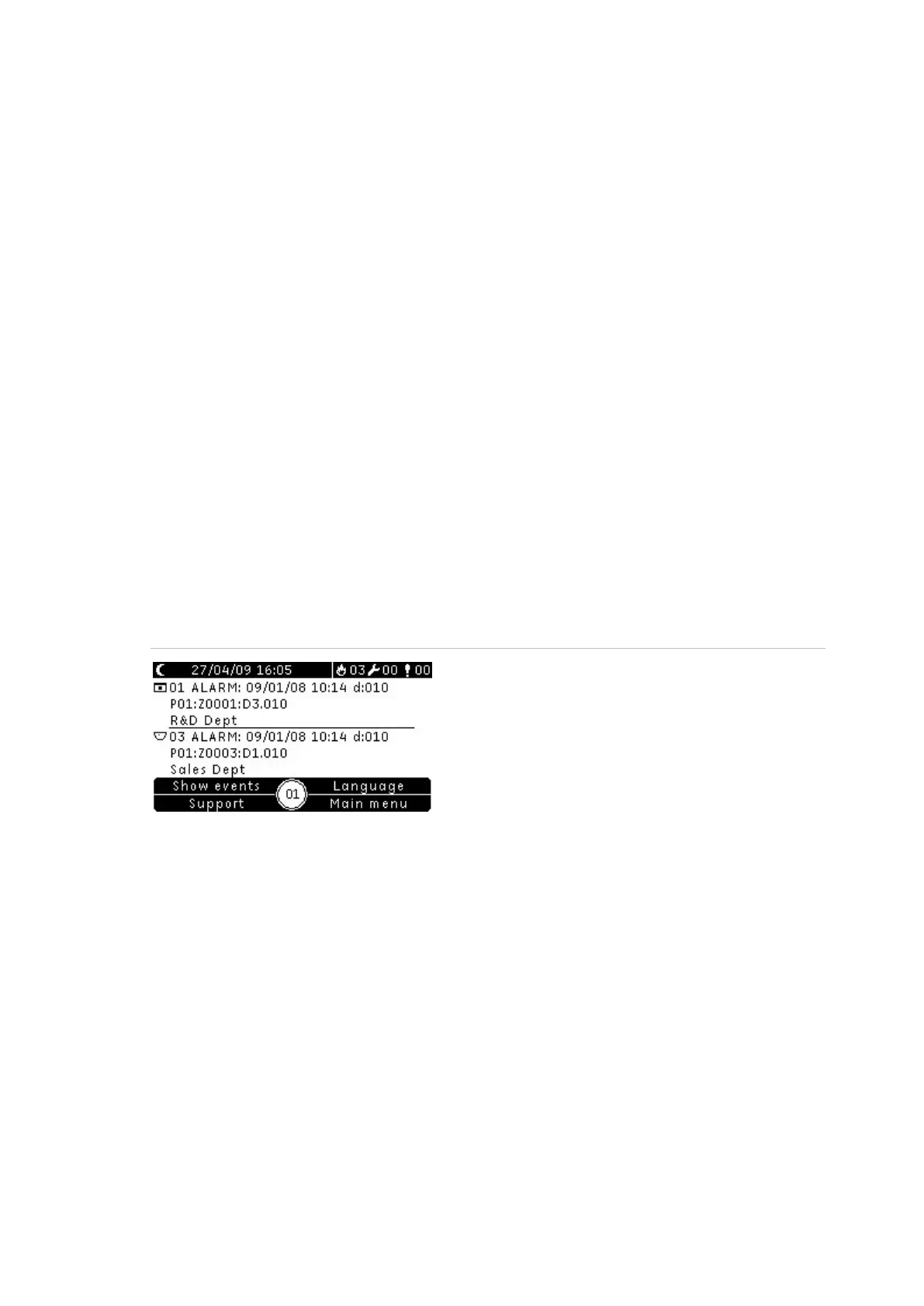

Figure 4: Fire alarm indication on the control panel LCD
Each zone message indicates:
• The zone identifier and description, the timestamp, and the device description
of the first alarm reported in the zone
• A counter with the total number of devices in alarm in the zone.
To see the details of the devices in alarm, press F1 (Show Events) and select
Alarms. Then select the corresponding zone reporting the alarm. A list of devices
in alarm for the zone is displayed.
