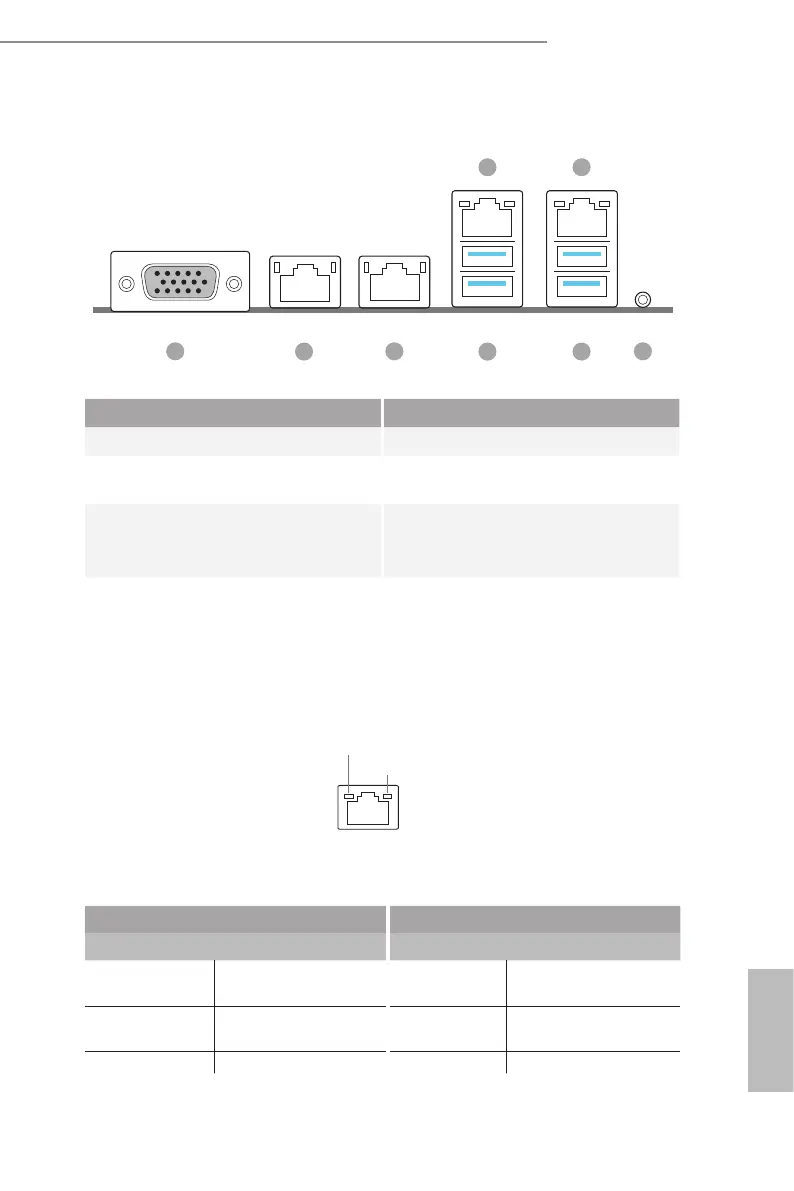

1.6 I/O Panel
3
6
2
1
4
5
7
8
No. Description No. Description
1 VGA Port (VGA1) 5 1G LAN RJ-45 Port (LAN3)**
2
10G LAN RJ-45 Port (LAN2)***
(ALTRAD8UD-1L2T only)
6 USB 3.2 Gen1 Ports (USB3_3_4)
3
10G LAN RJ-45 Port
(LAN1, shared NIC)***
(ALTRAD8UD-1L2T only)
7 LAN RJ-45 Port (IPMI)*
4 USB 3.2 Gen1 Ports (USB3_1_2) 8 UID Switch (UID1)
LAN Port LED Indications
*ere is an LED on each side of IPMI LAN port. Please refer to the table below for the
LAN port LED indications.
LAN Port
ACT/LINK LED
SPEED LED
IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection or
no link
Blinking Yellow
(Orange)
Data Activity Yellow 100Mbps connection
On Link Green 1Gbps connection
To Next Page
