2-30 Chapter 2: Hardware information
2.8 Connectors

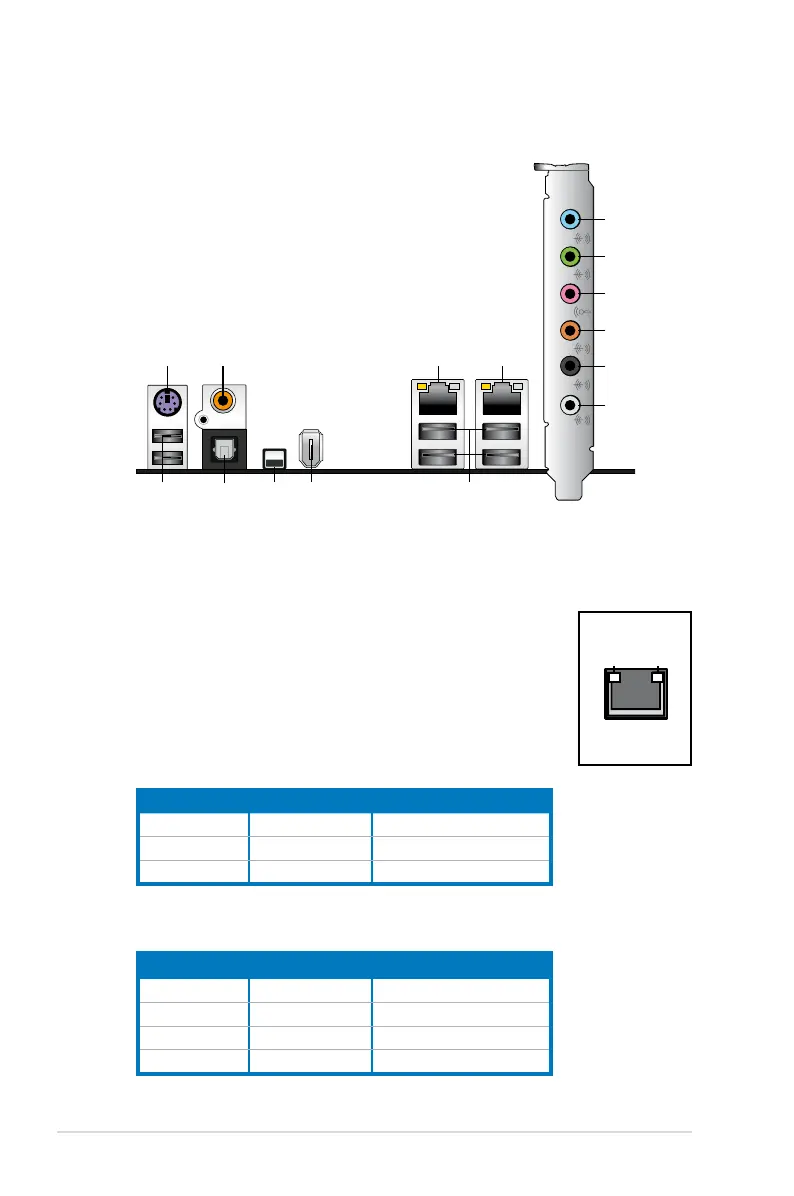

2.8.1 Rear panel connectors
1. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
2. Coaxial S/PDIF Out port.
This port connects an external audio output device
via a coaxial S/PDIF cable.
3. LAN 2 (RJ-45) port.
This port allows Gigabit connection to
a Local Area Network (LAN) through a network hub. Refer
to the table below for the LAN port LED indications.
4. LAN 1 (RJ-45) port.
This port allows Gigabit connection to
a Local Area Network (LAN) through a network hub. Refer
to the table below for the LAN port LED indications.
2
1
1415
3 4
5
1112
13
clr
CMOS
Line inMic inCen/SubRear-outSide-out Front-out
6
7
8
9
10
32-bit OS LAN port LED indications
* Blinking
Activity/Link Speed LED Description
OFF OFF Soft-off Mode
YELLOW* OFF During Power ON/OFF
YELLOW* ORANGE 100 Mbps connection
SPEED
LED
ACTIVITY/
LINK LED
LAN port
64-bit OS LAN port LED indications
Activity/Link Speed LED Description
DNR DNR Soft-off Mode
DNR DNR During Power ON/OFF
DNR DNR 100 Mbps connection
DNR DNR 1 Gbps connection
