Chapter 1: Product introduction
1.9 Software support
1.9.1 Installing an operating system
This motherboard supports Windows
®
7 (32/64bit) and Windows
®
8 (32/64bit) Operating
Systems (OS). Always install the latest OS version and corresponding updates to maximize
the features of your hardware.
Motherboard settings and hardware options vary. Refer to your OS documentation for
detailed information.
1.9.2 Support DVD information
The Support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
The contents of the Support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.

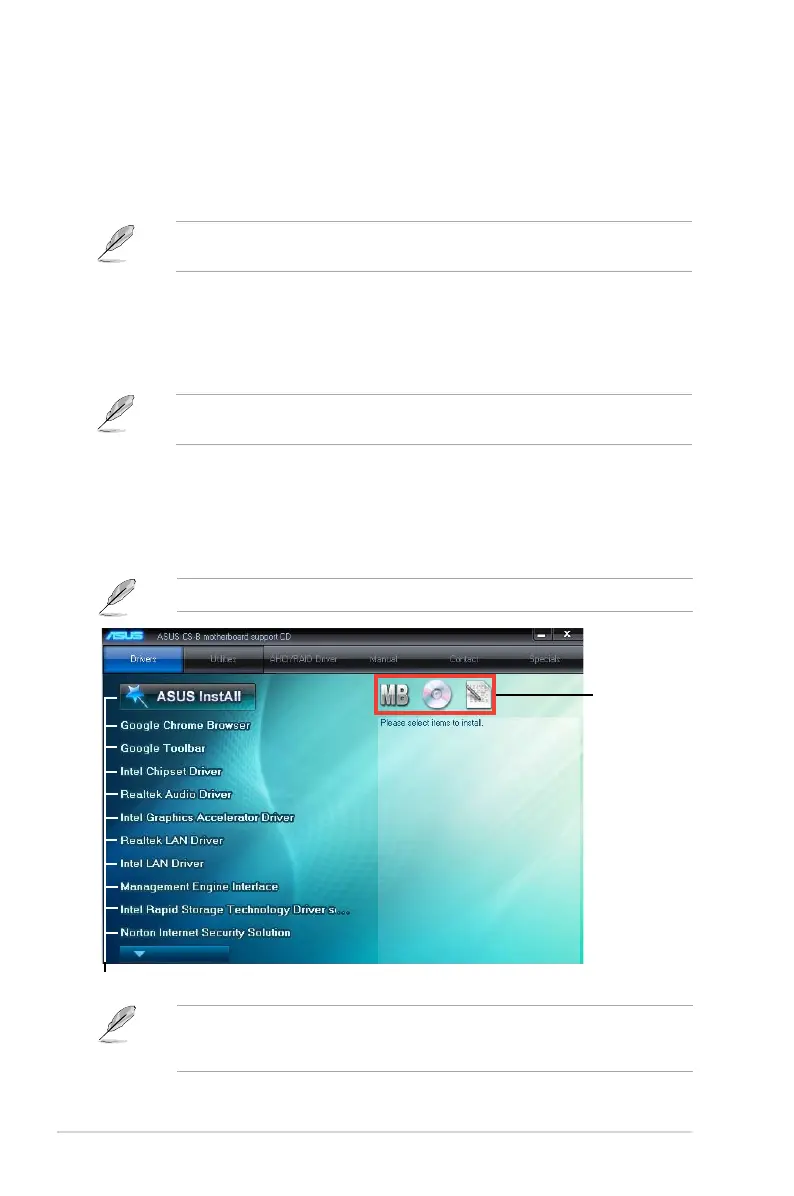

The following screen is for reference only.
To run the Support DVD
Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the
DVD automatically displays the Specials screen which lists the unique features of your ASUS
motherboard. Click Drivers, Utilities, AHCI/RAID Driver, Manual, Contact, and Specials tabs
to display their respective menus.
Click an item to install
Click an icon to
display Support
DVD/motherboard
information
If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to
locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.

Asus CS-B Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-4xxx, i5-4xxx, i7-4xxx
CPU fan connector	Yes
USB 2.0 connectors	2
Number of SATA connectors	-
Number of SATA III connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887-VD
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Q87
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3
Cables included	SATA
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Width	244 mm
