ASUS CS-B
2-33

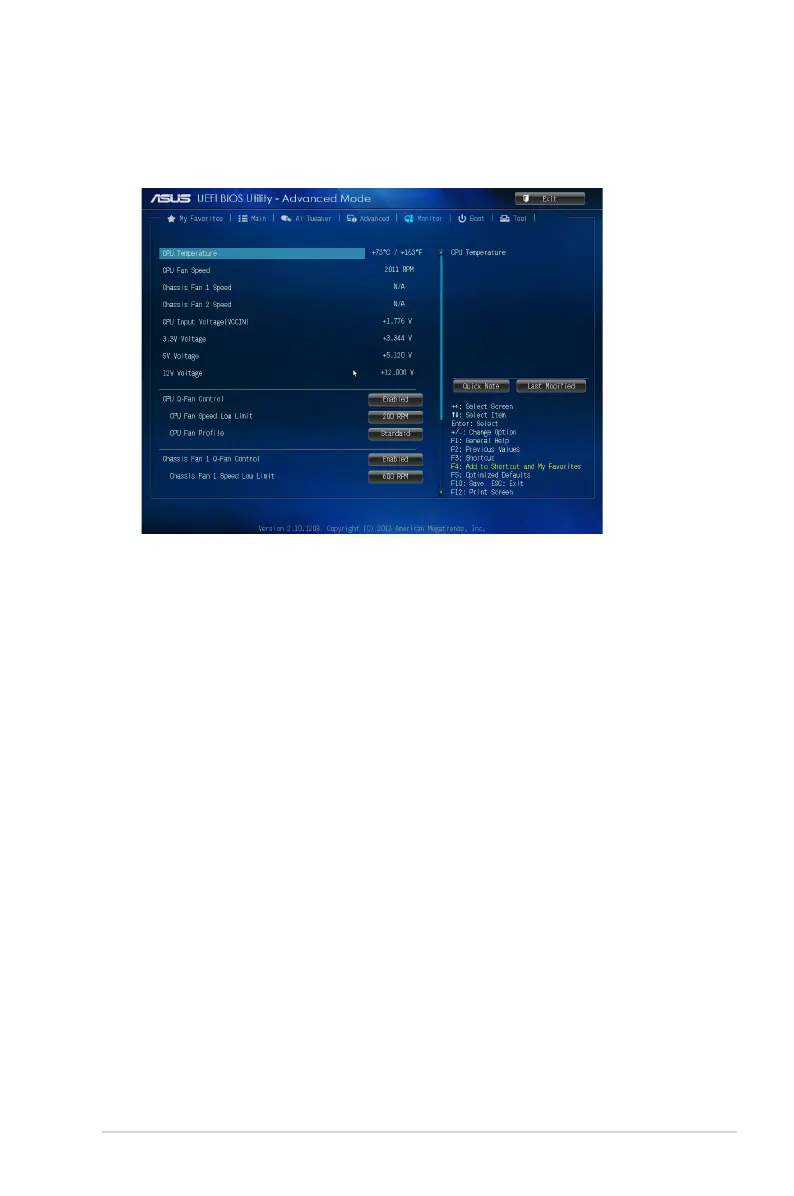

2.7 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the other items.
2.7.1 CPU Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU temperature.
Select Ignore if you do not wish to display the detected temperature.
2.7.2 CPU / Chassis Fan 1/2 Speed [xxxx RPM] or [Ignore] /
[N/A]
The onboard hardware monitor automatically detects and displays the CPU / chassis fan
1/2speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the
eld shows N/A. Select Ignore if you do not wish to display the detected speed.
2.7.3 CPU Input Voltage (VCCIN), 3.3V Voltage, 5V Voltage,
12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
2.7.4 CPU Q-Fan Control [Enabled]
[Disabled] Disables the CPU Q-Fan control feature.
[Enabled] Enables the CPU Q-Fan control feature.
CPU Fan Speed Low Limit [200 RPM]
This item appears only when you enable the CPU Q-Fan Control feature and allows you to
disable or set the CPU fan warning speed.
Conguration options: [Ignore] [100RPM] [200RPM] [300 RPM] [400 RPM] [500 RPM]

Asus CS-B Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-4xxx, i5-4xxx, i7-4xxx
CPU fan connector	Yes
USB 2.0 connectors	2
Number of SATA connectors	-
Number of SATA III connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887-VD
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Q87
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3
Cables included	SATA
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Width	244 mm
