Pop-up window
Select a menu item and press <Enter> to display a pop-up window with the conguration
options for that item.
Scroll bar
A scroll bar appears on the right side of a menu screen when there are items that do not t on
the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the
other items on the screen.
Navigation keys
At the bottom right corner of the menu screen are the navigation keys for the BIOS setup
program. Use the navigation keys to select items in the menu and change the settings.
General help
At the top right corner of the menu screen is a brief description of the selected item.
Conguration elds
These elds show the values for the menu items. If an item is user-congurable, you can
change the value of the eld opposite the item. You cannot select an item that is not
user-congurable.
A congurable eld is highlighted when selected. To change the value of a eld, select it and
press <Enter> to display a list of options.
Quick Note button
This button allows you to enter notes of the activities that you have done in BIOS.
Last Modied button
This button shows the items that you last modied and saved in BIOS Setup.

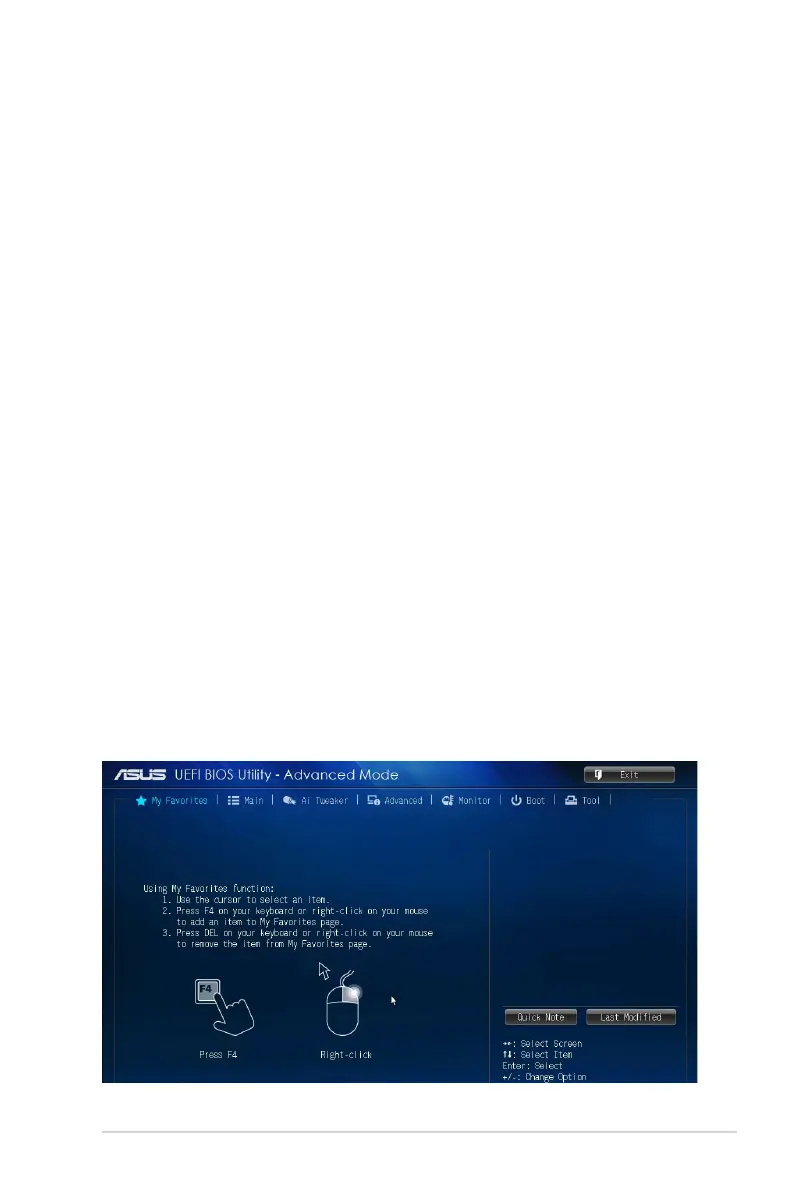

2.3 My Favorites
MyFavorites is your personal space where you can easily save and access your favorite
BIOS items.

Asus CS-B Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-4xxx, i5-4xxx, i7-4xxx
CPU fan connector	Yes
USB 2.0 connectors	2
Number of SATA connectors	-
Number of SATA III connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887-VD
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Q87
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3
Cables included	SATA
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Width	244 mm
