2-16 ASUS F1A55-M LX R2.0 Series
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit

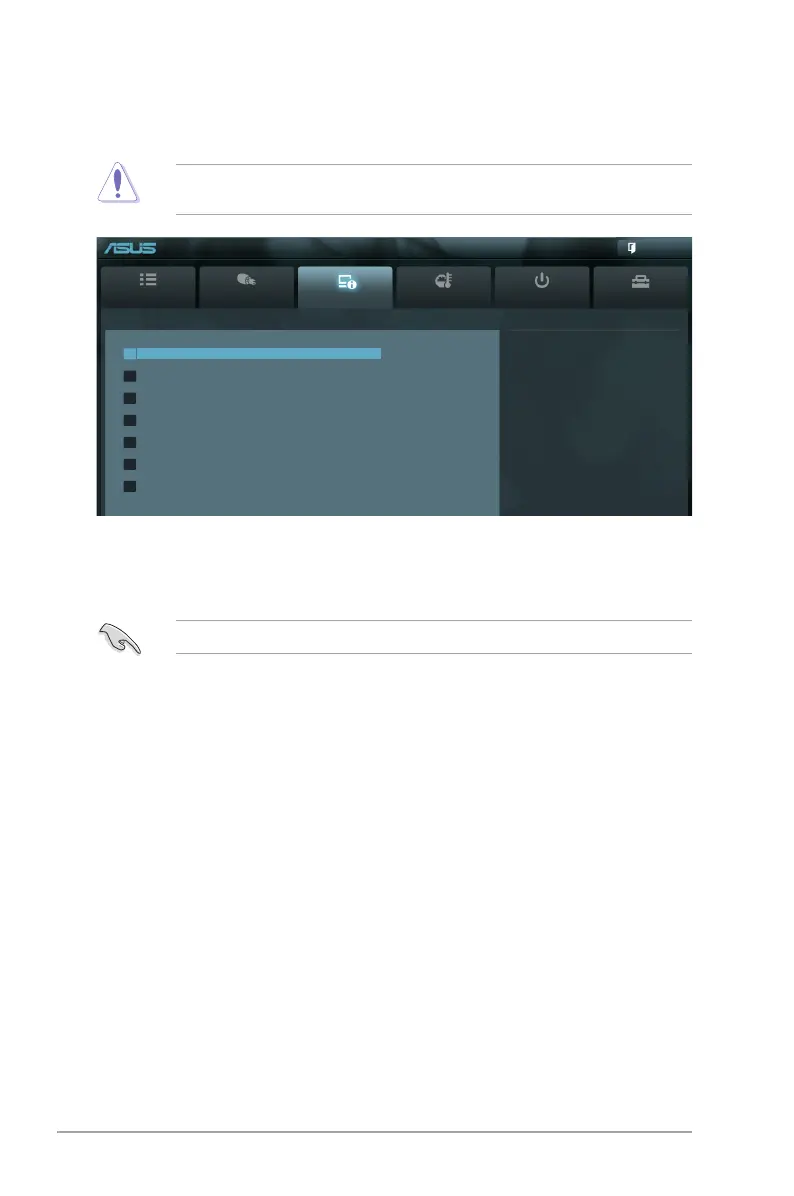

CPU Conguration Parameters
EFI BIOS Utility - Advanced Mode
2.5.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in submenu may be different due to the CPU you installed.
Limit CPUID Maximum [Disabled]
[Enabled] Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled] Disables this function.
C6 Mode [Auto]
Enables or disables C6 mode. Conguration options: [Auto] [Enabled] [Disabled]
CPB Mode [Auto]
Disables the CPB (Core Performance Boost) mode or set it to [Auto] for automatic
conguration. Conguration options: [Disabled] [Auto]
AMD PowerNow function [Enabled]
Enables or disables the AMD PowerNow function. Conguration options: [Enabled] [Disabled]
SVM [Enabled]
Enables or disables CPU virtualization. Conguration options: [Disabled] [Enabled]
C-state Pmin [Enabled]
When this item is set to [Enabled], the system’s processor operates at the lowest power and
operating state (C-state). Conguration options: [Disabled] [Enabled]
> CPU Conguration
> SATA Conguration
> USB Conguration
> NB Conguration
> Onboard Devices Conguration
> APM
> Network Stack

Asus F1A55-M LX PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2250 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E2
Maximum number of SMP processors	1
USB 2.0 connectors	3
Power fan connector	No
Number of SATA II connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Controller interface type	AMD A55 FCH
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Certification	RoHS\\r ErP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Graphics card	Radeon HD 6000
DirectX version	11
Maximum resolution	1920 x 1200 pixels
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu
PCI Express slots version	2.0
PCI Express configurations	1x1, 1x4, 1x16
Trial software	Antivirus
Cables included	SATA
Bundled software	ASUS utilities\\r ASUS Update
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	3.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	244 mm
