Chapter 6

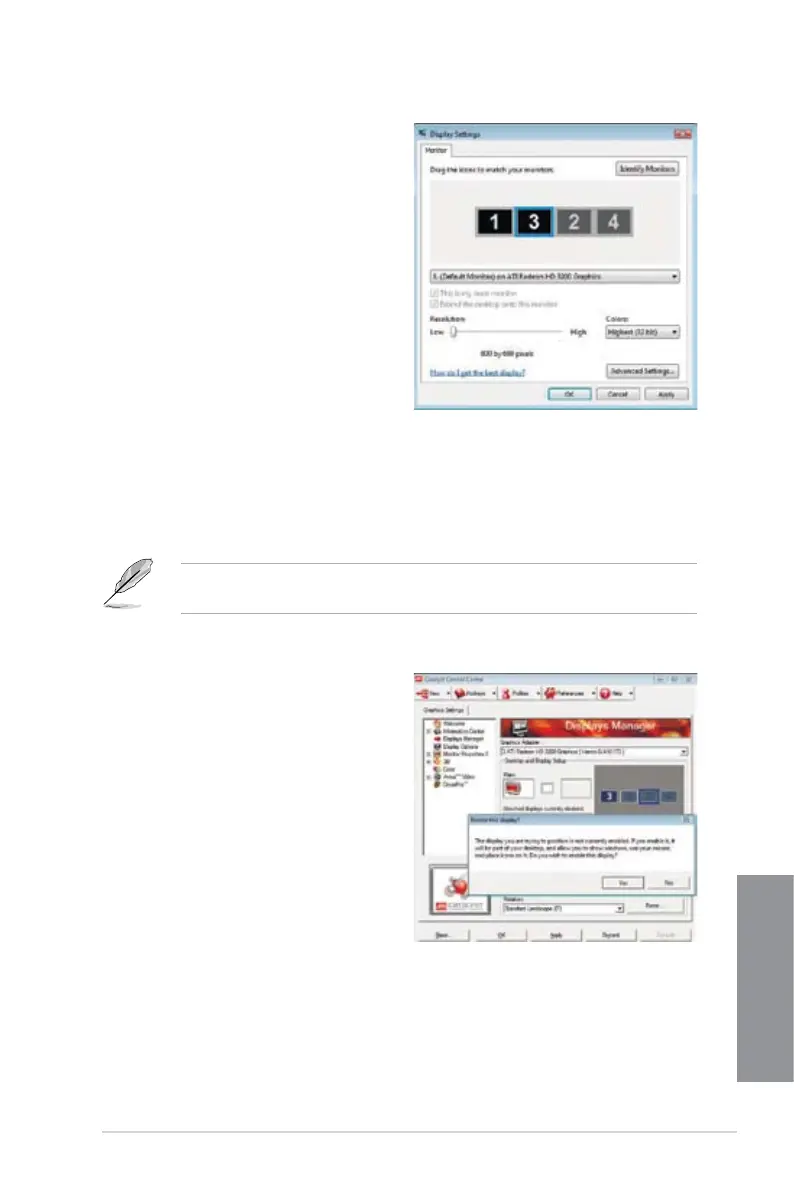

1. Follow steps 1 to 3 on Using the onboard graphics card.
2. From the AMD CATALYST(R) Control
Center screen, click Display Manager
> Graphics Adapter. Select AMD
Radeon HD 4250 Graphics [Gabbs, G
HW173]. Click OK, and then Yes from
the conrmation window.
3. Follow steps 6 to step 8 on
Using the
onboard graphics card to complete
the process of setting up the onboard
graphics card as your main monitor.
4. Right-click on the Windows
®
desktop,
then click Personalize from the shortcut
menu.
5. Click
Display Settings. Select [Default
Monitor] on ATI Radeon HD 4250
Graphics, then select the check boxes
of This is my main monitor and
Extend the desktop onto this monitor.
Click OK, and then Yes from the
conrmation window.
6. Restart the system. Right-click on the
Windows
®
desktop, then click AMD
CATALYST(R) Control Center from the
shortcut menu. The AMD CATALYST
Control Center screen appears.
7. Click
Graphics Settings > CrossFire™, then select the Enable CrossFire™ check
box. When a conrmation pops up, click Yes. The screen blacks out for about one
minute.
8. Click
OK. The onboard graphics card is set to be the main monitor.
If you are using both an add-on and the onboard graphics cards at same time and want to
set the onboard graphics card as your main monitor, follow the instructions below.

Asus F2A85-M PRO Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket FM2
Processor manufacturer	AMD
Compatible processor series	AMD A
Maximum number of SMP processors	1
Number of SATA III connectors	7
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	2
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
Graphics card	Radeon HD 7000
DirectX version	11
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0
PCI Express configurations	1x16, 2x1, 2x8
Trial software	Antivirus
Cables included	SATA
Bundled software	ASUS Utilities ASUS Update
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	244 mm
