ASUS M2N / M2N DH 2-23
7. Wireless LAN activity LED (M2N DH model only). The wireless LAN
module comes with an activity LED.
8. Wireless LAN antenna port
(M2N DH model only). This port connects to
the optional dipolar antenna for the onboard WiFi-g™ wireless solution.
9. USB 2.0 ports 3 and 4.
These 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
10. USB 2.0 ports 1 and 2.
These 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
11. Coaxial S/PDIF Out port.
This port connects an external audio output device
via an coaxial S/PDIF cable.
12. PS/2 keyboard port (purple)
. This port is for a PS/2 keyboard.
2.7.2 Internal connectors

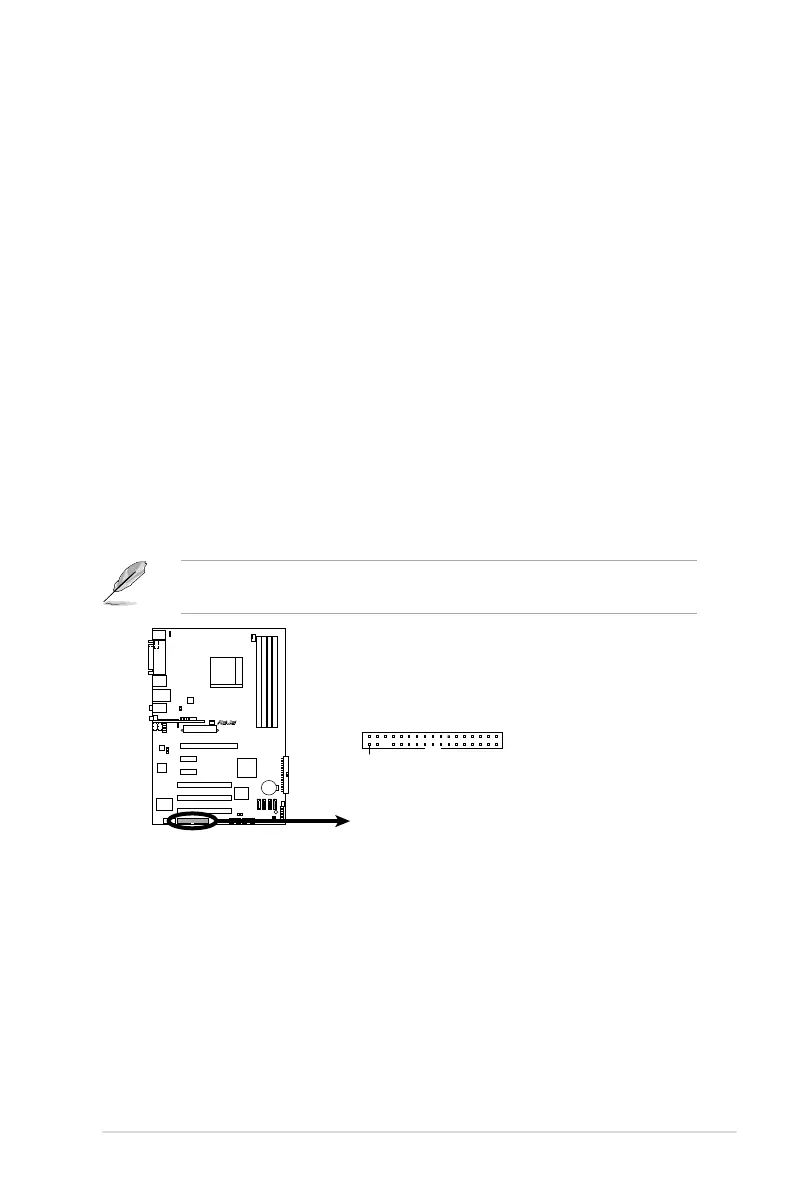

1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.
