Asus M2N-SLI DELUXE User Manual

2 ASUS M2N-SLI Deluxe
2. Installing the CPU
Follow these steps to install a CPU.
1. Locate the 940-pin AM2 socket on the motherboard.
2. Lift up the socket lever to 90° angle.

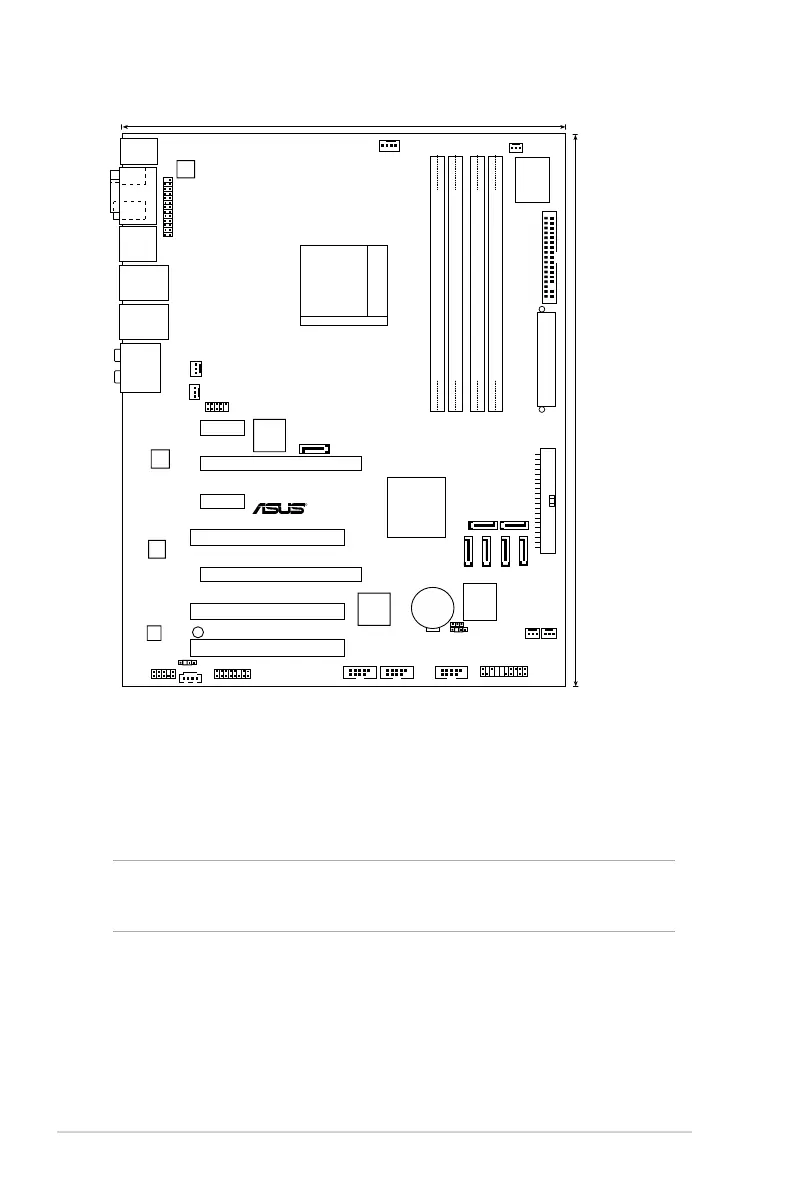

1. Motherboard layout
3. Position the CPU above the socket such that the CPU corner with the
gold triangle matches the socket corner with a small triangle.
4. CarefullyinserttheCPUintothesocketuntilittsinplace.
5. When the CPU is in place, push down the socket lever to secure the
CPU. The lever clicks on the side tab to indicate that it is locked.
WARNING!
TheCPUtsonlyinonecorrectorientation.DONOTforcetheCPUintothe
socket to prevent bending the pins and damaging the CPU!
Socket AM2
DDR2 DIMM_B1 (128 bit,240-pin module) DDR2 DIMM_B2 (128 bit,240-pin module) DDR2 DIMM_A1 (128 bit,240-pin module) DDR2 DIMM_A2 (128 bit,240-pin module)
PCI1
PCI2
PCI3
PCIEX16_1
PCIEX16_2
PRI_IDE
PANEL
4Mb
BIOS
CR2032 3V
Lithium Cell
CMOS Power
AAFP
PCIEX1_2
PCIEX1_1
PS/2KBMS
T: Mouse
B: Keyboard
LAN1_USB12
LAN2_USB34
EATXPWR
FLOPPY
ADFP1
CD
IE1394_2
USB78
USB56
CLRTC
CHASSIS
SATA2
SATA1
SATA3
SATA4
SATA5 SATA6
SATA_RAID1
CHA_FAN3 CHA_FAN4
PWR_FAN
CHA_FAN1
CHA_FAN2
USB910
CPU_FAN
Super I/O
SPDIF_OUT
SPDIF_O1
SPDIF_O2
COM1
ESATA_1394
AUDIO
LPT
ATX12V
24.5cm (9.6in)
30.5cm (12.0in)
NF570-SLI
ADI
1988B
Marvell
88E1116
Marvell
88E1116
JMicron
JMB363
TSB43AB22A
SB_PWR
R
M2N-SLI DELUXE
nVIDIA

Asus M2N-SLI DELUXE Specifications

General

Chipset	NVIDIA nForce 570 SLI
Socket	AM2
Memory Type	DDR2
Max Memory	8GB
Memory Standard	DDR2 800/667/533
PCI Express x16	2
SATA Ports	6 x SATA 3Gb/s
RAID Support	RAID 0, 1, 0+1, 5, JBOD
Audio Chipset	ADI AD1988B
Audio Channels	8-Channel
LAN Chipset	Marvell 88E1116
LAN Speed	10/100/1000Mbps
PS/2 Ports	2
USB Ports	10 x USB 2.0
IEEE 1394	2 x IEEE 1394a
Form Factor	ATX
Storage Interface	SATA 3Gb/s
Memory Slots	4
PCI Express x1	2
Power Connector	24-pin ATX + 4-pin ATX12V
PCI Slots	3 x PCI
