Asus M2N68 User Manual

ASUS M2N68 1-7

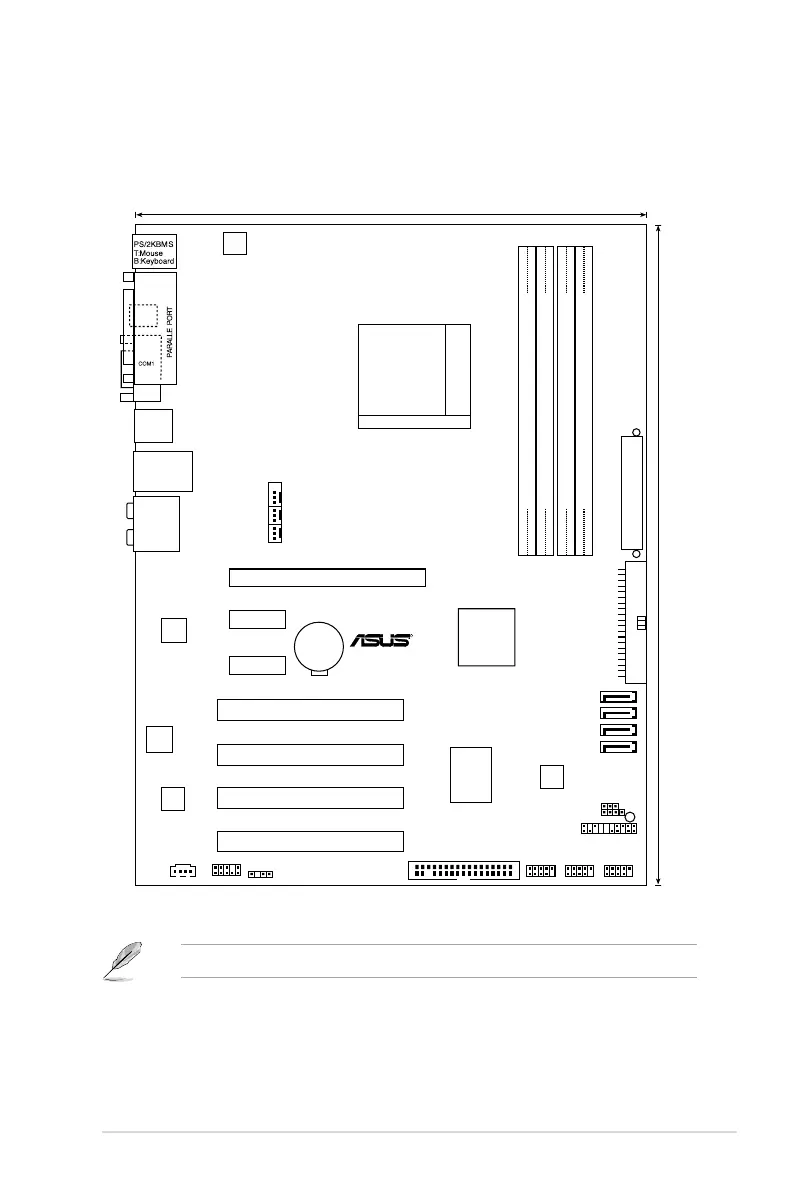

1.5.1 Motherboard layout
1.5 Motherboard overview
AM2+ socket is backward compatible with AM2 socket.
Super I/O
SATA4
SATA3
SATA2
SATA1
SocketAM2
E
A
TXPWR
PANEL
USB56 USB78 USB910
AAFP
SB_PWR
8Mb
BIOS
Nvidia
MCP68
DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module) DDR2 DIMM_B2 (64 bit,240-pin module)
CR2032 3V
Lithium Cell
CMOS Power
PCI2
PCI3
PCI4
PCI1
PCIEX16
PCIEX1_2
PCIEX1_1
CLRTC
ATX12V
R
SPDIF_OUT
M2N68
FLOPP
Y
CD
30.5cm (12in)
VIA
VT1708B
23.5cm(9.25in)
CHASSIS
CHA_FAN
PWR_FAN
CPU_FAN
Realtek
8211
JMB
381
AUDIO
LAN1_USB12
USB34
SPDOF_O
PRI_IDE

Asus M2N68 Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio output channels	7.1 channels
Motherboard form factor	ATX
LAN controller	Realtek RTL8211CL
Networking features	NVIDIA nForce Gigabit MAC
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Depth	236 mm
Width	305 mm
