ASUS M2N68 1-11
1.6.2 Installing the heatsink and fan
The AMD Athlon™ 64 X2 / Athlon™ 64 / Athlon™ FX / Sempron™ processor
require a specially designed heatsink and fan assembly to ensure optimum thermal
condition and performance.
Follow these steps to install the CPU heatsink and fan:

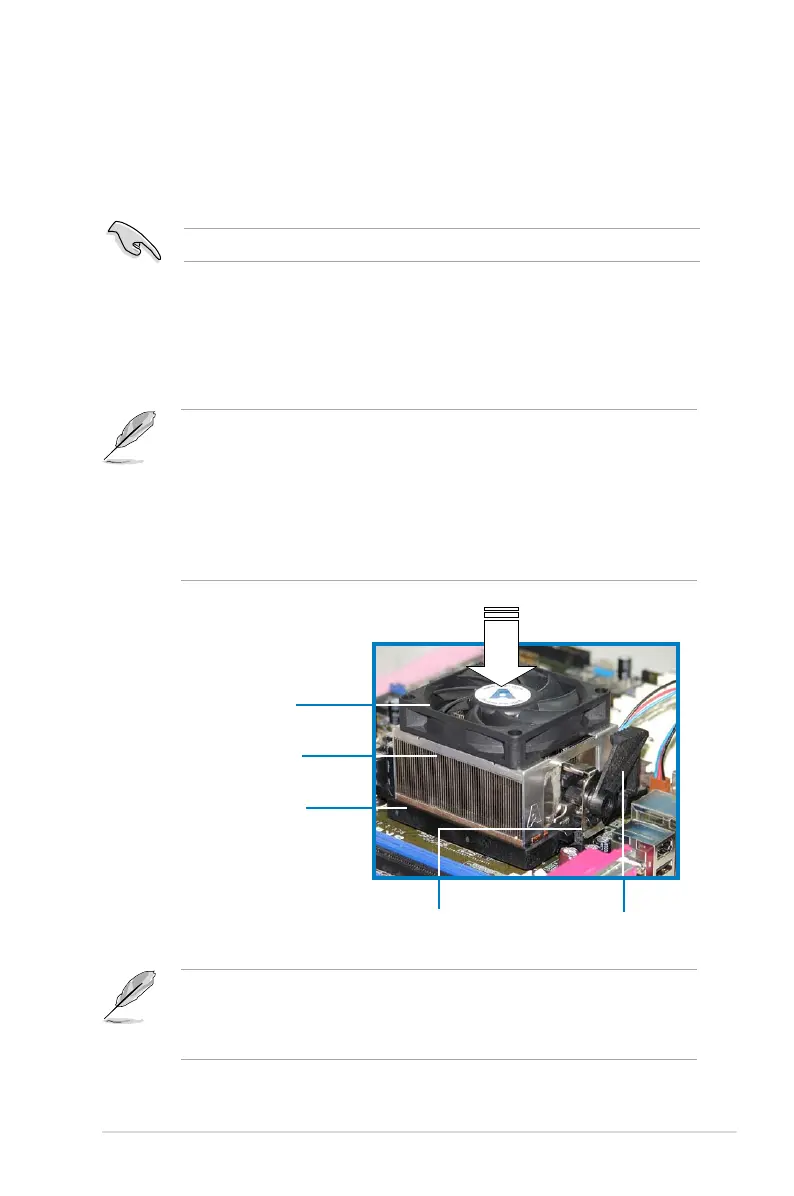

1. Place the heatsink on top of the installed CPU, making sure that the heatsink
ts properly on the retention module base.
Ensure that you use only qualied heatsink and fan assembly.
• The retention module base is already installed on the motherboard
upon purchase.
• You do not have to remove the retention module base when
installing the CPU or installing other motherboard components.
• If you purchased a separate CPU heatsink and fan assembly, ensure that
a Thermal Interface Material is properly applied to the CPU heatsink or
CPU before you install the heatsink and fan assembly.
Your boxed CPU heatsink and fan assembly should come with installation
instructions for the CPU, heatsink, and the retention mechanism. If the
instructions in this section do not match the CPU documentation, follow the
latter.
Retention Module Base
CPU Heatsink
CPU Fan
Retention bracket lockRetention bracket

Asus M2N68 Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio output channels	7.1 channels
Motherboard form factor	ATX
LAN controller	Realtek RTL8211CL
Networking features	NVIDIA nForce Gigabit MAC
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Depth	236 mm
Width	305 mm
