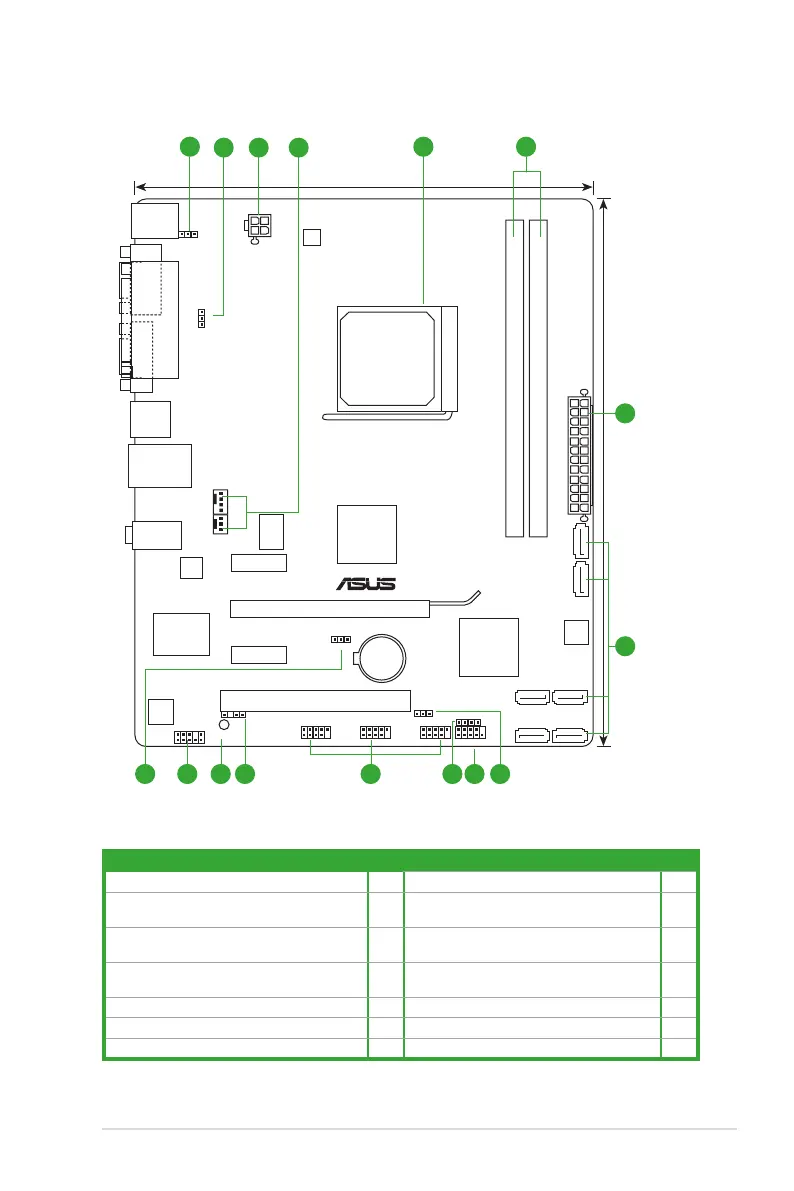

1.5.3 Motherboard layout

1.5.4 Layout contents

M4A78LT-M LX

PCIEX16

PCIEX1_1

PCIEX1_2

PCI1

USB910 USB78 USB56

AAFP

SPDIF_OUT

ATX12V

EPU

EATXPWR

CPU_FAN

Lithium Cell

CMOS Power

Super

I/O

ALC

887

RTL

8111E

ICS

9LPRS483

KBMS

8Mb

BIOS

SB_PWR

SPEAKER

CLRTC

USBPW5-10

USBPW1-4

KBPWR

20.3cm(8.0in)

24.4cm(9.6in)

AMD

RS780L

AMD

SB710

SOCKET AM3

DDR3 DIMM_A1 (64bit, 240-pin module)

DDR3 DIMM_B1 (64bit, 240-pin module)

SATA3G_3SATA3G_1

SATA3G_4SATA3G_2

SATA3G_6SATA3G_5

CHA_FAN

F_PANEL

AUDIO

LAN1_USB12

USB34

LPT

COM1

VGA

2 3 4

5 6

101112 89 21314

Connectors/Jumpers/Slots Page Connectors/Jumpers/Slots Page

1. Keyboard power (3-pin KBPWR) 1-19 8. System panel connector (10-1 pin F_PANEL) 1-24

2. USB device wake-up (3-pin USBPW1-4,

USBPW5-10, )

1-19 9. Speaker connector (4- pin SPEAKER) 1-26

3. ATX power connectors (24-pin EATXPWR, 4-pin

ATX12V)

1-22 10. USB connectors (10-1 pin USB56, USB78,

USB910)

1-25

4. CPU and chassis fan connectors (4-pin

CPU_FAN and 3-pin CHA_FAN)

1-27 11. Digital audio connector (4-1 pin SPDIF_OUT) 1-26

5. AMD CPU socket 1-8 12. Onboard LED 1-5

6. DDR3 DIMM sockets 1-11 13. Front panel audio connector (10-1 pin AAFP) 1-21

7. Serial ATA connectors (7-pin SATA1-6) 1-23 14. Clear RTC RAM (CLRTC) 1-18

ASUS M4A78LT-M LX 1-7

Questions and Answers:

Need help?

Do you have a question about the Asus M4A78LT-M LX and is the answer not in the manual?

Asus M4A78LT-M LX Specifications

General

ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
Compatible operating systems	DOS Windows XP Windows XP 64bit Windows Vista 32bit Wnindows Vista 64bit Windows 7 Windows 7 64bit
Graphics card	Radeon 3000
Maximum graphics card memory	1024 MB
Parallel processing technology support	Hybrid CrossFireX
RAID levels	0, 1, 10, JBOD
Controller interface type	SATA 3.0 Gb/s
Cables included	SATA
Bundled software	ASUS PC Probe II ASUS Update
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
