Asus M4A78LT-M LX User Manual

1.10 Connectors

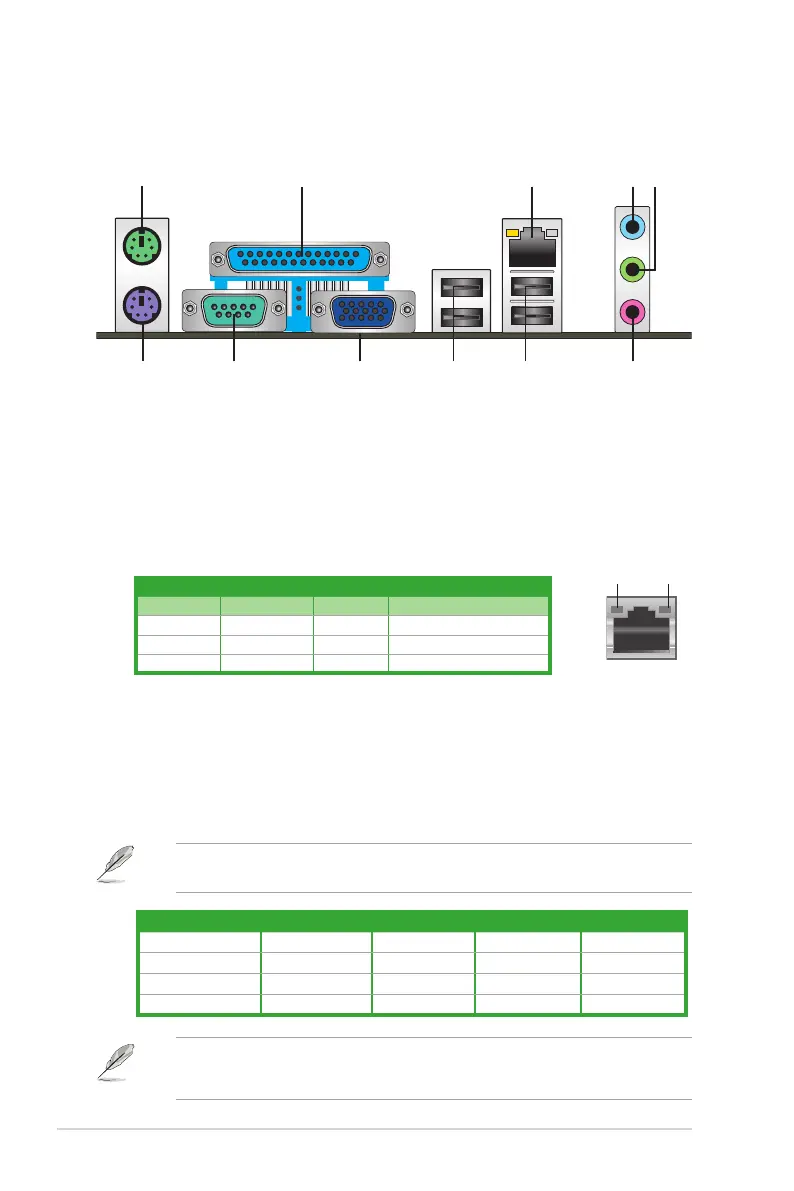

1.10.1 Rear panel ports
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6, and
8-channel congurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table below for the function of the audio ports in 2, 4, 6, or
8-channel conguration.
4 53
68 7
2
10 9
1
11
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) – – – Side Speaker Out
To congure an 8-channel audio output:
Use a chassis with HD audio module in the front panel to support 8-channel audio output.
Chapter 1: Product introduction1-20

Asus M4A78LT-M LX Specifications

General

ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
Compatible operating systems	DOS Windows XP Windows XP 64bit Windows Vista 32bit Wnindows Vista 64bit Windows 7 Windows 7 64bit
Graphics card	Radeon 3000
Maximum graphics card memory	1024 MB
Parallel processing technology support	Hybrid CrossFireX
RAID levels	0, 1, 10, JBOD
Controller interface type	SATA 3.0 Gb/s
Cables included	SATA
Bundled software	ASUS PC Probe II ASUS Update
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	203 mm
Width	244 mm
