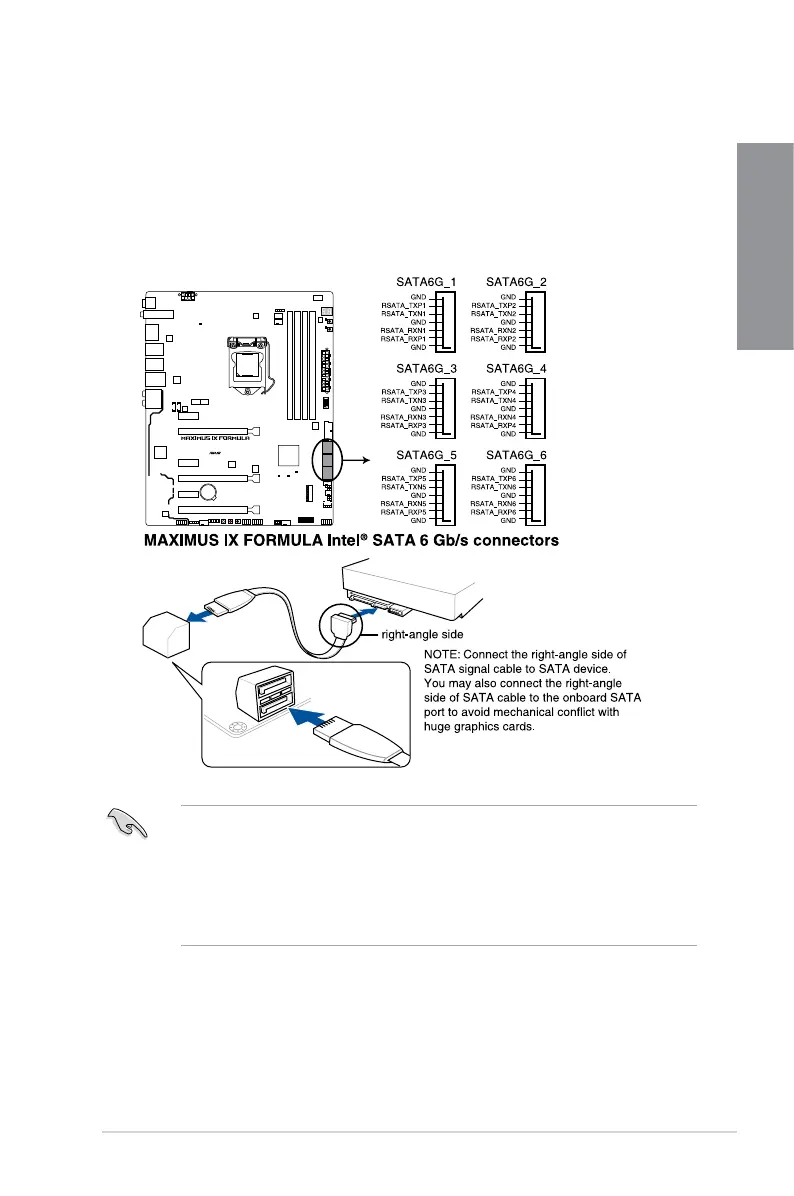

1.1.9 Internal connectors
1. Intel
®
Z270 Serial ATA 6 Gb/s connectors (7-pin SATA6G_12; SATA6G_34;
SATA6G_56)
TheseconnectorsconnecttoSerialATA6Gb/sharddiskdrivesviaSerialATA6Gb/s
signalcables.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,1,5,and10
congurationwiththeIntel
®
RapidStorageTechnologythroughtheonboardIntel
®

Z270chipset.
• Theseconnectorsaresetto[AHCI]bydefault.IfyouintendtocreateaSerialATA
RAIDsetusingtheseconnectors,settheSATAModeSelectionitemintheBIOSto
[Intel RST Premium With Intel Optane System Acceleration (RAID)].
• BeforecreatingaRAIDset,refertosectionRAID configurationsorthemanual
bundledinthemotherboardsupportDVD.
• WhenusingNCQ,settheSATAModeintheBIOSto[AHCI].
