ASUS P5LD2 5-19
Intel
®
Matrix Storage Manager Option ROM Utility
The Intel
®
Matrix Storage Manager Option ROM utility allows you to create
RAID 0, RAID 1, RAID 10 (0+1), and RAID 5 set(s) from Serial ATA hard
disk drives that are connected to the Serial ATA connectors supported by
the Southbridge.
To enter the Intel
®
Application Accelerator RAID Option ROM utility:
1. Install all the Serial ATA hard disk drives.
2. Turn on the system.
3. During POST, press <Ctrl+I> to display the utility main menu.
The navigation keys at the bottom of the screen allow you to move
through the menus and select the menu options.
The RAID BIOS setup screens shown in this section are for reference only
and may not exactly match the items on your screen.

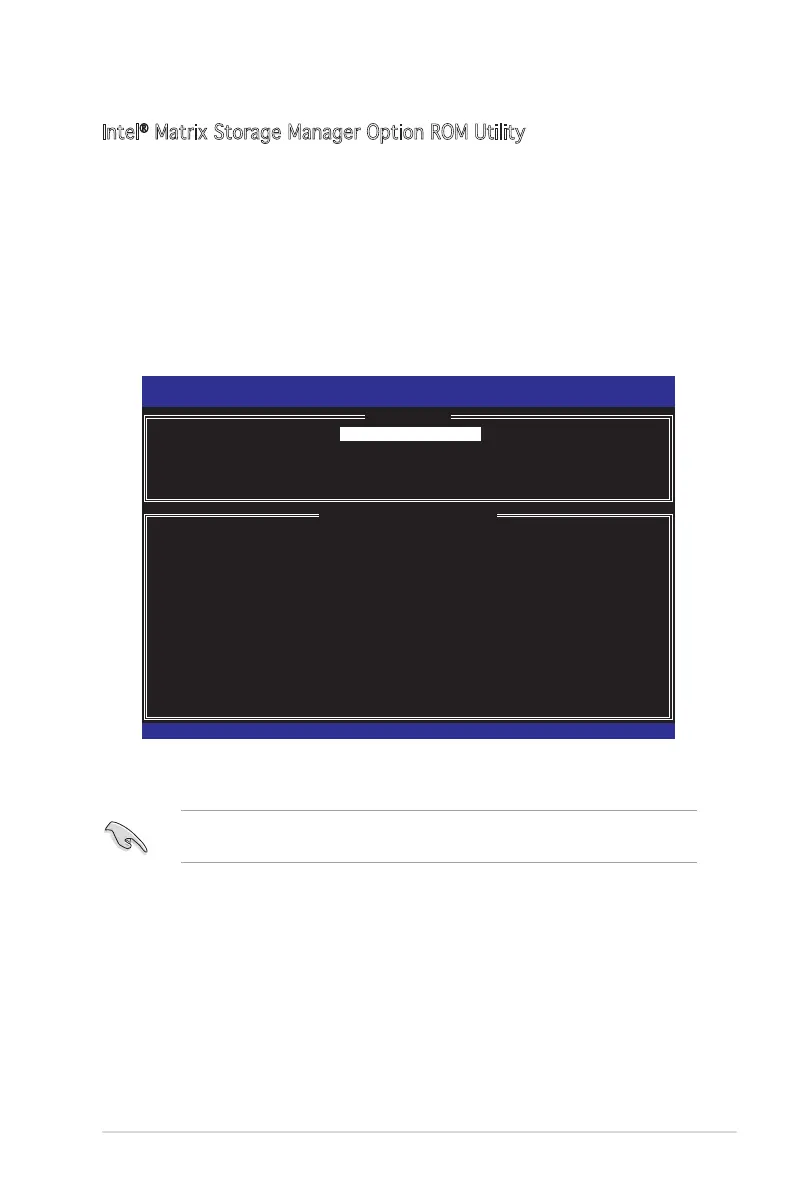

Intel(R) Matrix Storage Manager Option ROM v5.0.0.1032 ICH7R wRAID5
Copyright(C) 2003-05 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
1. Create RAID Volume
2. Delete RAID Volume
3. Reset Disks to Non-RAID
4. Exit
[ DISK/VOLUME INFORMATION ]
RAID Volumes:
None dened.
Physical Disks:
Port Drive Model Serial # Size Type/Status(Vol ID)
0 XXXXXXXXXXX XXXXXXXX XX.XXGB Non-RAID Disk
1 XXXXXXXXXXX XXXXXXXX XX.XXGB Non-RAID Disk
2 XXXXXXXXXXX XXXXXXXX XX.XXGB Non-RAID Disk
3 XXXXXXXXXXX XXXXXXXX XX.XXGB Non-RAID Disk
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
