Asus Motherboard P5LD2 User Manual

2-28 Chapter 2: Hardware information

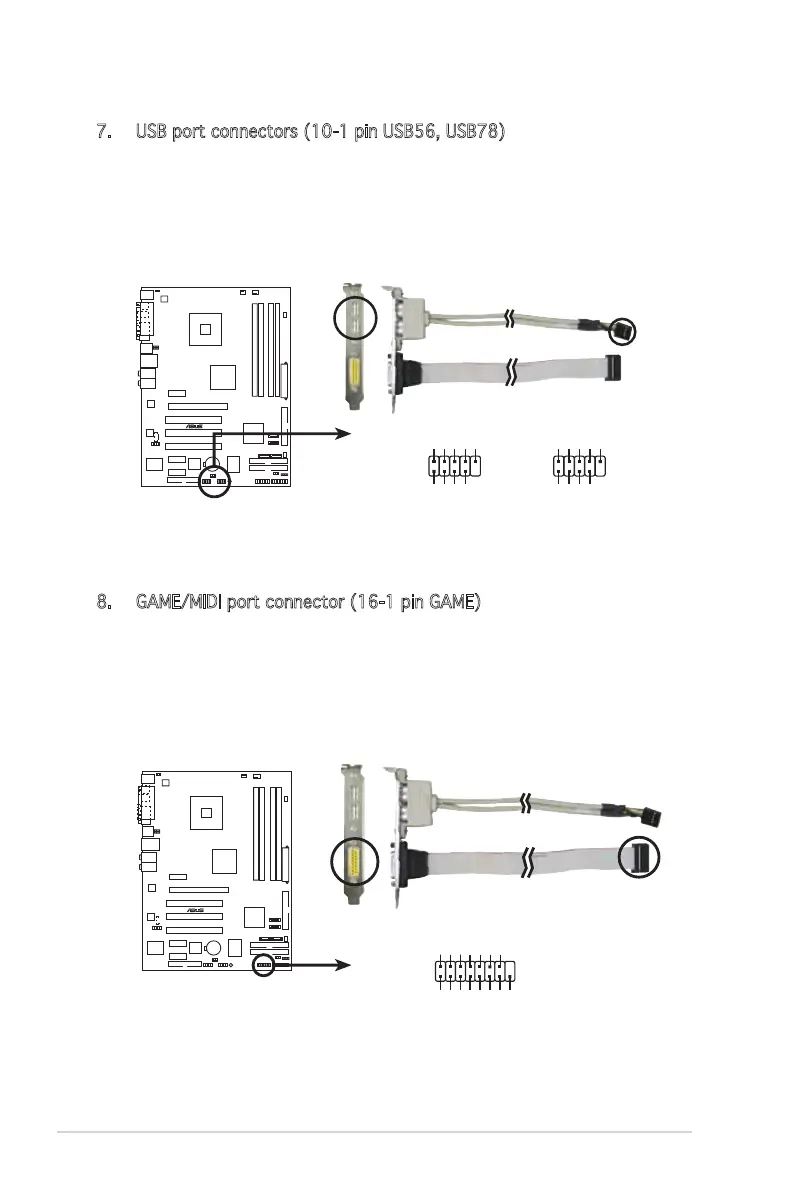

7. USB port connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB/GAME
module cable to any of these connectors, then install the module to a
slot opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specication that supports up to 480 Mbps
connection speed.
8. GAME/MIDI port connector (16-1 pin GAME)
This connector is for a GAME/MIDI port. Connect the USB/GAME
module cable to this connector, then install the module to a slot
opening at the back of the system chassis. The GAME/MIDI port
connects a joystick or game pad for playing games, and MIDI devices
for playing or editing audio les.
P5LD2
®
P5LD2 USB 2.0 connectors
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
P5LD2
®
P5LD2 Game connector
GAME
+5V +5V
J2B1 J2CX
MIDI_OUT
J2CY J2B2 MIDI_IN
J1B1
J1CX
GND GND
J1CY
J1B2
+5V

Asus Motherboard P5LD2 Specifications

General

Chipset	Intel 945P
Socket	LGA 775
Front Side Bus	1066/800/533 MHz
Memory Type	DDR2
Memory Standard	DDR2 667/533/400
Maximum Memory	4GB
PCI Express x16	1
PCI Express x1	2
PCI Slots	3
SATA	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC882
LAN Speed	10/100/1000Mbps
PS/2	2
Form Factor	ATX
Supported CPU	Intel Pentium 4 / Pentium D / Celeron D
Memory Slots	4
IDE	1 x ATA100
Audio Channels	8
USB 2.0	8
