Asus P4P800 SE User Manual

ASUS P4P800 SE motherboard 2-21

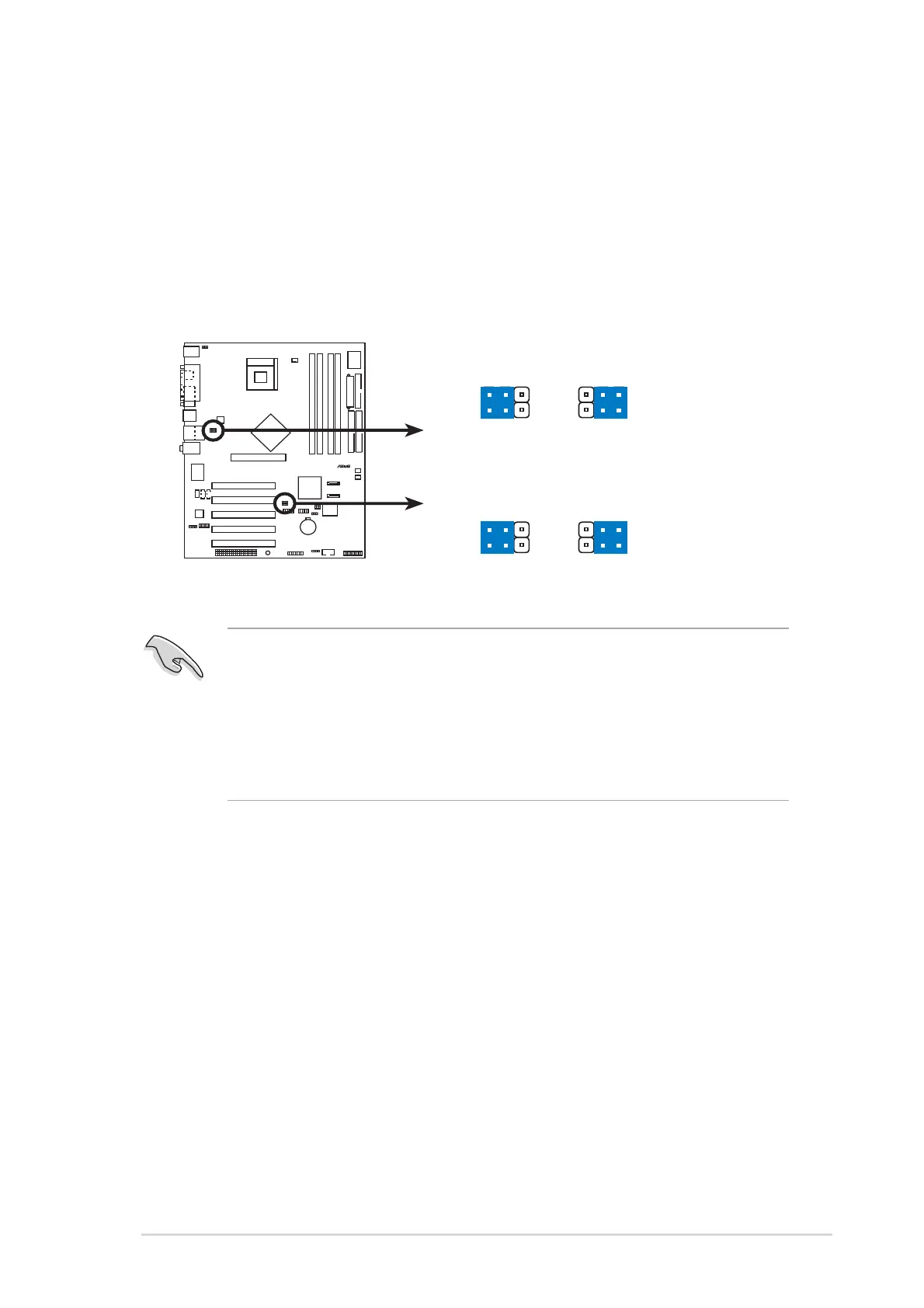

2. USB device wake-up (3-pin USBPW12, USBPW34, USBPW56,
USBPW78)
Set these jumpers to +5V to wake up the computer from S1 sleep
mode (CPU stopped, DRAM refreshed, system running in low power
mode) using the connected USB devices. Set to +5VSB to wake up
from S3 and S4 sleep modes (no power to CPU, DRAM in slow
refresh, power supply in reduced power mode).
• The USB device wake-up feature requires a power supply that can
provide 500mA on the +5VSB lead for each USB port. Otherwise,
the system will not power up.
• The total current consumed must NOT exceed the power supply
capability (+5VSB) whether under normal condition or in sleep
mode.
P4P800 SE
®
P4P800 SE USB Device Wake Up
3
2
21
+5V
(Default)
+5VSB
USBPW12
USBPW34
3
2
21
+5V
(Default)
+5VSB
USBPW56
USBPW78

Asus P4P800 SE Specifications

General

I/O ports	1 x Parallel 1 x Serial 1 x S/PDIF Output 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x RJ45 4 x USB 2.0/1.1
Controller interface type	UltraDMA 100/66/33, Serial ATA, RAID 0, 1
Motherboard form factor	ATX
Networking features	Marvell 88E8001 Gigabit Lan Controller 10/100/1000 BASE-T
Bundled software	Drivers ASUS PC Probe ASUS AI Booster Trend Micro PC-cillin anti-virus software (OEM version) ASUS LiveUpdate Utility
Processor socket	Socket 478
Processor manufacturer	Intel
