ASUS P4P800 motherboard user guide

2-1

2.1 Motherboard installation

Before you install the motherboard, study the configuration of your chassis

to ensure that the motherboard fits into it. The P4P800 uses the ATX form

factor that measures 12 inches x 9.6 inches.

2.1.1 Placement direction

When installing the motherboard, make sure that you place it into the

chassis in the correct orientation. The edge with external ports goes to the

rear part of the chassis as indicated in the image below.

2.1.2 Screw holes

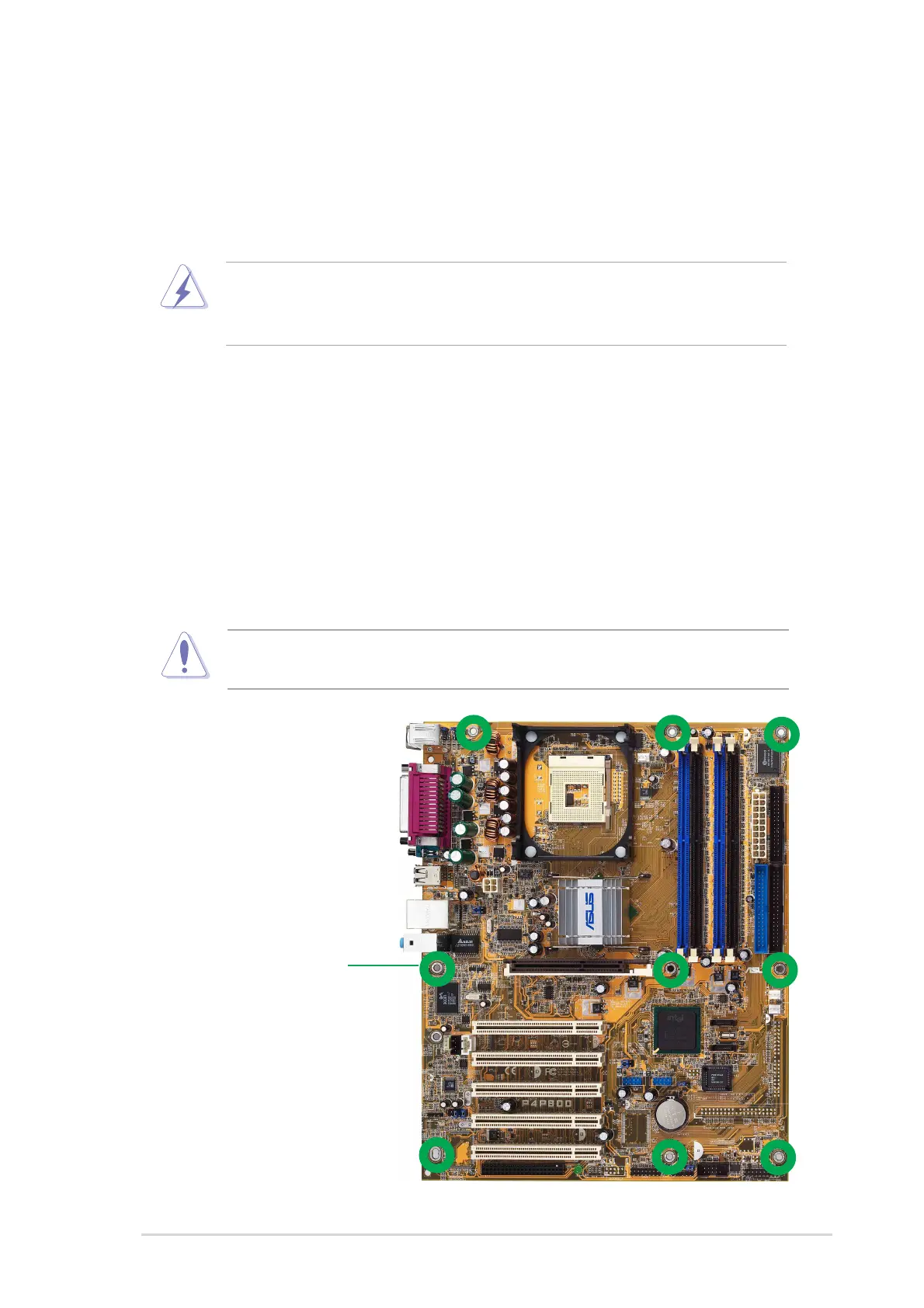

Place nine (9) screws into the holes indicated by circles to secure the

motherboard to the chassis.

Place this side towards

the rear of the chassis

Do not overtighten the screws! Doing so may damage the

motherboard.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause you physical injury and

damage motherboard components.
