Chapter 2: Hardware information

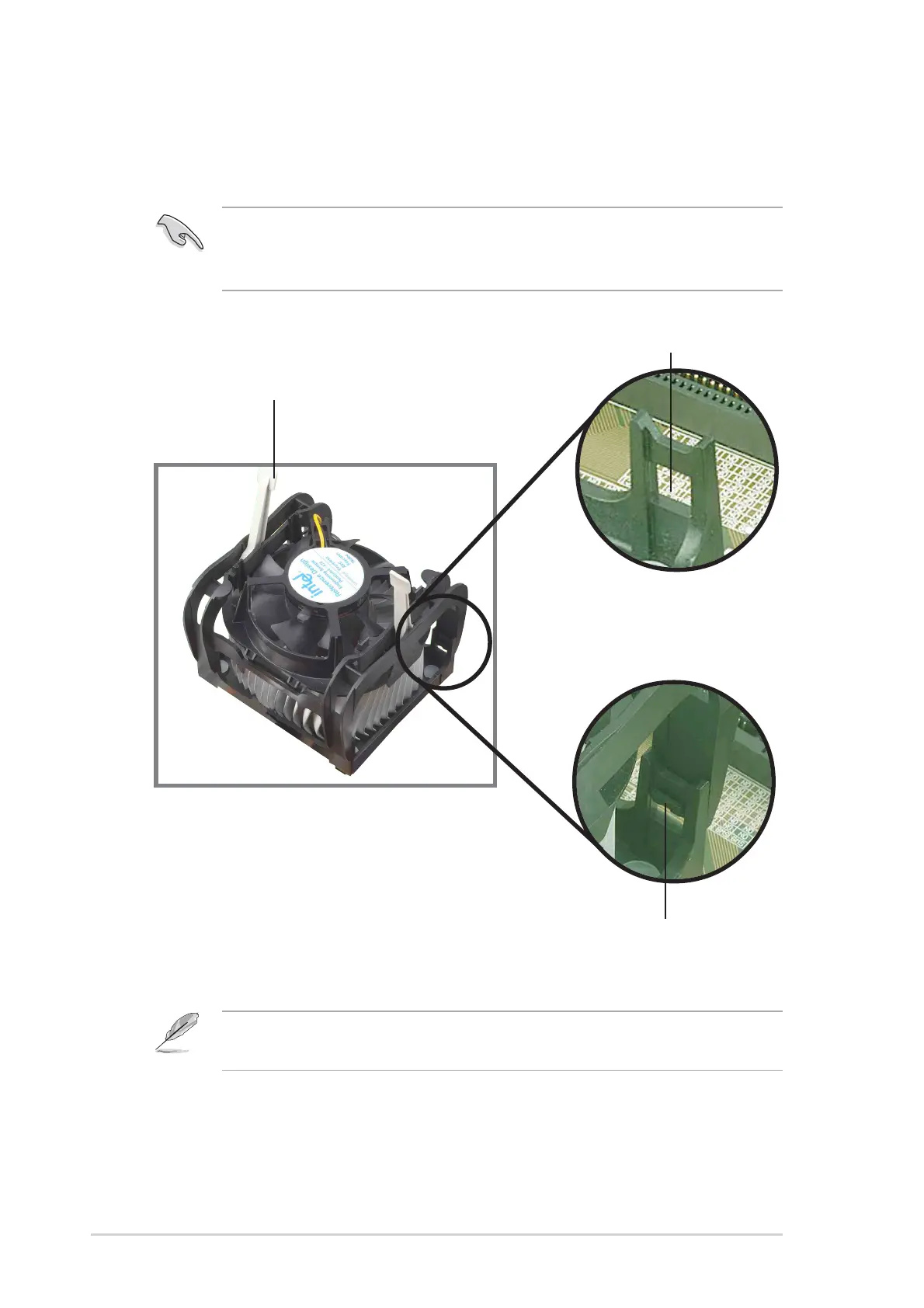

2. Position the fan with the retention mechanism on top of the heatsink.

Align and snap the four hooks of the retention mechanism to the holes

on each corner of the module base.

Retention Hole

Retention Hook Snapped

to the Retention Hole

Retention Lock

Make sure that the fan and retention mechanism assembly perfectly

fits the heatsink and module base, otherwise you cannot snap the

hooks into the holes.

Keep the retention locks lifted upward while fitting the retention

mechanism to the module base.
