2-28 Chapter 2: Hardware information

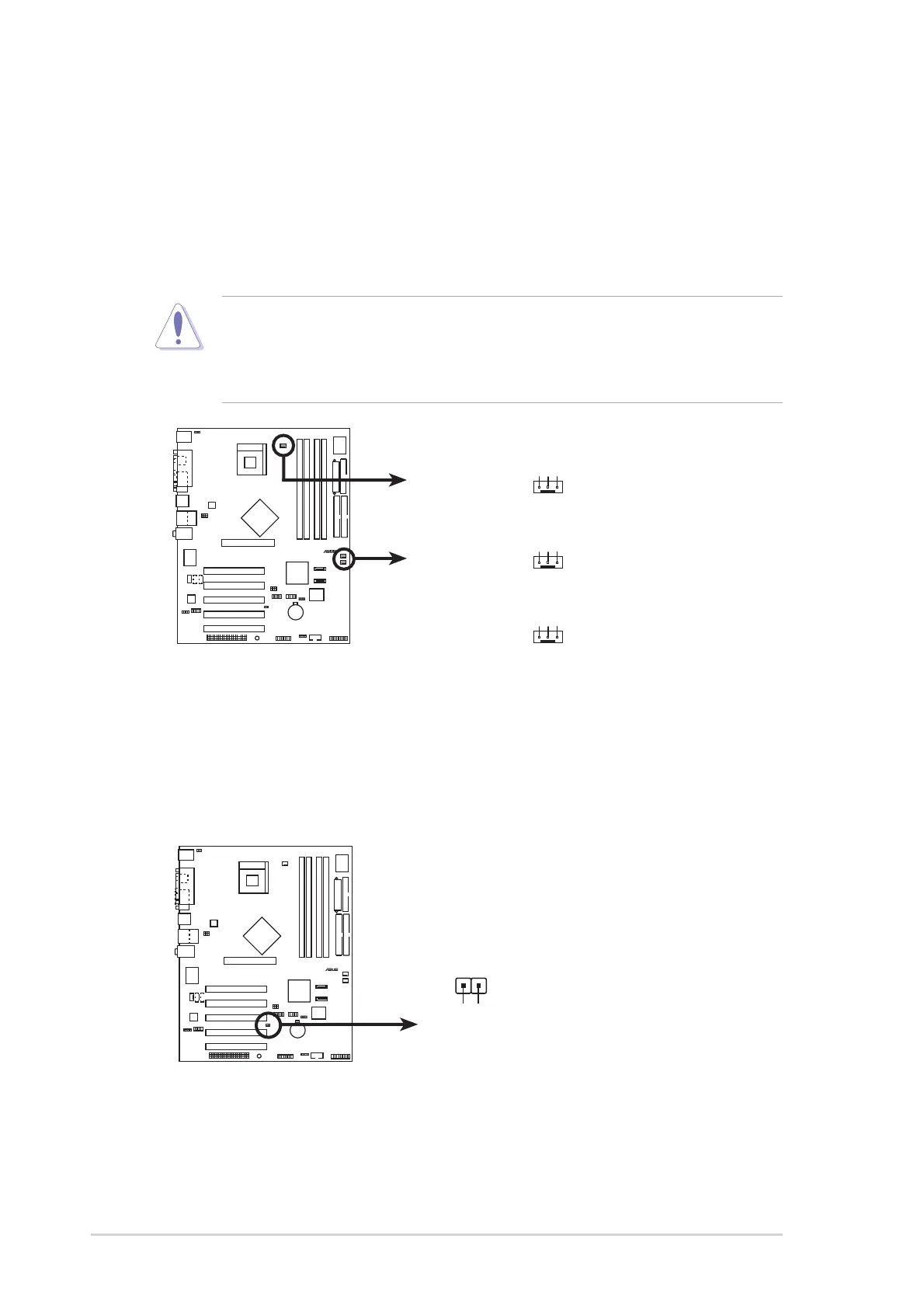

7. CPU, Chassis, and Power Fan Connectors
(3-pin CPU_FAN1, PWR_FAN1, CHA_FAN1)
The fan connectors support cooling fans of 350mA~740mA (8.88W
max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan
cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.
P4P800
®
P4P800 12-Volt Fan Connectors
CPU_FAN1
CHA_FAN1
GND
Rotatio
n
+12V
PWR_FAN1
GND
Rotation
+12V
GND
Rotation
+12V
Do not forget to connect the fan cables to the fan connectors. Lack of
sufficient air flow within the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
8. Power supply thermal connector (2-pin TRPWR1)
If your power supply has a thermal monitoring feature, connect its
thermal sensor cable to this connector.
P4P800
®
P4P800 Power Supply Thermal Connecto
r
TRPWR1
Ground
TRPWR

Asus P4P800 Specifications

General

Chipset	Intel 865PE
CPU Support	Intel Pentium 4, Celeron
Socket	Socket 478
Front Side Bus	800/533/400 MHz
Memory Type	DDR SDRAM
Memory Slots	4 x DIMM
Max Memory	4 GB
AGP Slot	1 x AGP 8X
Expansion Slots	5 x PCI
IDE Ports	2 x ATA100
SATA Ports	2 x SATA 1.5Gb/s
Audio Chipset	ADI AD1985
LAN Chipset	3Com 3C940
LAN Speed	10/100/1000 Mbps
Form Factor	ATX
USB Ports	8 x USB 2.0
Audio Channels	6
