2-30

Chapter 2: Hardware information

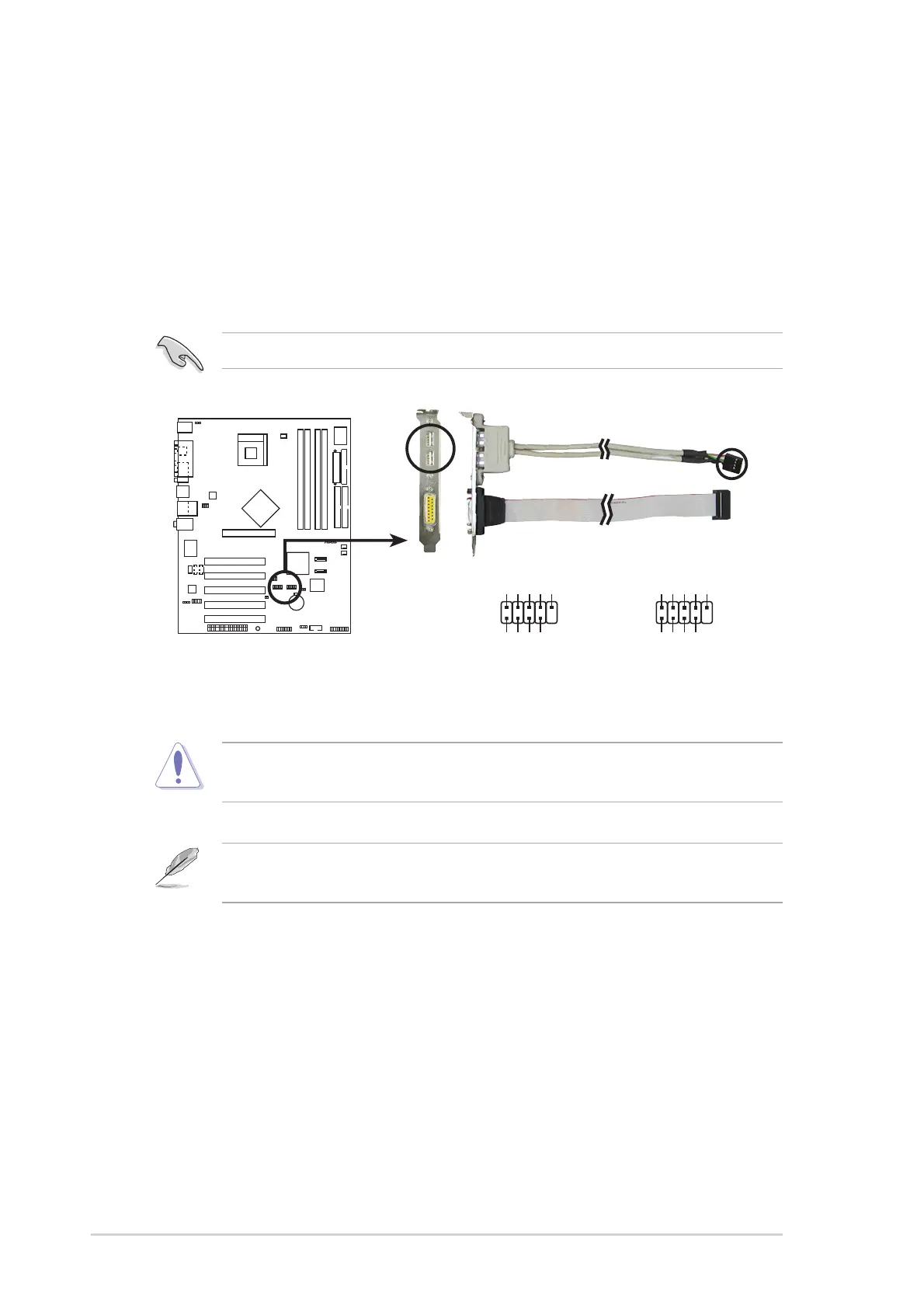

10. USB headers (10-1 pin USB_56, USB_78)

If the USB ports on the rear panel are inadequate, a USB header is

available for additional USB ports. The USB header complies with USB

2.0 specification that supports up to 480 Mbps connection speed. This

speed advantage over the conventional 12 Mbps on USB 1.1 allows

faster Internet connection, interactive gaming, and simultaneous

running of high-speed peripherals.

P4P800

P4P800 USB 2.0 Header

USB56

USB+5V

USB_P6-

USB_P6+

GND

USB+5V

USB_P5-

USB_P5+

GND

USB78

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

You must install the driver before you can use the USB 2.0 capability.

NEVER connect a 1394 cable to the USB_56 or USB_78 connectors.

Doing so will damage the motherboard!

The USB port is an optional item and not included in this motherboard

package.
