Asus P5B-MX WIFI-AP User Manual

1-8 Chapter 1: Product introduction

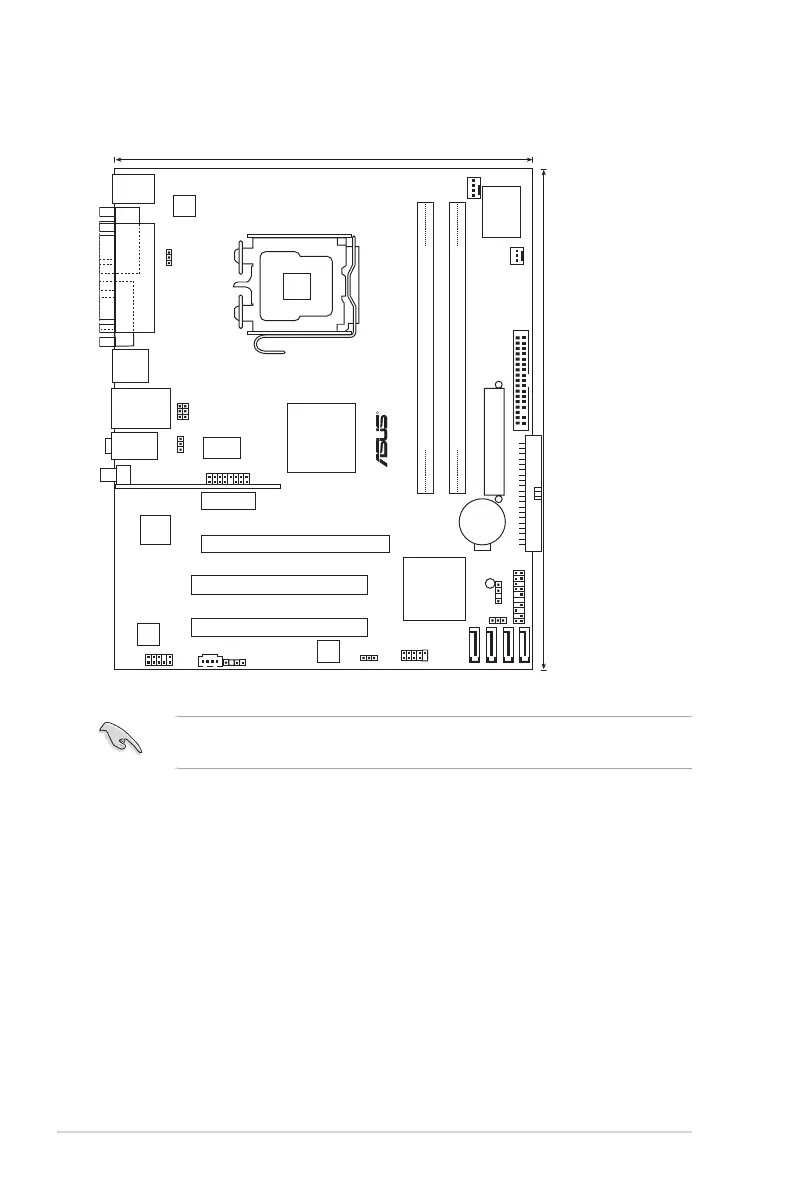

1.5.3 Motherboard layout
20.3cm (8in)
24.5cm (9.6in
)
DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module)
P5B-MX/WiFi-AP
LAN_USB34
AUDIO
LGA775
CPU_FAN
Super I/O
CHA_FAN
FLOPPY
PRI_IDE
SATA1 SATA2 SATA3 SATA4
Intel ICH7
Intel 82946GZ
CLRTC
USB56
WIFI
4Mb
BIOS
SPDIF_OUT
CD
AAFP
PCI2
PCI1
PCIEX16
PCIEX1_1
SB_PWR
ALC883
USBPW56
USBPW78
USBPW1-4
KBPWR
CR2032 3V
Lithium Cell
CMOS Power
ATX12V
PARALLEL
POR
T
VGA COM1
PS/2KBMS
T: Mouse
B: Keyboard
USB12
EATXPWR
R
Attansic
L1
ICS 9L PRS552
PANEL
CHASSIS
Refer to section 1.10 Connectors for more information about rear panel
connectors and internal connectors.

Asus P5B-MX WIFI-AP Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
Number of SATA connectors	4
Special features	ASUS WiFi-AP Solo ASUS CrashFree BIOS 2 ASUS EZ Flash ASUS Q-fan ASUS MyLogo 2
Manageability features	WfM 2.0, DMI, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti Virus (OEM)
Graphics card	GMA 3000
Maximum graphics card memory	256 MB
Networking features	Gigabit Ethernet, WLAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	203 mm
Width	245 mm
