1.7 System memory
1.7.1 Overview
The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

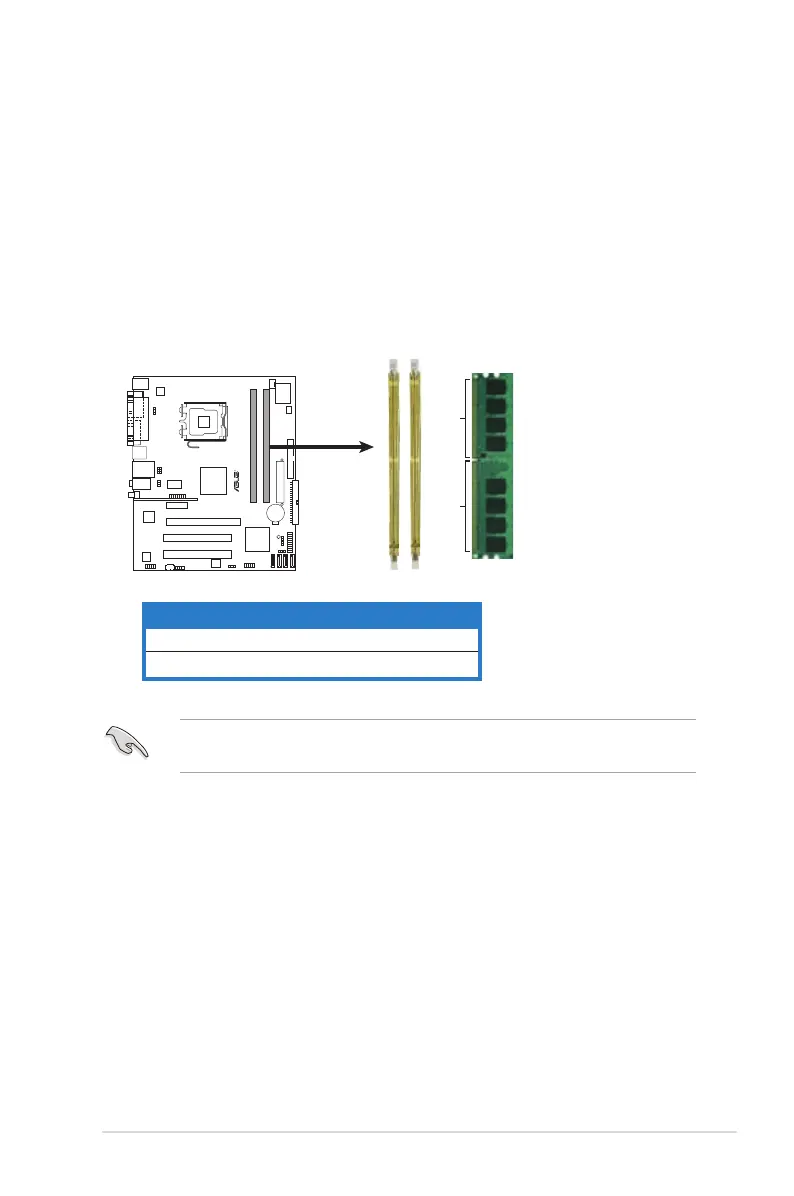

The gure illustrates the location of the DDR2 DIMM sockets:
1.7.2 Memory congurations
You may install 256 MB, 512 MB, 1 GB, 2 GB and 4 GB unbuffered non-ECC
DDR2 DIMMs into the DIMM sockets.
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
P5B-MX/WiFi-AP
R
P5B-MX/WiFi-AP 240-pin DDR2 DIMM Sockets
128 Pins
112 Pins
DIMM_B1
DIMM_A1
Install a memory module in DIMM_A1 slot to support the Intel
®
Quiet System
Technology and for optimum performance.

Asus P5B-MX WIFI-AP Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
Number of SATA connectors	4
Special features	ASUS WiFi-AP Solo ASUS CrashFree BIOS 2 ASUS EZ Flash ASUS Q-fan ASUS MyLogo 2
Manageability features	WfM 2.0, DMI, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti Virus (OEM)
Graphics card	GMA 3000
Maximum graphics card memory	256 MB
Networking features	Gigabit Ethernet, WLAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	203 mm
Width	245 mm
