Asus P5B-MX WIFI-AP User Manual

1-30 Chapter 1: Product introduction

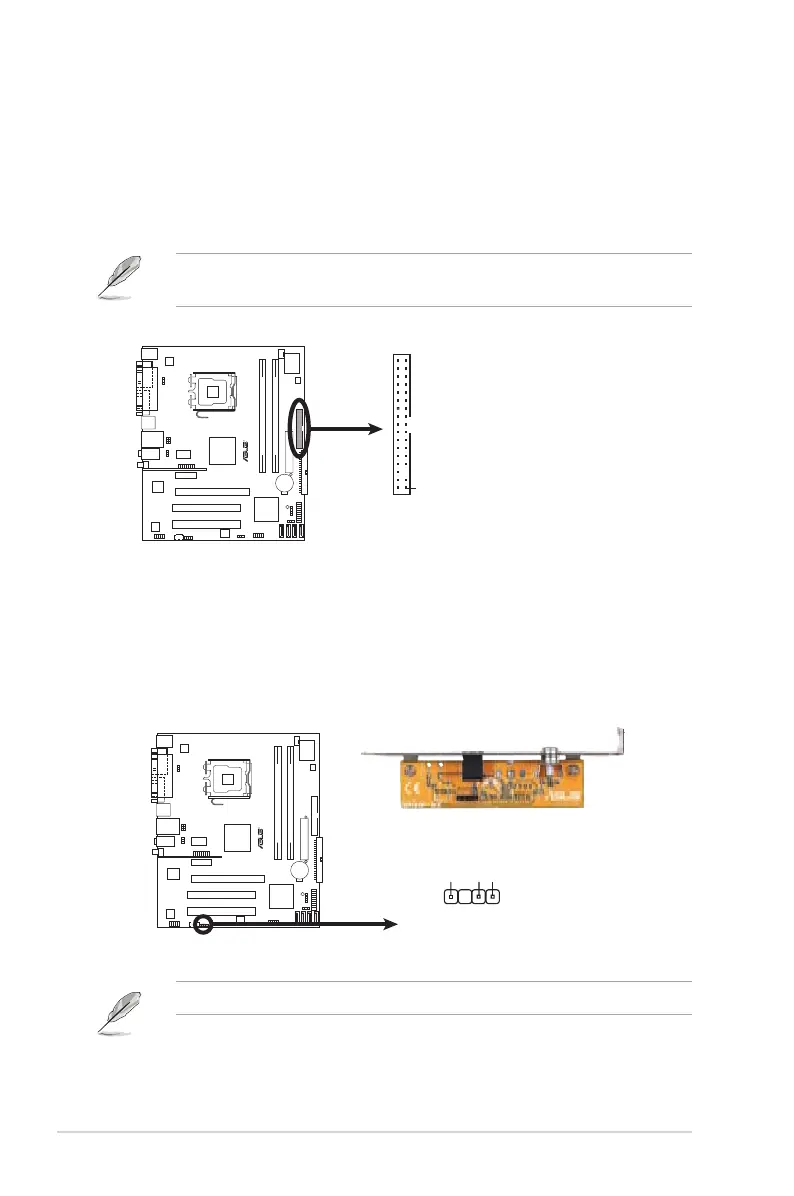

1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.
P5B-MX/WiFi-AP
R
P5B-MX/WiFi-AP Floppy Disk Drive Connector
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY
2. Digital Audio connector (4-1 pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other
end to the S/PDIF module.
The S/PDIF out module is purchased separately.
P5B-MX/WiFi-AP
R
P5B-MX/WiFi-AP Digital Audio Connector
+5V
SPDIFOUT GND
SPDIF_OUT

Asus P5B-MX WIFI-AP Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
Number of SATA connectors	4
Special features	ASUS WiFi-AP Solo ASUS CrashFree BIOS 2 ASUS EZ Flash ASUS Q-fan ASUS MyLogo 2
Manageability features	WfM 2.0, DMI, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti Virus (OEM)
Graphics card	GMA 3000
Maximum graphics card memory	256 MB
Networking features	Gigabit Ethernet, WLAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	203 mm
Width	245 mm
