Asus P5B-MX WIFI-AP User Manual

1-28 Chapter 1: Product introduction
1.10 Connectors

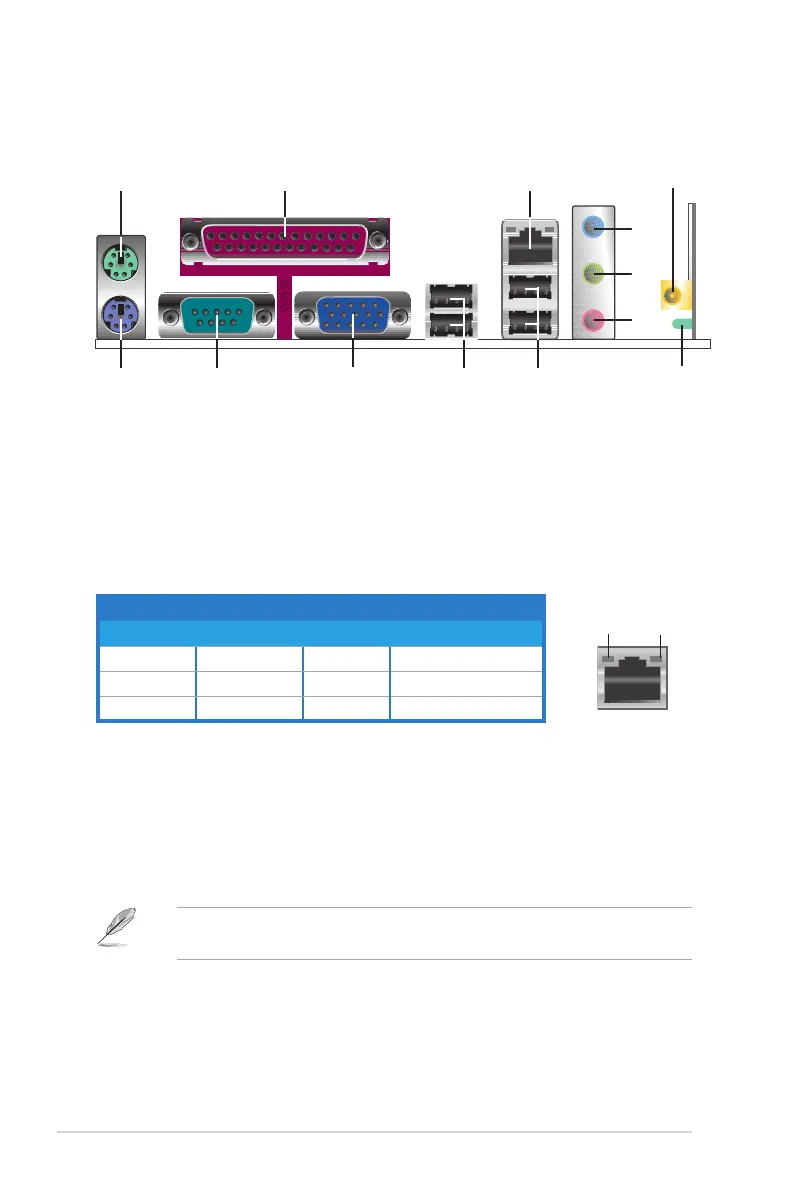

1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. Supported by Realtek
®
Gigabit LAN controller, this port
allows Gigabit connection to a Local Area Network (LAN) through a network
hub. Refer to the table below for the LAN port LED indications.
Activity/Link Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
YELLOW Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
4. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime).
This port connects a headphone or a speaker. In
4-channel and 6-channel conguration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink).
This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in
2, 4, or 6-channel conguration.
1
13
4
5
6
9
2 3
10
12
11
7
8

Asus P5B-MX WIFI-AP Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
Number of SATA connectors	4
Special features	ASUS WiFi-AP Solo ASUS CrashFree BIOS 2 ASUS EZ Flash ASUS Q-fan ASUS MyLogo 2
Manageability features	WfM 2.0, DMI, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti Virus (OEM)
Graphics card	GMA 3000
Maximum graphics card memory	256 MB
Networking features	Gigabit Ethernet, WLAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	203 mm
Width	245 mm
