1-12 Chapter 1: Product introduction
3. Lift the load lever in the direction of
the arrow to a 135º angle.
2. Press the load lever with your thumb (A), then move it to the left (B) until it is
released from the retention tab.
Retention tab
Load lever
This side of the socket box
should face you.
PnP cap
A
B
To prevent damage to the socket pins, do not remove the PnP cap unless you
are installing a CPU.

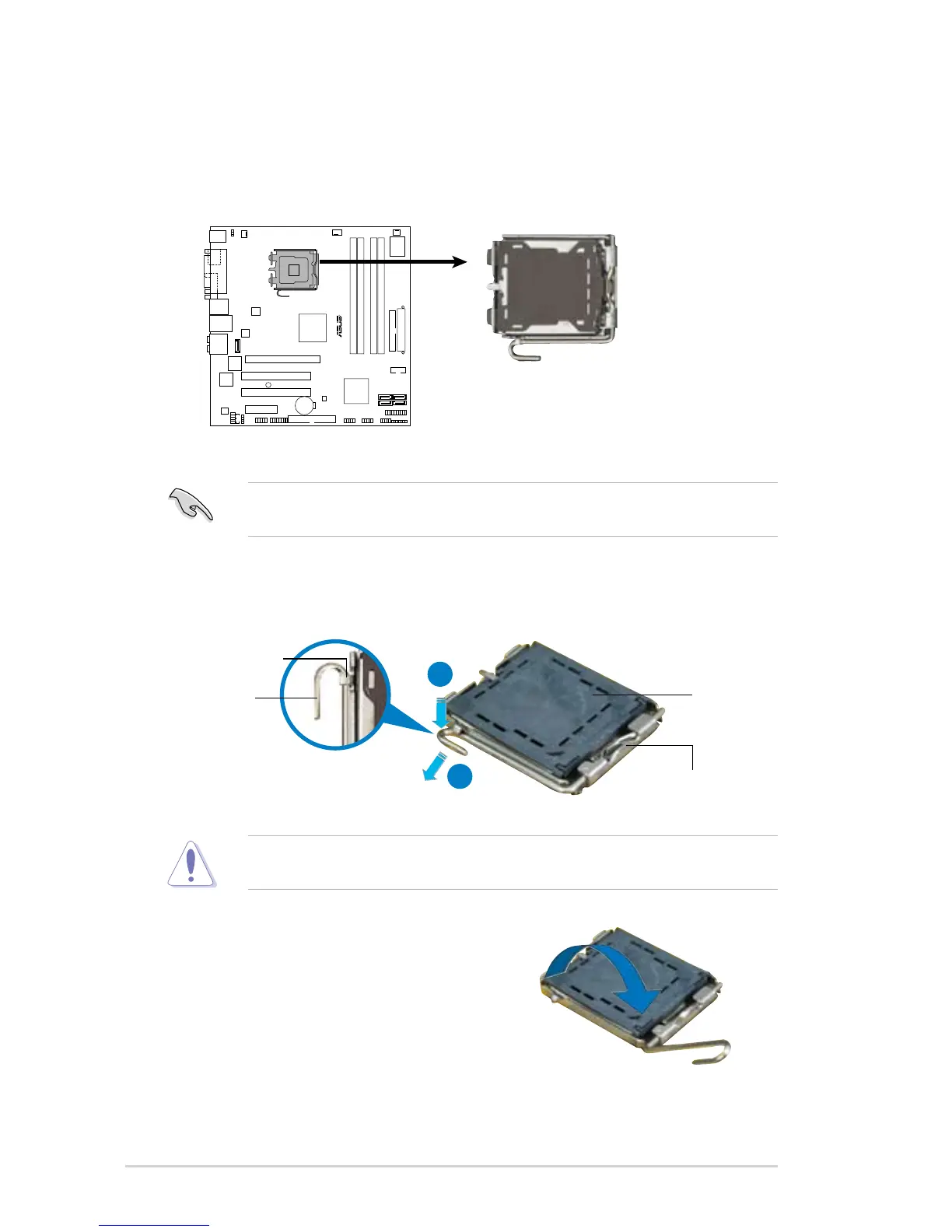

1.6.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
Before installing the CPU, make sure that the cam box is facing towards you
and the load lever is on your left.
R
P5B-VM
P5B-VM CPU Socket 775

Asus P5B-VM Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Maximum number of SMP processors	1
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	5
Special features	- ASUS AI Gear - ASUS AI Nap - ASUS Advanced Q-Fan - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS C.P.R. - ASUS MyLogo 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL
Controller interface type	JMicron JMB363 PATA & SATA
PS/2 ports quantity	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows
Bundled software	ASUS PC Probe II ASUS Update Anti-Virus
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit
RAID levels	0, 1, JBOD
Parallel processing technology support	Not supported

Weight and Dimensions

Width	245 mm
