2-12 Chapter 2: BIOS setup
2.2.2 Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Advanced For changing the advanced system settings
Power For changing the advanced power management (APM)
conguration
Boot For changing the system boot conguration
Tools For setting EZ Flash 2 and O.C. Prole.
Exit For selecting the exit options and loading default
settings

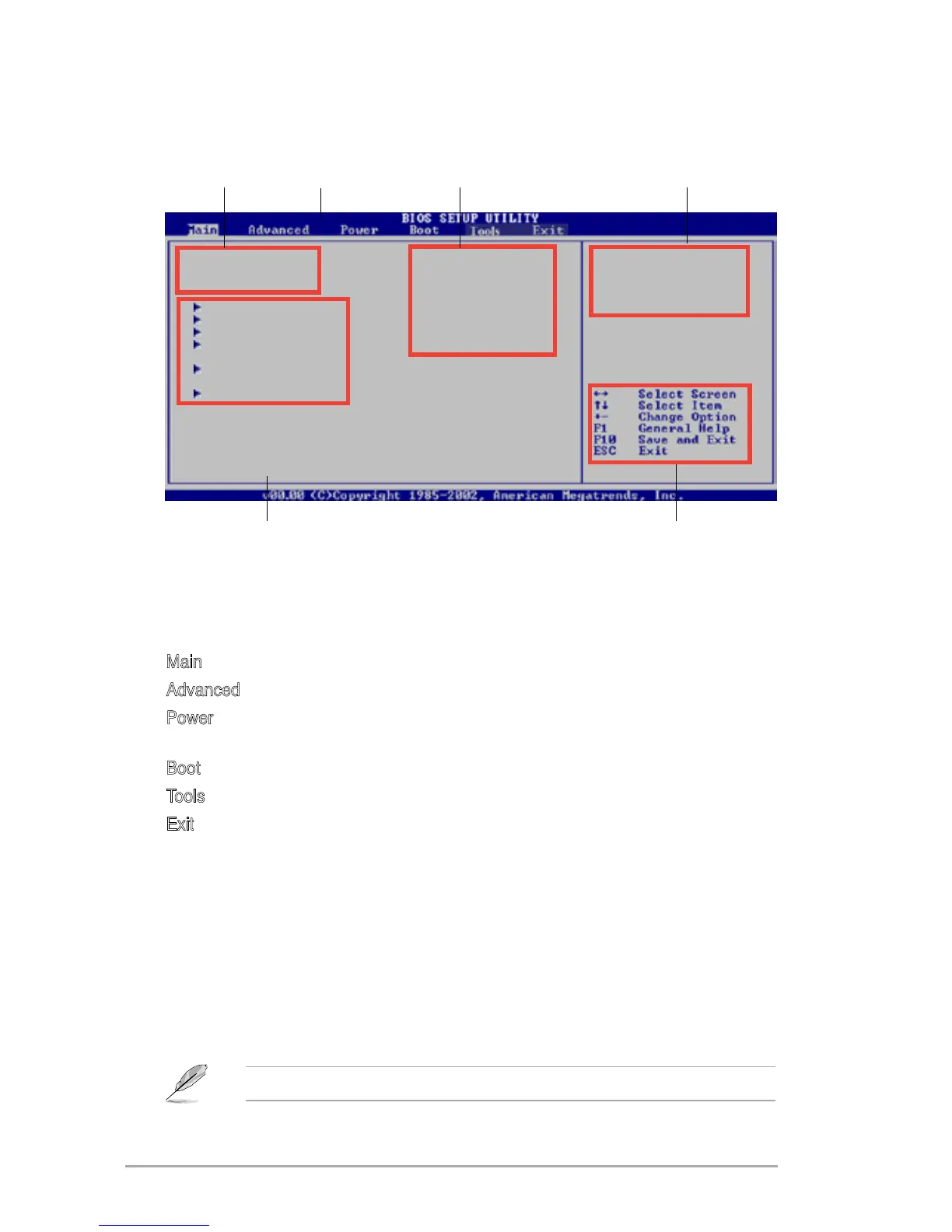

2.2.1 BIOS menu screen
To select an item on the menu bar, press the right or left arrow key on the keyboard
until the desired item is highlighted.
Some of the navigation keys differ from one screen to another.
Navigation keysSub-menu items
2.2.3 Navigation keys
At the bottom right corner of a menu screen are the navigation keys for that
particular menu. Use the navigation keys to select items in the menu and change
the settings.
General help
Menu bar Conguration eldsMenu items
System Time [11:51:19]
System Date [Mon 05/15/2006]
Legacy Diskette A [1.44M, 3.5 in]
SATA 1 :[Not Detected
SATA 2 :[Not Detected]
SATA 3 :[Not Detected]
SATA 4 :[Not Detected]
IDE Conguration
System Information
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system time.

Asus P5B-VM Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Maximum number of SMP processors	1
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	5
Special features	- ASUS AI Gear - ASUS AI Nap - ASUS Advanced Q-Fan - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS C.P.R. - ASUS MyLogo 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL
Controller interface type	JMicron JMB363 PATA & SATA
PS/2 ports quantity	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows
Bundled software	ASUS PC Probe II ASUS Update Anti-Virus
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit
RAID levels	0, 1, JBOD
Parallel processing technology support	Not supported

Weight and Dimensions

Width	245 mm
