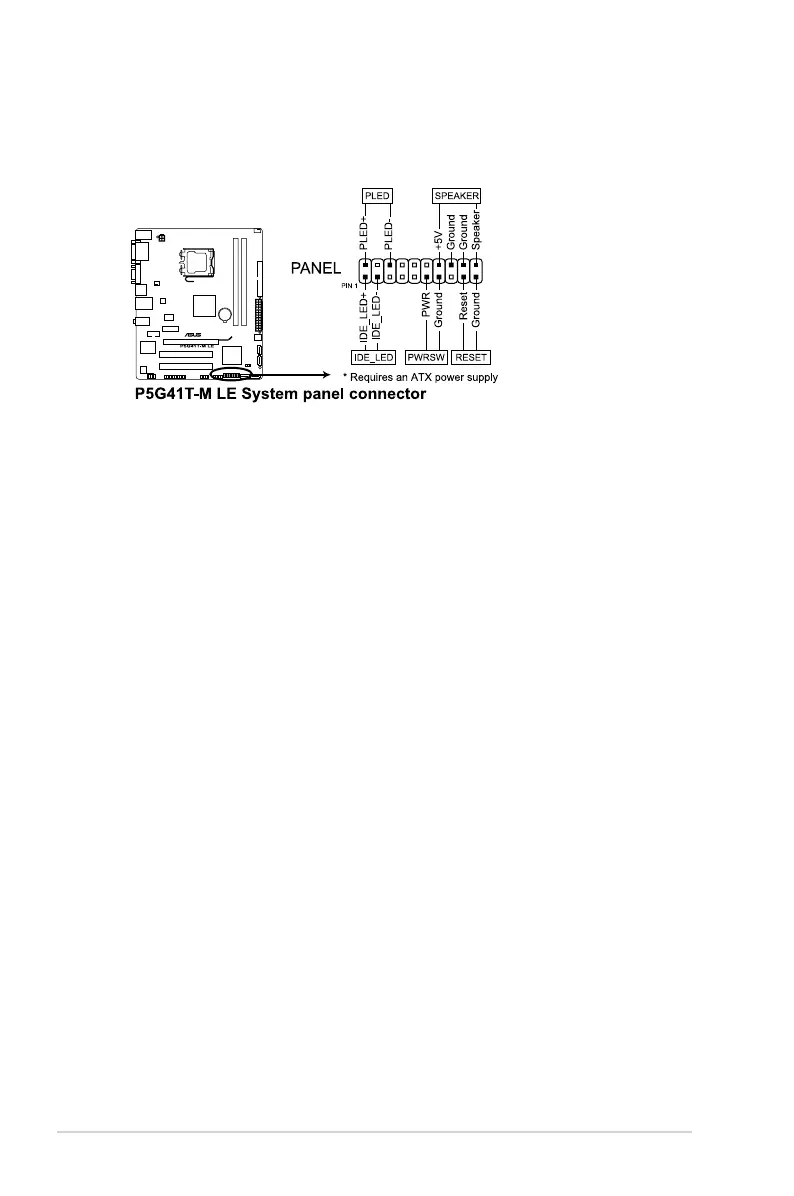

8. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns
the system on or puts the system in sleep or soft-off mode depending on the BIOS
settings. Pressing the power switch for more than four seconds while the system is ON
turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.

Asus P5G41T-M LE Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Maximum Memory	8GB
Storage Interfaces	4 x SATA 3Gb/s
LAN	10/100/1000Mbps
Audio Chipset	Realtek ALC887
Video Outputs	1 x VGA
PS/2 Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse
Audio Ports	3 x Audio Jacks
Memory Slots	2 x DIMM
Memory Standard	DDR3 1333/1066/800 MHz
Expansion Slots	1 x PCIe x16, 2 x PCI
USB Ports	8 x USB 2.0 (4 at back panel, 4 at mid-board)
Audio	6-channel HD Audio
LAN Chipset	Realtek RTL8111E
Power Connector	24-pin ATX, 4-pin ATX 12V
