2-2 Chapter 2: Hardware information
P5LD2-X/GBL
2.2 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to
ensure that the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.
Do not overtighten the screws! Doing so can damage the motherboard.
2.2.1 Placement direction
When installing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.
2.2.2 Screw holes

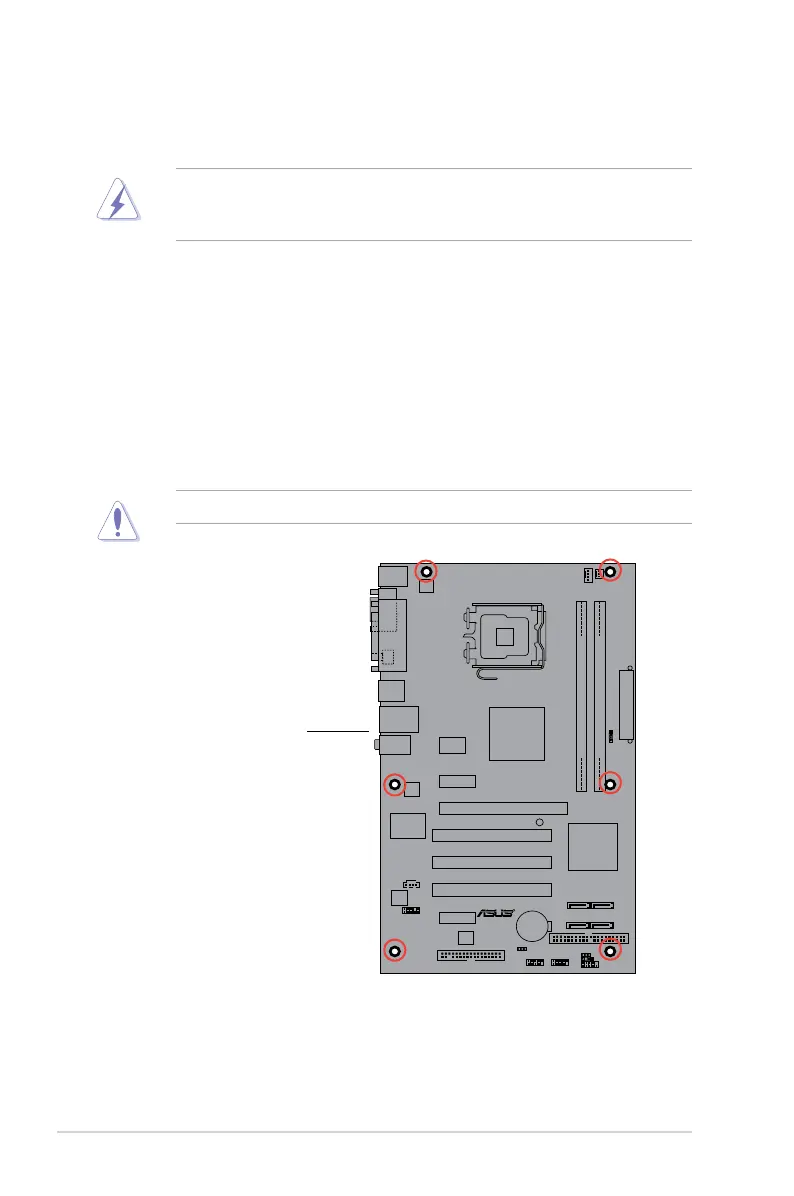

Place six (6) screws into the holes indicated by circles to secure the motherboard
to the chassis.
Place this side towards
the rear of the chassis

Asus P5LD2-X GBL Specifications

General

Form Factor	ATX
CPU Socket	LGA 775
Front Side Bus	1066/800/533 MHz
Memory Type	DDR2
Maximum Memory	4 GB
Memory Slots	2 x DIMM
Memory Standard	DDR2 667/533/400
Supported CPU	Intel Pentium 4, Pentium D, Celeron D
Expansion Slots	1 x PCIe x16, 3 x PCI-E x1, 3 x PCI
Storage Interfaces	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Audio	Realtek ALC883, 6-Channel
LAN	Gigabit LAN
